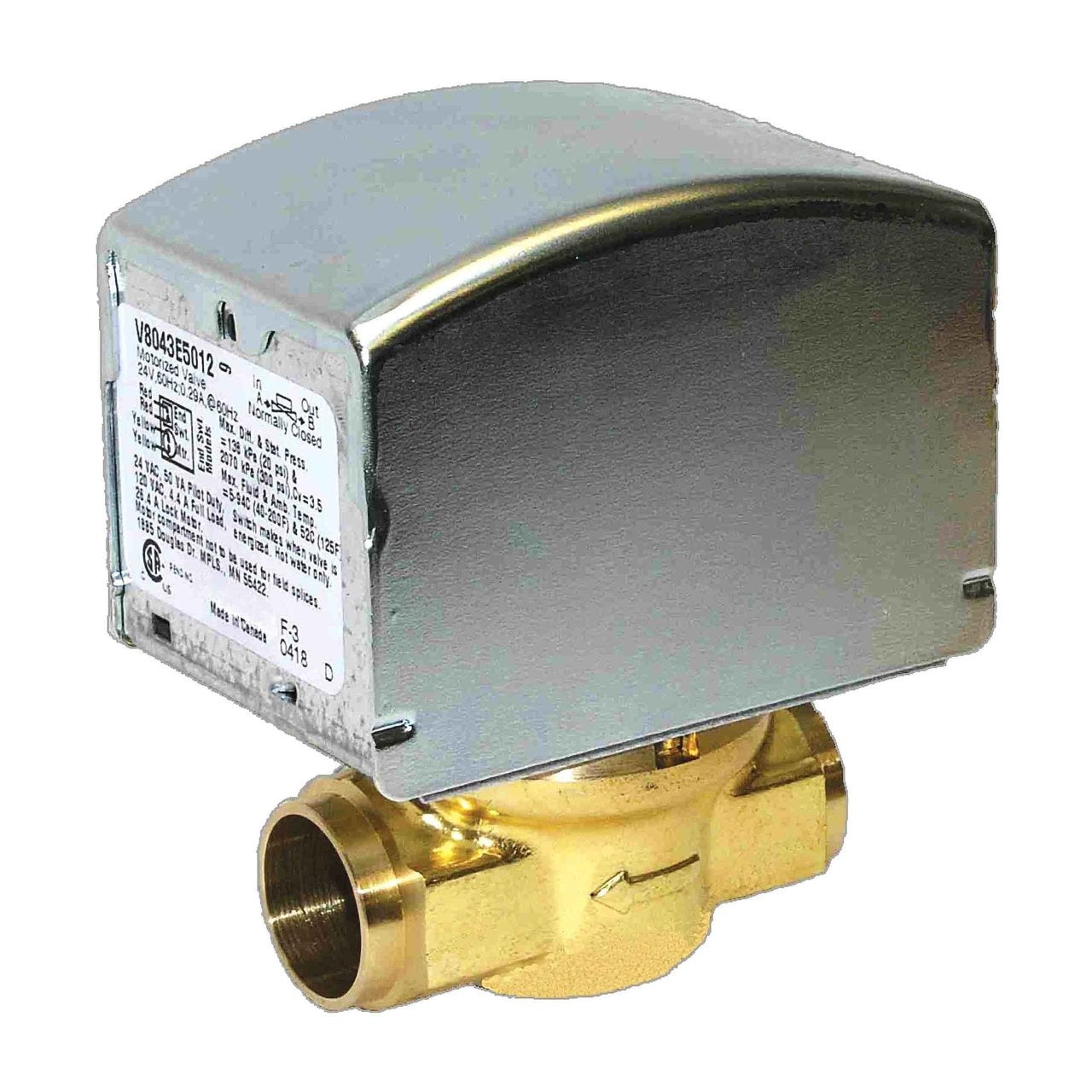

Resideo V8043A5029/U 24 Vac 3/4 in Sweat N.C. QuickFit Zone Valve (3/4 in)

Brand: RESIDEO
SKU: V8043A5029/U
Availability: In Stock

Ships same day if ordered by 12 pm
$175.47
$175.47
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Resideo V8043A5029/U is a 24 Vac, 3/4 inch sweat QuickFit normally closed zone valve with a motorized actuator and valve assembly that controls hot water flow in hydronic systems. It provides two-position, straight-through control for radiators, convectors, baseboards, and in-floor radiant coils and is rated for high static pressures. The unit includes an end switch enclosure and a manual opener for local operation.

  • Motorized actuator and valve assembly for two-position on/off control at 24 Vac
  • QuickFit 3/4 in sweat connection; two-position straight-through valve pattern
  • Handles supply water up to 300 psi static pressure; includes end switch enclosure and manual opener

Product Highlights

24 Vac two-position QuickFit zone valve, 3/4 in sweat connection, two-position straight-through control, includes end switch enclosure and manual opener; 300 psi static pressure rating.

Product Information

Standard Information

  • Brand: RESIDEO
  • Manufacturer Part Number: V8043A5029/U
Technical Specifications
Brand
Resideo
MPN
V8043A5029/U
Series
5000 Series
Application
Hydronic control
Connection Type
Sweat
Size
3/4 in
Supply Voltage
24 Vac
Power Consumption
7.7 VA
Current Draw
0.32 A
Flow Coefficient (Cv)
3.5 Cv
Static Pressure Rating
300 psi (2068 kPa)
Maximum Differential Pressure (Close-off)
20 psi (138 kPa)
Fluid Temperature Range
50 F to 200 F (10 C to 93 C)
Ambient Operating Temperature (Max)
125 F (52 C)
Operating Humidity Range
5% to 95% relative humidity, non-condensing
Includes
End switch enclosure; Manual opener
Valve Body Material
Brass
Valve Seat Material
Brass
Valve Stem Material
Stainless steel
Valve Plug/Ball Material
Buna-N (NBR) rubber
Packing Material
EPDM rubber
Actuation
Motorized, two position
Valve Action / Fail-Safe
Spring return (de-energized position: normally closed)
Timing (Nominal Open)
30 sec (nominal) / 15 sec listed in some sources
Electrical Connections
18 in. leads (457 mm)
Approvals / Certifications
CSA C/US: File 1322; UL listed (where specified)
Pattern
Two-way, straight-through
Control Signal
Two-position
Dimensions (in)
4.37 in x 3.54 in x 2.36 in
Dimensions (mm)
111 mm x 90 mm x 60 mm
