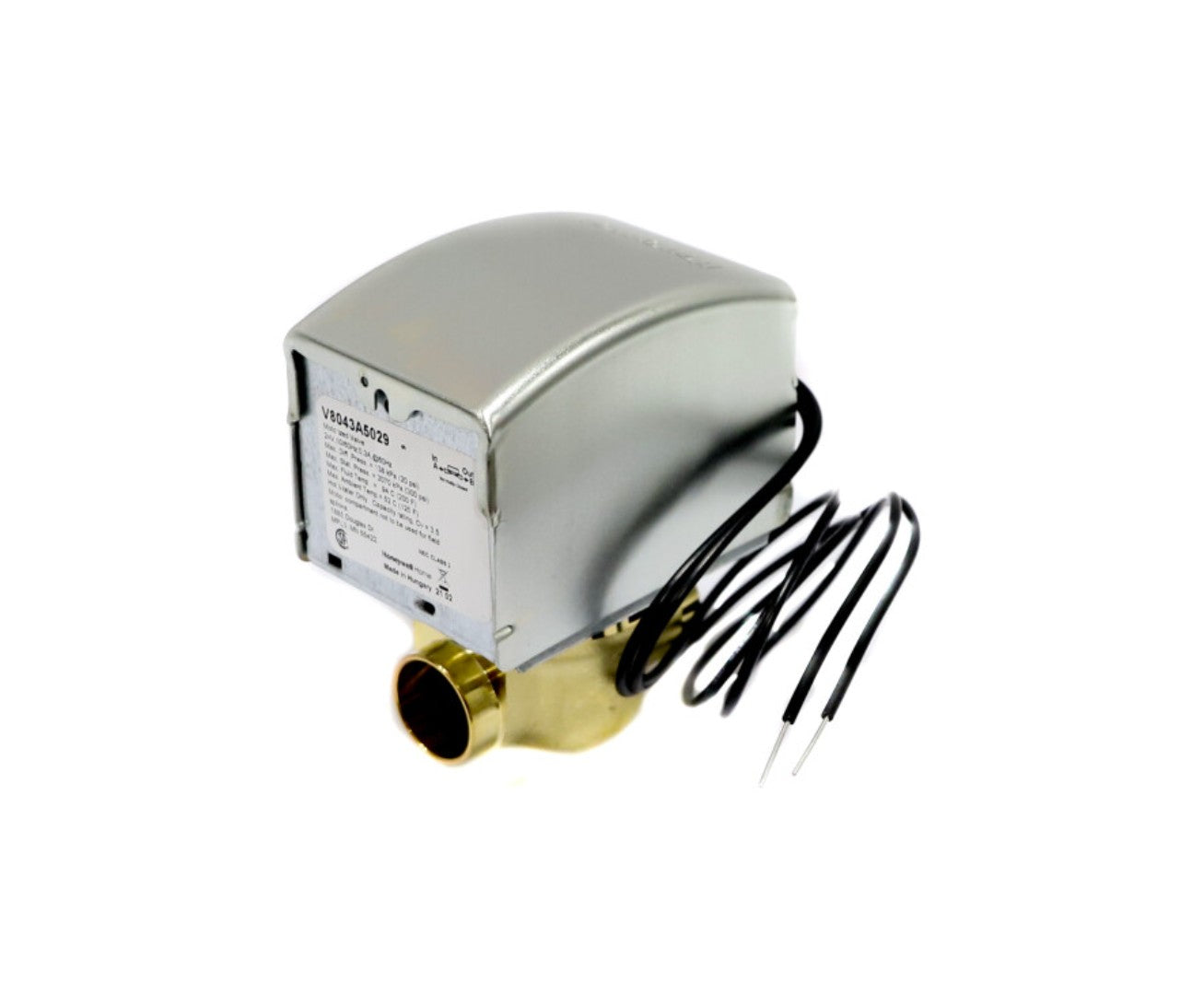

Resideo V8043A5029 3/4 inches swt n/c 3.5cv zone valve 24v

Product Description

The Resideo V8043A5029 is a 3/4" Normally Closed Zone Valve designed for commercial and industrial HVAC systems. Operating at 24V with a 3.5CV flow rate, this valve controls water flow in heating and cooling systems. It features a pressure range of 0-150 psi and a temperature range of 32-180°F, consuming 12VA. It is suitable for radiant floor heating, snow melting, and process control systems, ensuring efficient temperature regulation.

• Controls water flow in heating and cooling systems
• Ensures efficient and precise temperature regulation
• Prevents water damage by isolating specific zones when needed

Product Highlights

Durable 3/4" Normally Closed Zone Valve for HVAC systems.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: V8043A5029

Technical Specifications

• Input Voltage: 24V
• Configuration: Normally Closed (N/C)
• Flow Coefficient (Cv): 3.5
• Valve Type: Zone Valve
• Operating Pressure Range: 0-150 psi
• Operating Temperature Range: 32-180°F
• Power Consumption: 12VA
• Maximum Differential Pressure: 50 psi
• Series: 5000
• Connection Type: 3/4" Sweat
• Close-Off Pressure: 20 PSI
• Static Pressure: 300 PSI
• Certifications: CSA C/US: File 1322
• Body Material: Brass
• Ball/Plug Material: Buna-N (NBR) Rubber
• Seat Material: Brass
• Stem Material: Stainless Steel
• Frequency: 60Hz
