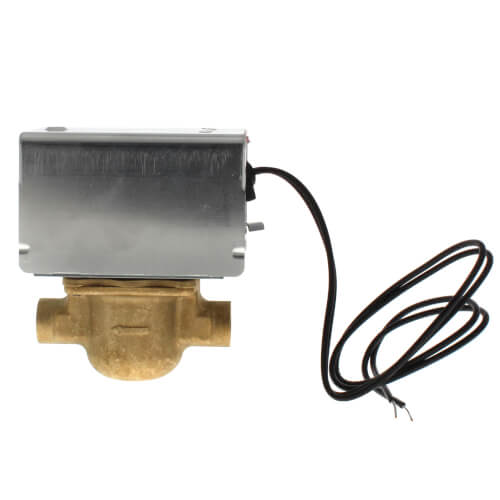

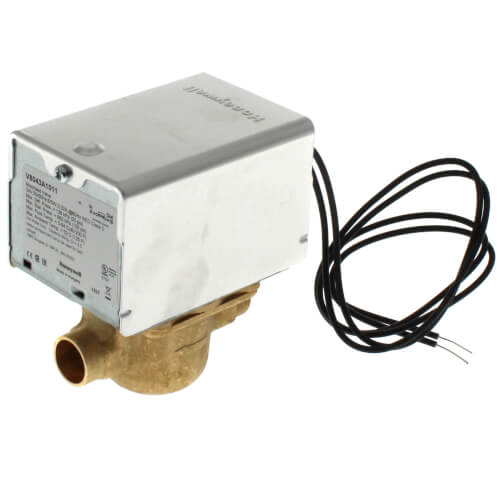

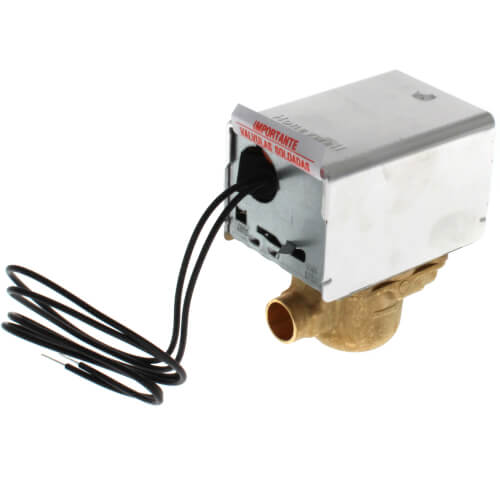

Resideo V8043A1011 1/2 Sweat Zone Valve (18 Leads, No End Switch)

Product Description

The Resideo V8043A1011 is a 1/2 inch sweat zone valve designed for hydronic systems. This valve is ideal for controlling the flow of hot water in heating applications. It features a normally closed position, helping to maintain efficient system performance.

• Operates at 24 volts low voltage
• Flow capacity of 3.5 CV
• Manual opener for power failure situations

Product Highlights

The V8043A1011 valve is suitable for use in systems without dissolved oxygen. Its compact size allows for easy installation and maintenance without disrupting plumbing line connections.

Product Information

Standard Information

• Brand: Resideo
• MPN: V8043A1011

Technical Specifications

• Pipe Size: 1/2 inch
• Voltage: 24 Vac
• Flow Capacity: 3.5 CV
• De-energized Position: Normally Closed
• Maximum Close-off Pressure: 20 psi
• Temperature Range: 50°F to 200°F
• Electrical Connections: 18-inch leads
• Product Dimensions: 4 inches high x 3.5 inches wide x 2.375 inches deep
