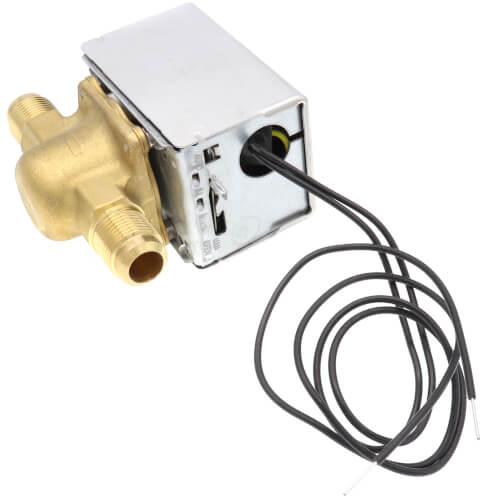

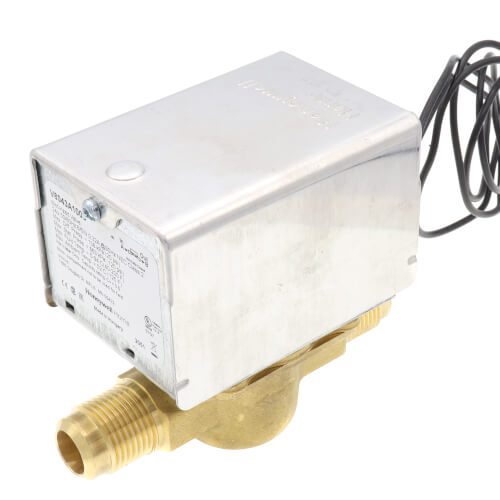

Resideo V8043A1003 Zone Valve 24V 1/2 Inch Flare 3.5 Cv NC

Product Description

The Resideo V8043A1003 is a robust 1/2 inch flare 24V normally closed zone valve, engineered to regulate the flow in hydronic heating and cooling systems. This valve from the respected brand Resideo Braukmann is crafted using durable brass with a stainless steel stem, ensuring reliable, long-lasting performance. It is especially suitable for commercial and industrial settings, including schools, hospitals, and office buildings, but equally effective in residential applications.

• CSA certified and adheres to UL standards for safety and reliability.
• Equipped with a manual override and a normally closed actuator for exceptional control.
• Backed by a one-year warranty, highlighting its durability and manufacturer support.

Product Highlights

This valve facilitates precise management of water flow, leveraging its straightforward installation design that does not require disassembly during setup. With its compact structure, it fits seamlessly into various plumbing configurations.

Product Information

Standard Information

• Brand: Resideo Braukmann
• MPN: V8043A1003

Technical Specifications

• Connection Type: 1/2 inch flare
• Capacity: 3.5 Cv
• Body Pattern: Two-way, straight-through
• De-Energized Position: Normally closed
• Max Close-off Pressure: 20 psi
• Fluid Temperature Range: 50 to 200 degrees Fahrenheit
• Electrical Connections: 18 inch leads
• Power Consumption: 7.7 VA
