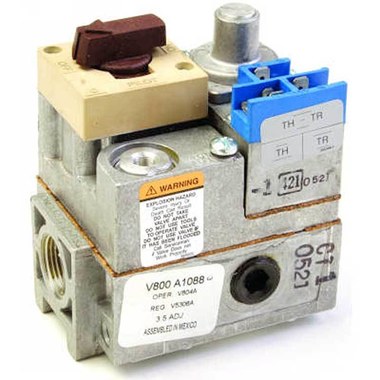

RESIDEO V800A1088/U Gas Valve V800 Standing Pilot Standard Opening 24V 3/4 x 3/4 Inch NPT

Product Description

RESIDEO V800A1088/U Gas Valve is a reliable option for industrial and automation needs. It operates at twenty-four volts and offers a three-quarters inch by three-quarters inch NPT connection, making it compatible with many systems. This valve is effective in controlling gas flow for heating and industrial applications.

• Wide temperature range from thirty-two to one hundred seventy-five degrees Fahrenheit.
• Handles up to half a pounds per square inch pressure.
• Designed for easy installation and service.

Product Highlights

This gas valve ensures smooth operation in various environments while providing durability and reliability.

Product Information

Standard Information

• Brand: RESIDEO
• MPN: V800A1088/U

Technical Specifications

• Item Number: V800A1088/U
• Voltage: 24 VAC
• Inlet Connection Size: 3/4 in
• Outlet Connection Size: 3/4 in
• Weight: 3 lbs
• Pressure Rating: 3.5 kPa
• Height: 4.75 in
• Length: 3.19 in
• Width: 4.06 in
