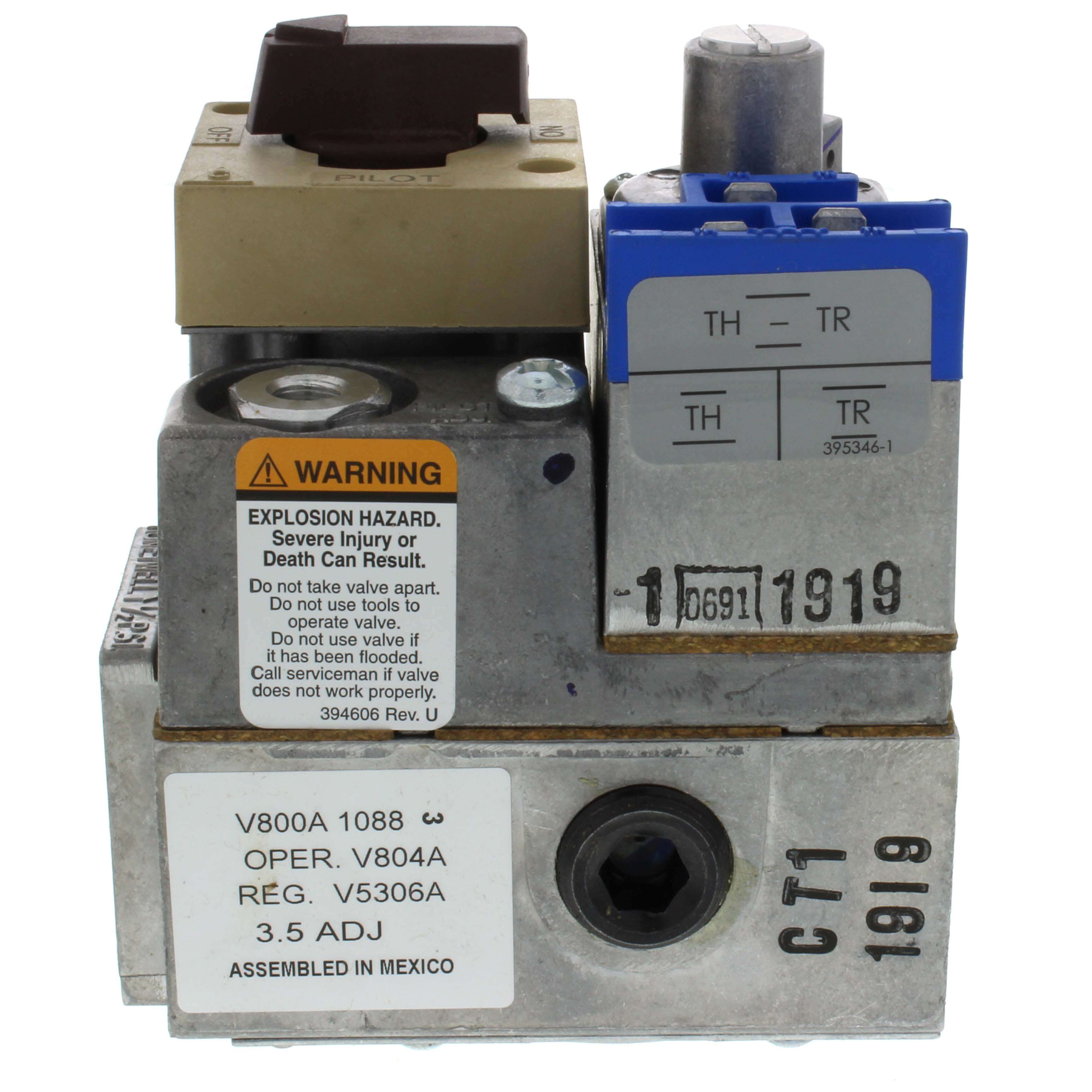

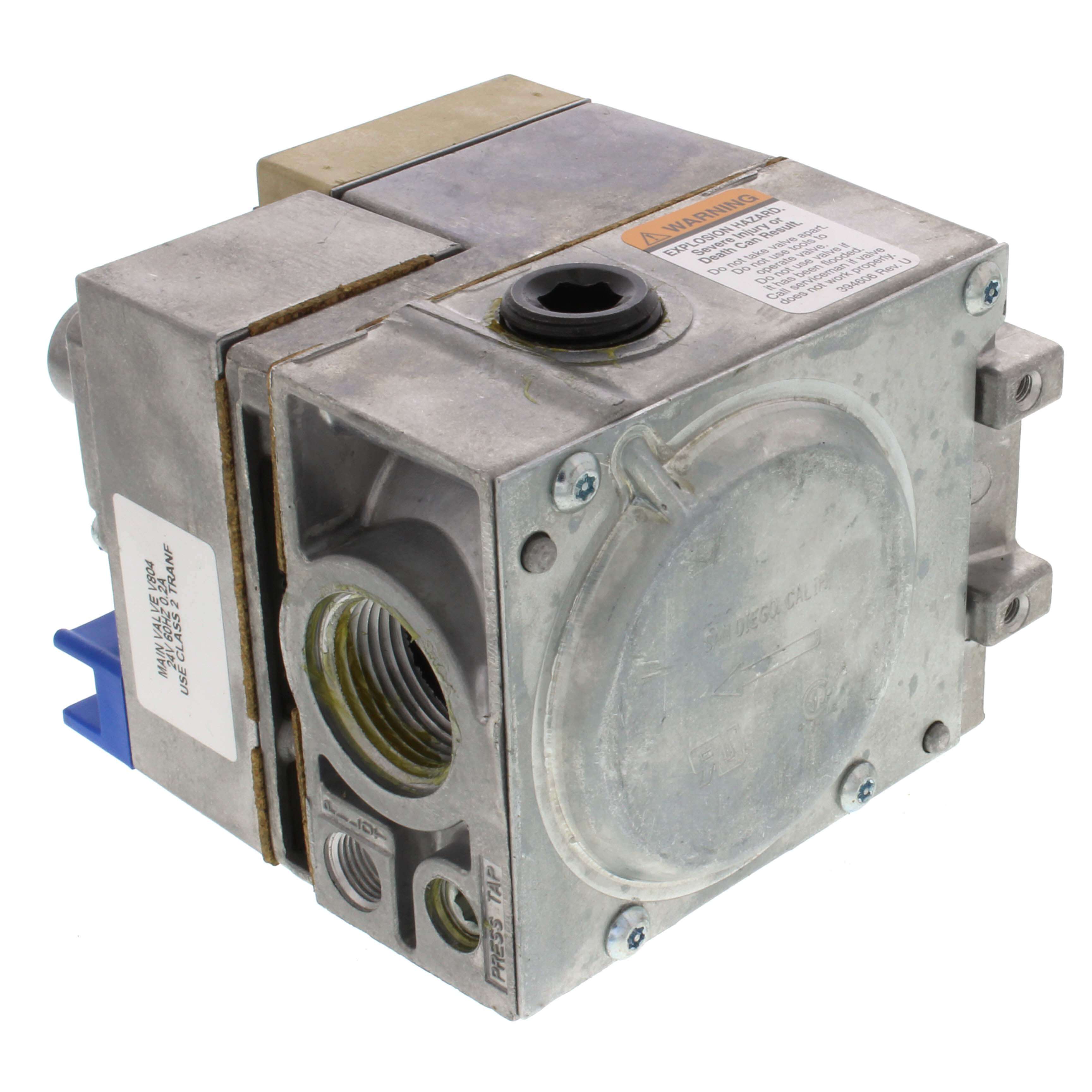

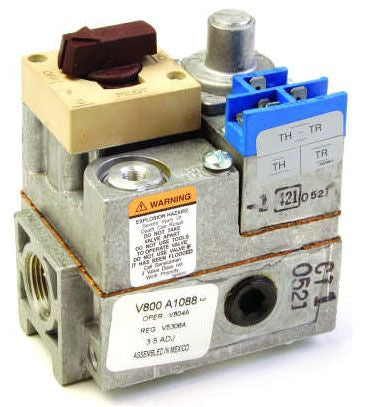

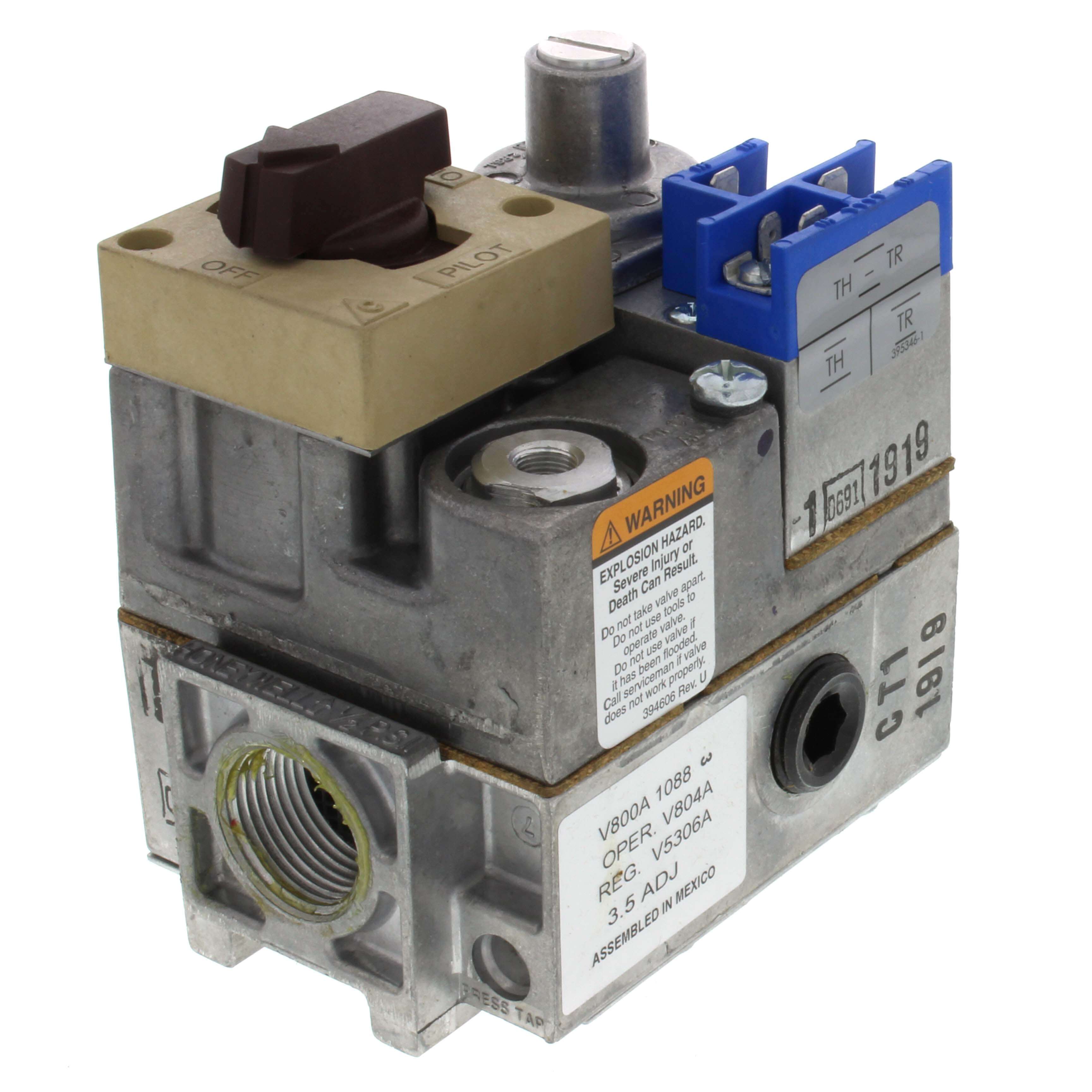

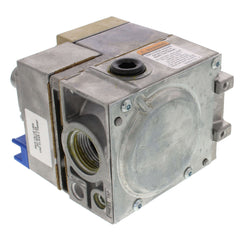

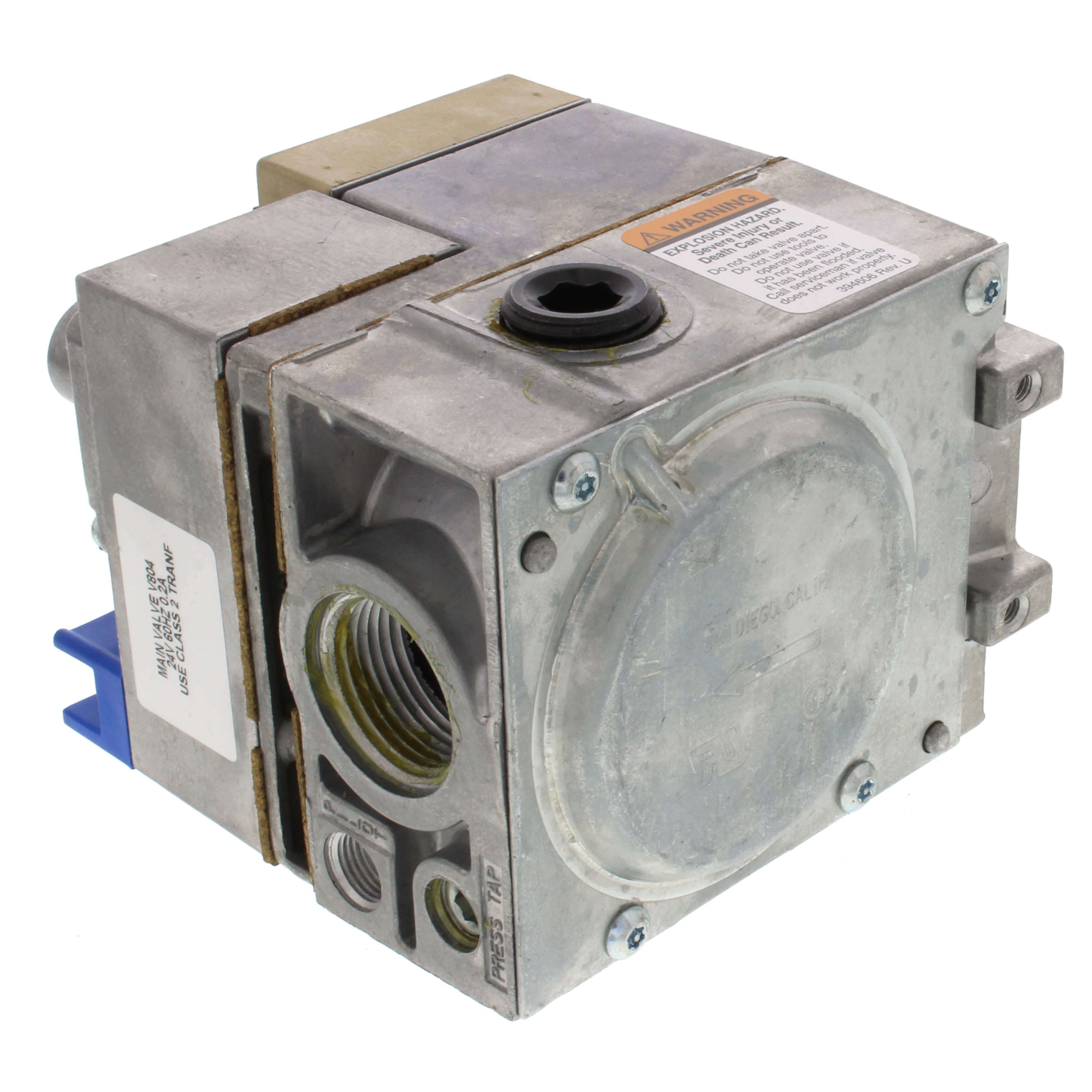

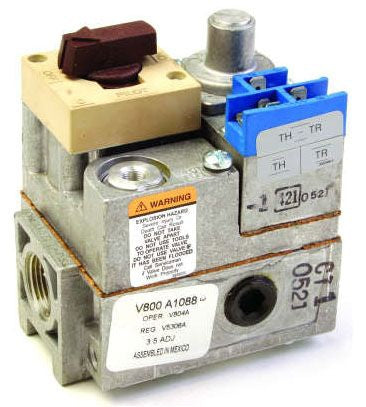

Resideo V800A1088 comb gas control 24V AC 3/4 inch x 3/4 inch

Product Description

The RESIDEO V800A1088 Comb Gas Control is a standard opening, straight-through gas control valve designed for gas-fired appliances with standing pilot ignition. It operates on a 24 Volt AC 60 Hertz input supply and features a 3/4 Inch x 3/4 Inch female threaded end connection. This control valve manages natural gas flow, with a capacity ranging from 34000 to 425000 BTU/Hour, and includes a natural to LP conversion kit for versatility. It is suitable for applications requiring precise gas regulation and safety.

• Includes (1) 1/2 Inch x 3/8 Inch and (1) 3/4 Inch x 1/2 Inch Reducer Bushing.
• Features a Natural to LP Conversion Kit for flexible fuel options.
• Designed for easy installation, adjustment, and service with accessible connections.

Product Highlights

This gas control valve ensures safe and efficient operation for gas-fired appliances, offering broad BTU capacity and flexible fuel type conversion.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: V800A1088

Technical Specifications

• Fuel Type: Natural Gas
• Ignition Type: Standing Pilot
• Pressure Tapping Size: 1/8 Inch Threaded with Plug
• Pilot Gas Outlet: Compression Fitting for 1/4 Inch Outer Diameter Tubing
• Capacity: 34000 to 425000 BTU/Hour
• Pressure Regulator Setting: 3.5 Inch WC
• Mounting: 0 to 90 Degree in any Direction from Upright Position of Gas Control Knob
• Electrical Connection: Combination Screw, 1/4 Inch Male Quick Connect
• Certifications: UL, CSA
• Application: Gas-Fired Appliance
• End Connection: Female Threaded x Female Threaded
• Input Voltage: 24 Volt AC 60 Hertz
• Nominal Size: 3/4 Inch x 3/4 Inch
• Pressure Rating: 1/2 PSI
• Series: V800
• Operating Temperature: 32 to 175 Deg F
• Type: Standard Opening, Straight-Through
• Accessories: Q340A1090
• Replacement Parts: 391937, Q340A1090
• Replaces Models: V800A,B,D,E and H; V810A,B and C; V8139A and B; V8146A,B,C,D and E; V8168B,D,K,L,Q and W; V8170A,B,C,D and E; V8171A and B; V8180A,B,D,E,F,G,H,J,K and L; V8181A,B,D,E,G,K,L and M; others
