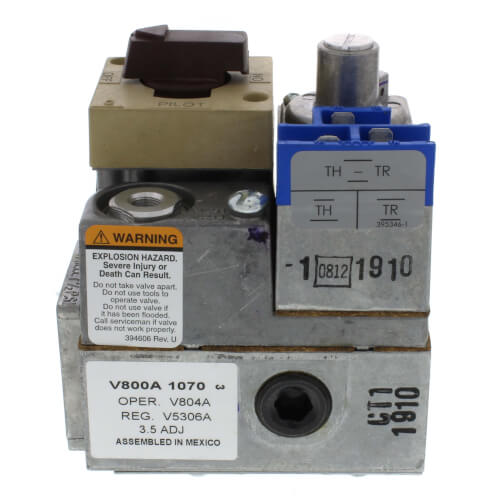

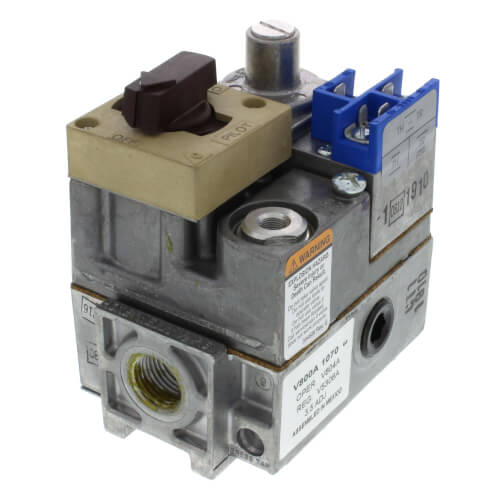

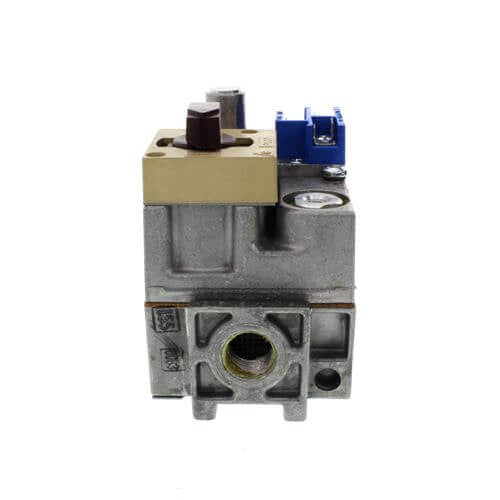

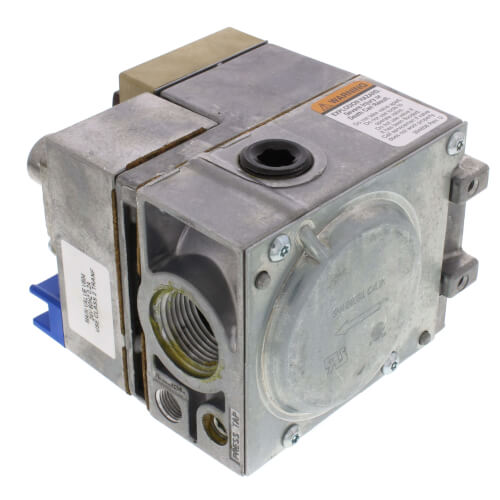

Resideo V800A1070 Standard Pilot Gas Valve 24V 1/2 x 3/4 Inlet/Outlet Size

Product Description

The Resideo V800A1070 Standard Pilot Gas Valve is a reliable component used on gas-fired standing pilot appliances with a 30 mV thermocouple. It includes a manual gas valve, safety shutoff, and a single millivoltage automatic operator. The integrated pressure regulator and pilot gas filter ensure proper flow adjustment.

• Includes pilot flow adjustment screw
• Easy to install, adjust, and service
• Complete safety shutoff on pilot flame failure

Product Highlights

This gas valve from Resideo is known for its compatibility with natural or LP gas and features a standard opening with a 1/2-inch inlet and a 3/4-inch outlet. It can handle a capacity of up to 250,000 BTU/hr and operates at a maximum pressure of 1/2 psi.

Product Information

Standard Information

• Brand: Resideo
• MPN: V800A1070
• Type: Single Stage
• Ignition Type: Standing Pilot
• Gas Type: Natural or LP

Technical Specifications

• Inlet/Outlet Size: 1/2 inch x 3/4 inch
• Pressure Regulator Setting: 3.5 inches wc
• Capacity: 250,000 BTU/hr
• Pressure Ratings: 1/2 psi
• Temperature Range: 32 F to 175 F
• Mounting: 0 to 90 degrees from the upright position
• Includes: Conversion kit, thermocouple, reducer bushings
• Dimensions: 4 3/4 inches high, 4 1/16 inches wide, 3 3/16 inches deep
• Approvals: AGA, CGA, UL
