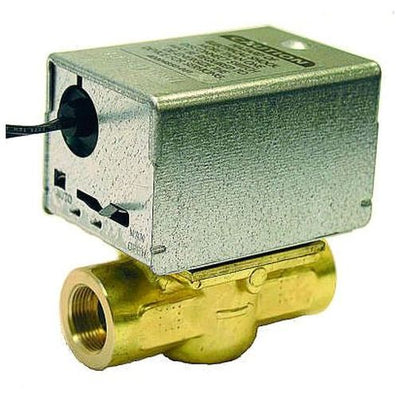

Resideo V4043A1705 3/4 inch NPT 120V NC 8CV Zone Valve

Product Description

The Resideo V4043A1705 zone valve is engineered for precision in hydronic heating and cooling systems. Featuring a 3/4 inch NPT connection and operating on 120V, this normally closed valve ensures reliable system control.

• Designed for closed loop systems
• UL listed and CSA certified
• One-year warranty included

Product Highlights

This valve is crafted from robust materials designed to endure rigorous use in both residential and commercial settings. It is ideal for applications where frequent makeup water is absent as it prevents dissolved oxygen entry, ensuring system longevity.

Product Information

Standard Information

• Brand: Resideo
• MPN: V4043A1705

Technical Specifications

• Connection Type: NPT
• Pipe Size: 3/4 inch
• Body Pattern: Two-way, Straight-through
• Capacity: 3.5 Cv
• De-Energized Position: Normally Closed
• Maximum Close-off Pressure: 20 psi
• Fluid Temperature Range: 40°F to 200°F
• Electrical Connections: 18 inch leads
