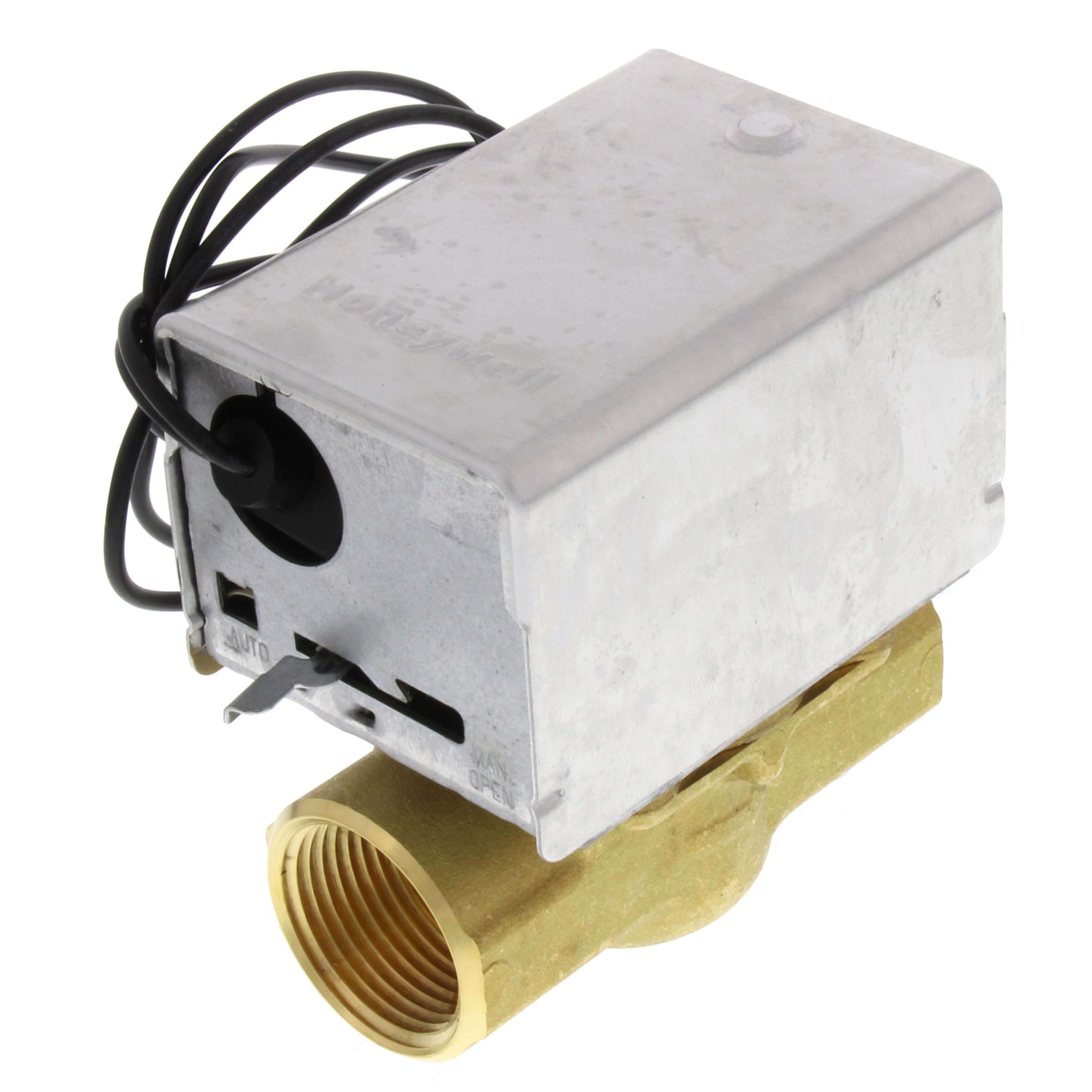

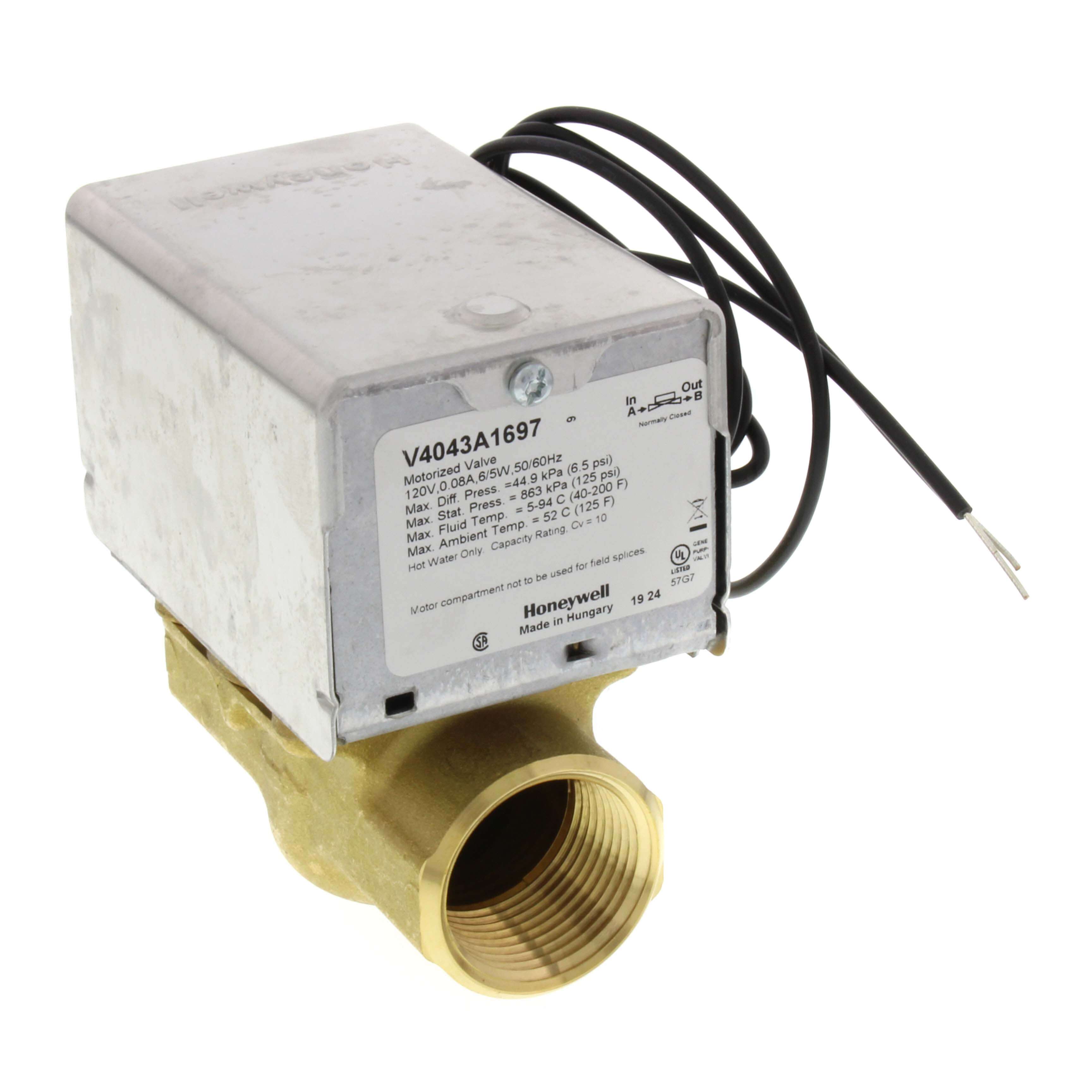

Resideo V4043A1697 Zone Valve 120v 1 NPT Connection

Product Description

The Resideo V4043A1697 is a 1 inch NPT connection zone valve designed for hydronic control in heating and cooling applications. This valve operates at a voltage of 120 volts and is normally closed, ensuring optimal system efficiency.

• Direct replacement for many systems
• Compact and easy to install
• Suitable for 40 F to 200 F fluid temperature range

Product Highlights

This zone valve controls the flow of hot or chilled water in closed-loop systems.

Product Information

Standard Information

• Manufacturer: Resideo
• MPN: V4043A1697

Technical Specifications

• Application: Hydronic Control
• Connection Type: Threaded (NPT)
• Body Pattern: Two-way, Straight-through
• Capacity: 10 Cv
• De-Energized Position: Normally Closed
• Maximum Close-off Pressure: 6.5 psi
• Fluid Temperature Range: 40 F to 200 F
• Electrical Connections: 1.5 feet leads
• Power Consumption: 9.6 VA
• Nominal Timing: 15 seconds
• Valve Action: Spring return to close
• Maximum Ambient Temperature: 125 F
• Size: 4 inches high x 3.72 inches wide x 2.38 inches deep
• Static Pressure: 125 psi
• Voltage: 120 Vac
