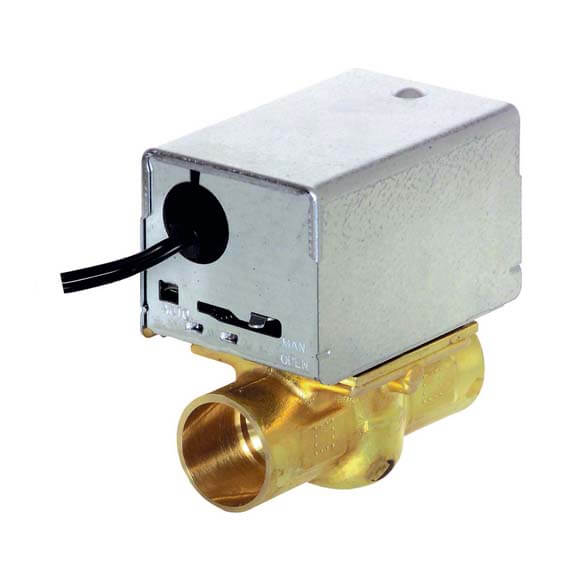

Resideo V4043A1317 2-way 1 Sweat Connection VC Valve Assembly

Product Description

The Resideo V4043A1317 is a 2-way line voltage zone valve designed for controlling hot or chilled water flow. This model features a manual opener for operation during power failures and is suitable for hydronic control applications. The compact design allows for easy installation and maintenance without disassembly.

• Suitable for heating and cooling applications
• Compact construction for easy installation
• Capacity of eight Cv for efficient flow control

Product Highlights

This zone valve is designed for both heating and cooling systems. Its manual operation feature is useful during power failures, making it reliable for various HVAC setups.

Product Information

Standard Information

• Brand: Resideo
• MPN: V4043A1317

Technical Specifications

• Description: 120V 1 in. Sweat Connection Line Voltage Motorized Zone Valves
• Application: Hydronic Control
• Connection Type: Sweat
• Pipe Size: 1 inch
• Body Pattern: Two-way, Straight-through
• Capacity: 8 Cv
• De-Energized Position: Normally Closed
• Maximum Close-off Pressure: 20 psi
• Fluid Temperature Range: 40 F to 200 F
• Power Consumption: 9.6 VA
• Valve Action: Spring return to close
• Dimensions: 4 inches high x 3 and 11/16 inches wide x 2 and 3/8 inches deep
• Static Pressure: 125 psi
• Voltage: 120 Vac
