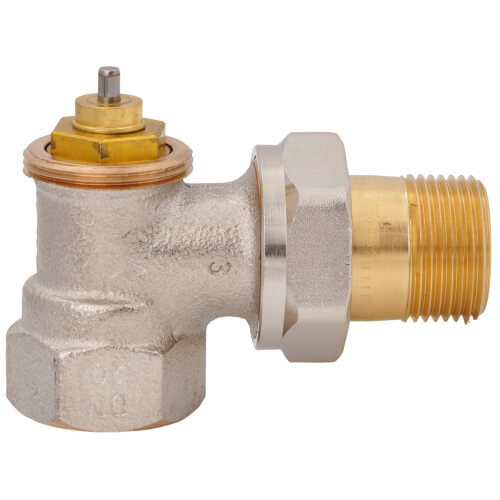

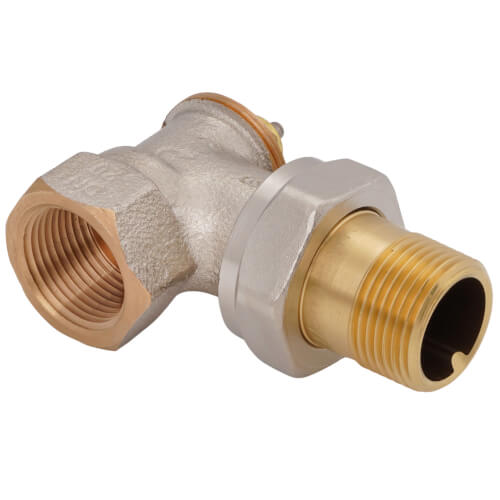

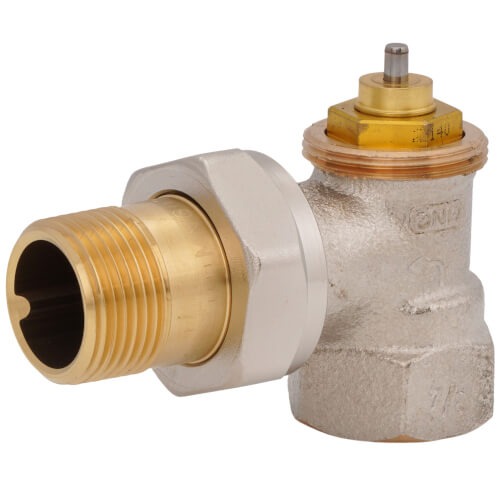

Resideo V2040ESL20 Angle Pattern 3/4 in Vertical Thermostatic Radiator Valve

Product Description

The Resideo V2040ESL20 is a thermostatic radiator valve designed for one-pipe steam or hot water systems. This valve allows for automatic temperature control in radiators and convectors with standard capacity requirements. With no need for electrical connections for non-electric actuators, it effectively monitors and adjusts room temperature.

• Compatible with T100 series thermostatic controls.
• Made from nickel plated bronze for durability.
• Features an adjustable cartridge for precise temperature management.

Product Highlights

Efficient valve designed for optimal temperature control in heating systems.

Product Information

Standard Information

• Brand: Resideo
• MPN: V2040ESL20

Technical Specifications

• Pipe Size: 3/4 inches
• Body Pattern: Angle
• Pressure Ratings: 150 psi maximum (hot water), 15 psi maximum (steam)
• Temperature Ratings: 248 degrees Fahrenheit maximum
• Capacity (Btu/hr): 63,800 Btu/hr (steam)
• Flow Capacity (Cv): 2.7
• Material: Nickel plated bronze
• Warranty: 1 Year
