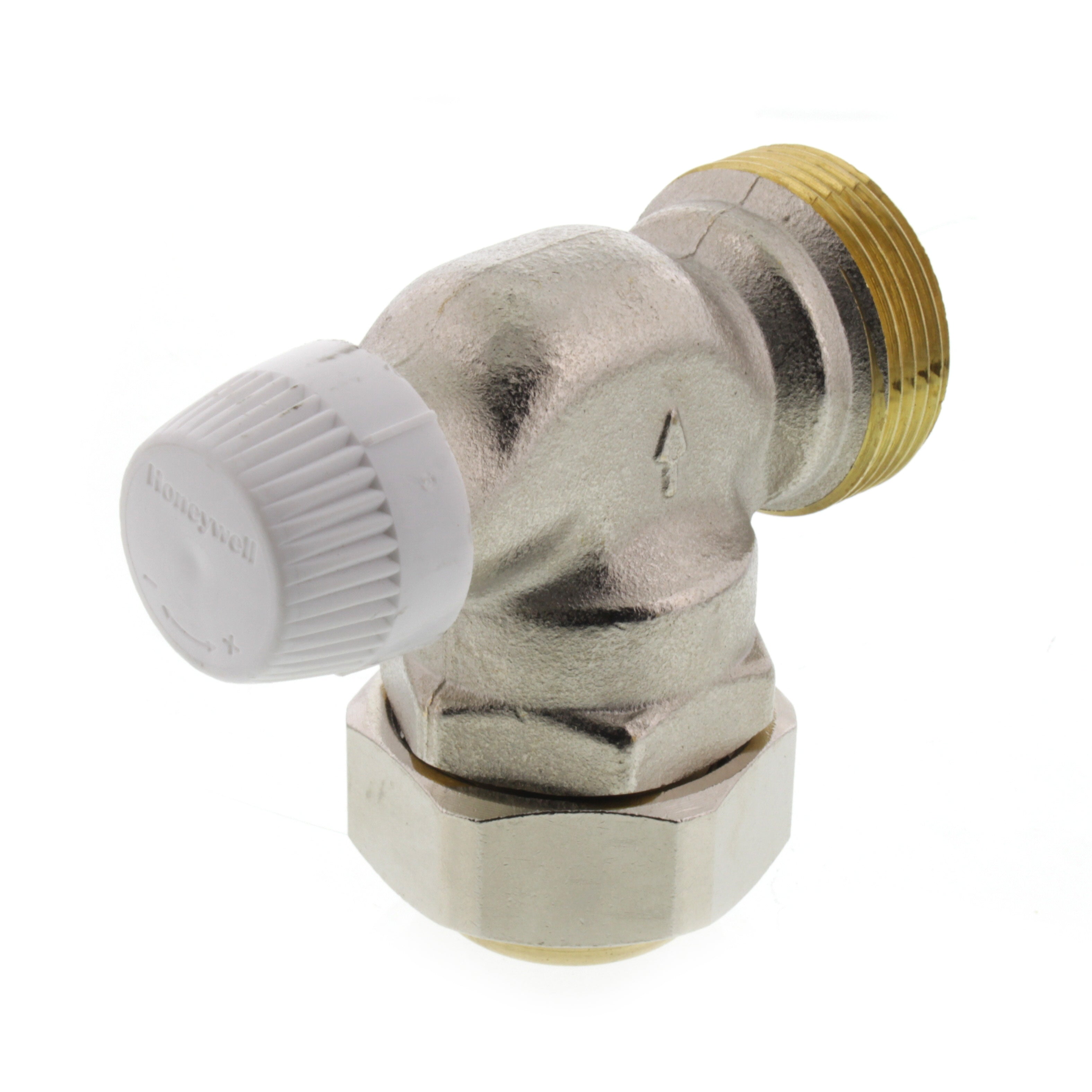

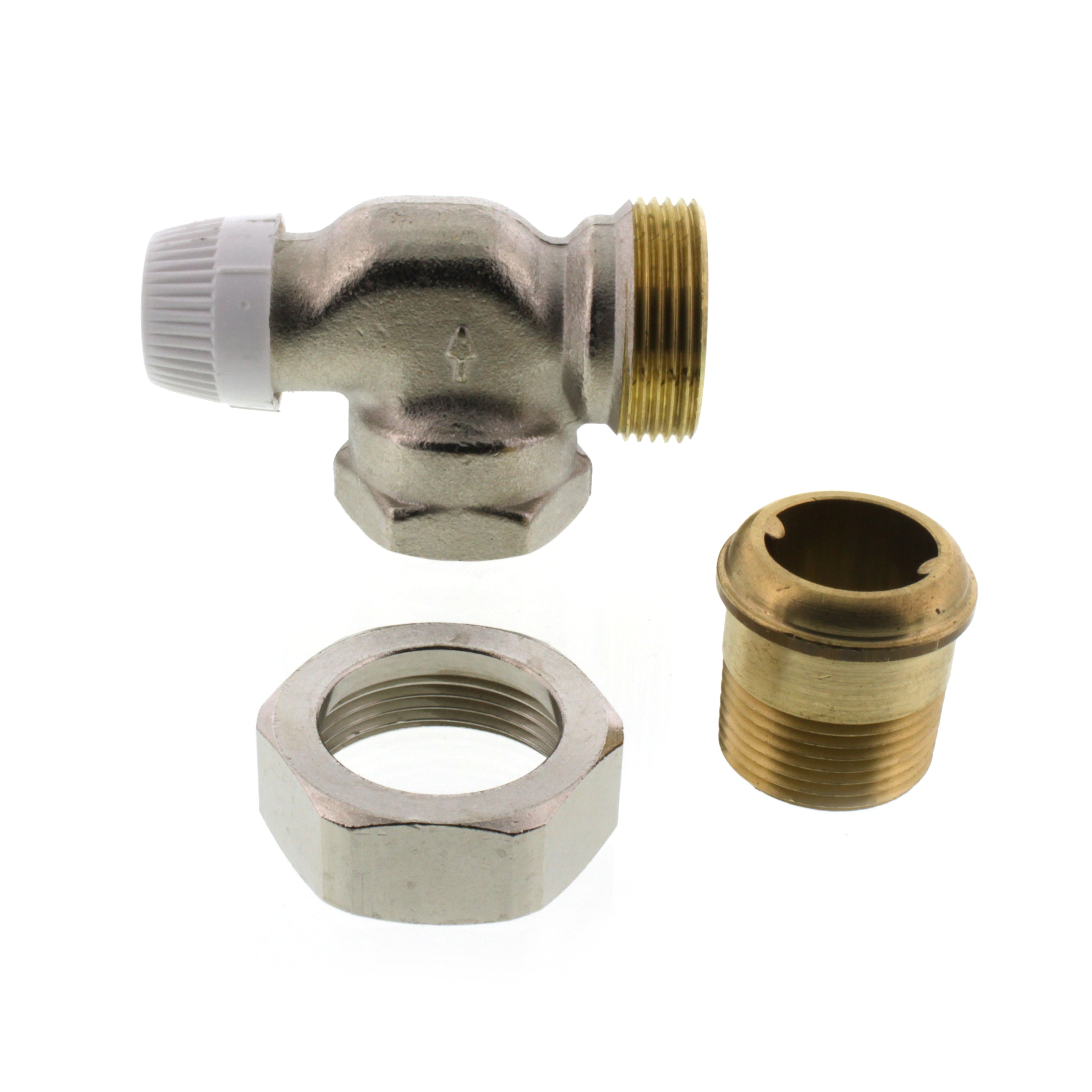

Resideo V2040ASL25 Horizontal Angle Pattern 1 in Radiator Valve

Product Description

The Resideo V2040ASL25 is a Horizontal Angle Pattern one-inch radiator valve designed for automatic temperature control in one-pipe steam and hot water systems. This valve is suitable for free standing radiators and convectors, making it ideal for various heating applications. It requires no electrical connection, providing a reliable solution for temperature regulation. The valve continuously monitors and adjusts room temperatures, ensuring comfort and efficiency.

• Compatible with T100A, T100M, and T100V heating controls.
• Made from nickel-plated bronze for durability.
• Offers easy installation with minimal piping modifications.

Product Highlights

This radiator valve is perfect for replacing manual valves with minimal changes to existing piping. Its design ensures a tight shut-off, contributing to excellent performance in both steam and hot water systems.

Product Information

Standard Information

• Brand: Resideo
• MPN: V2040ASL25

Technical Specifications

• Application: Replaces most manual valves with minimum piping changes
• Body Pattern: Horizontal Angle
• Pipe Size: 1 inch
• Capacity (Cv): 2.7
• Pressure Ratings (Hot Water): 150 psi maximum
• Temperature Ratings: 248 °F maximum
• Material: Nickel Plated Bronze
• Warranty: 1 Year
