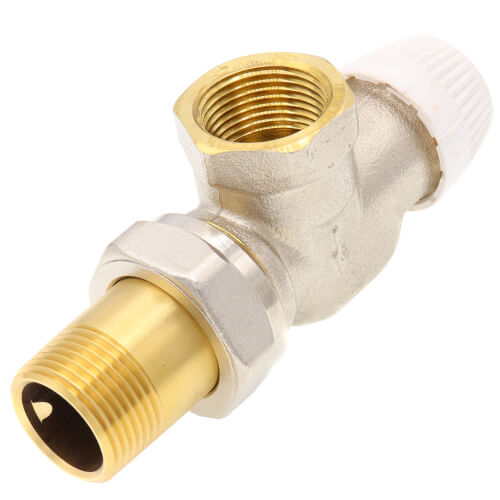

Resideo V2040ASL20 3/4 Horizontal Angle Threaded Radiator Valve

Product Description

The Resideo V2040ASL20 is a 3/4 horizontal angle threaded radiator valve designed for steam and hot water systems. This valve is used to provide automatic temperature control in one-pipe steam or hot water systems for free-standing radiators, convectors, and other heating units. The valve maintains comfort and energy efficiency in your heating system.

• Automatic temperature control
• Nickel-plated brass body
• Replaceable cartridge

Product Highlights

This valve is perfect for those looking to replace manual valves with minimal piping changes. It operates without electrical connections and includes an adjustable balancing cartridge made from resilient EPDM material.

Product Information

Standard Information

• Manufacturer: Resideo
• Part Number: V2040ASL20

Technical Specifications

• Pipe Size: 3/4 inch
• Body Pattern: Horizontal Angle
• Capacity (Cv): 2.7
• Pressure Rating (Hot Water): 150 psi maximum
• Pressure Rating (Steam): 15 psi maximum
• Temperature Rating: 248 F Maximum
• Material: Nickel Plated Bronze
• Dimensions: 1 3/16 in. x 2 1/2 in.
