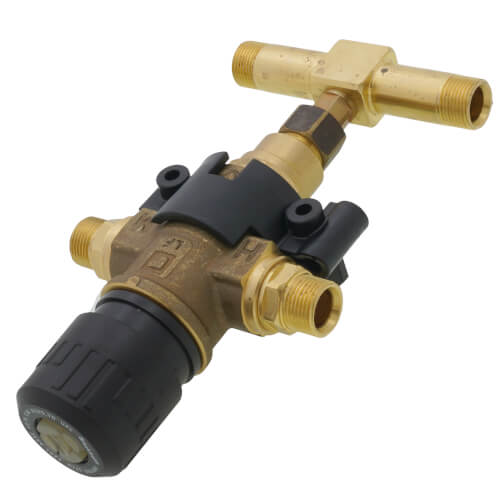

Resideo UMV500-LF Mixing Valve 3/8 Inch Compression Lead-Free

Product Description

The Resideo UMV500-LF Thermostatic Mixing Valve provides precise temperature control for under-the-sink plumbing applications. This mixing valve, part of the UMV series, features a lead-free design, ensuring compliance with current plumbing codes.

• Designed for easy installation in under-sink applications.
• Lead-free composition meets safety and environmental standards.

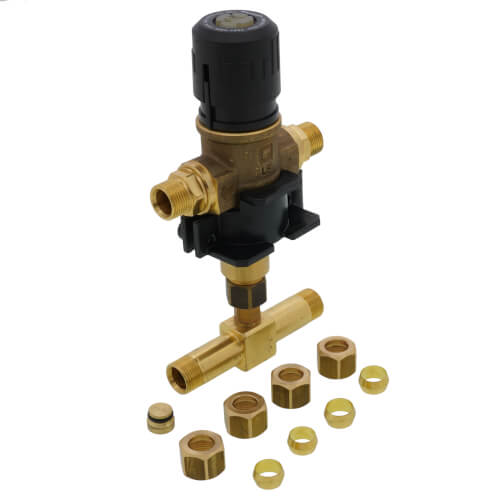

• Includes a 4-port adaptor for flexible installation options.

Product Highlights

Equipped with a lockable hand wheel, the Resideo UMV500-LF allows for tamper-resistant temperature settings, making it suitable for both residential and commercial use. Integral check valves in the hot and cold inlets prevent backflow and enhance safety.

Product Information

Standard Information

• Brand:Resideo
• MPN:UMV500-LF

Technical Specifications

• Size:3/8 Inch
• Flow Rate:Maximum 4.3 GPM, Minimum 0.52 GPM
• Pressure:Up to 125 PSI
• Material:Lead-Free
• Connection Type:Compression
