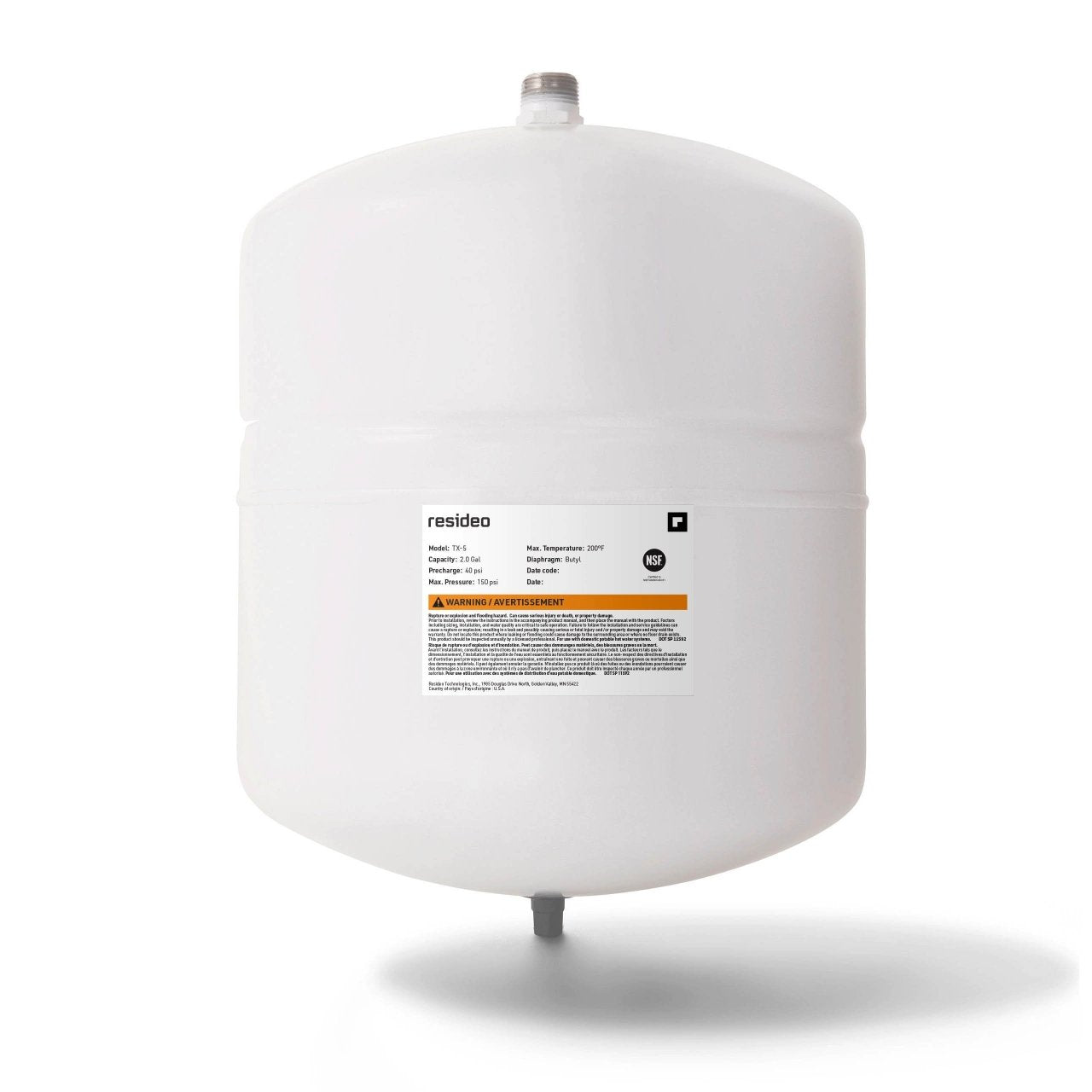

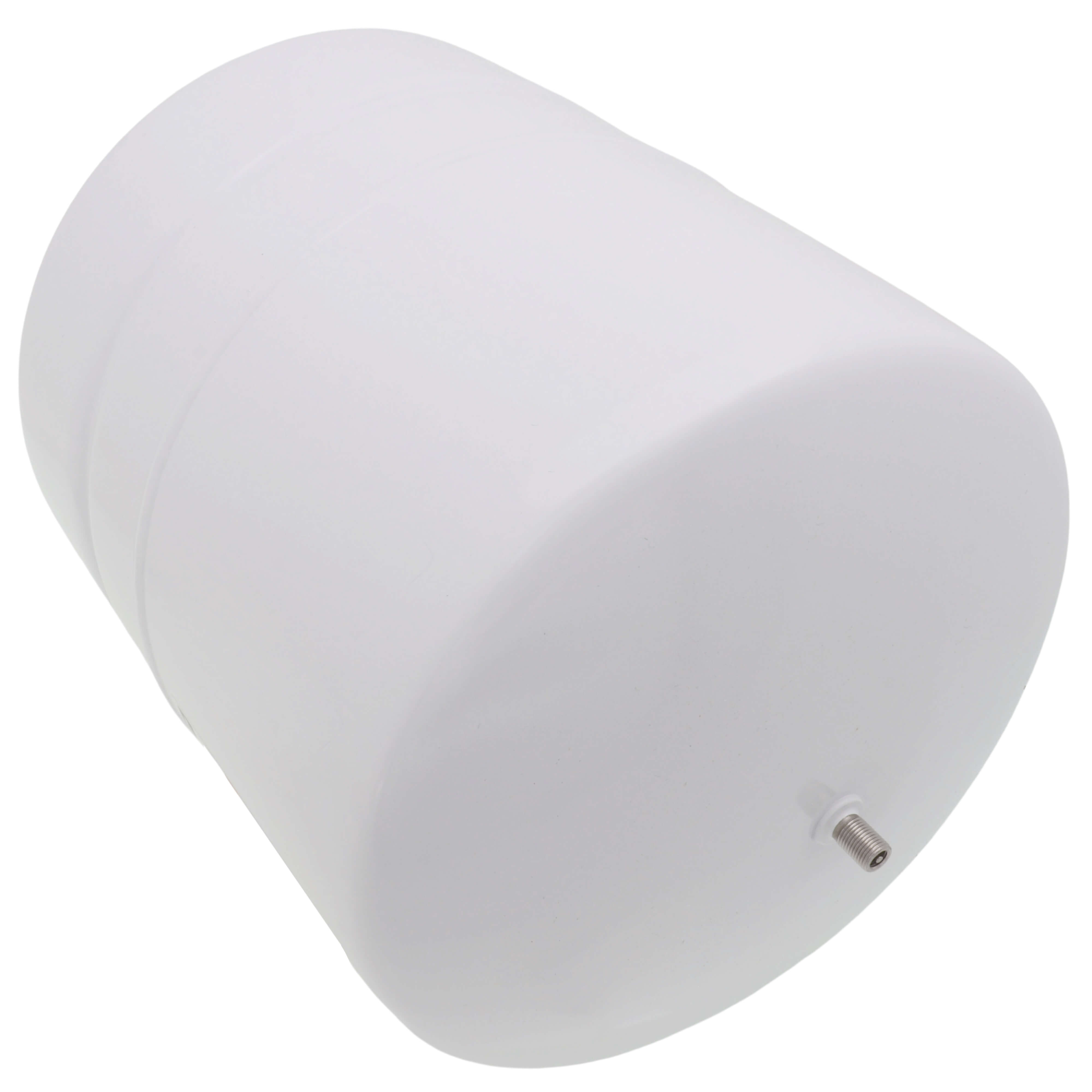

Resideo TX-5 2 Gal 3/4 inches X-Pansion Tank

Product Description

The Resideo TX-5 Expansion Tank is designed for closed-loop hydronic heating systems, preventing pressure buildup from water expansion. With a 2-gallon capacity and 3/4-inch connection, it suits residential and light commercial use. Constructed with durable materials, it ensures long-lasting performance. Its pre-charged design simplifies installation and maintenance.

• 2-gallon capacity for efficient pressure management
• 3/4-inch connection for seamless integration
• Pre-charged design for hassle-free installation

Product Highlights

Ideal for managing pressure and protecting hydronic systems in residential and light commercial buildings.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: TX-5

Technical Specifications

• Item Number: TX-5
• Brand: Resideo
• Volume (gal): 2 gal
• Maximum Acceptance Volume (gal): 0.9 gal
• Diameter (in.): 8"
• Height (in.): 12.63"
• Connection Type: Male NPT
• Application: Hydronic Volume Expansion
• Approvals and Standards: SBCCI, NSF/ANSI 61, City of Los Angeles, IAPMO listed
• Compatible With: Potable Hot Water Systems
• Operating Temperature (Max): 200 °F, 93 °C
• Tank Safe Operating Pressure (Max): 150 psi|1034 kPa
• Connection Size: 3/4 in
• Connector Type: Male
• Warranty: 7 Years
• Body Material: Steel
• Diaphragm Material: Butyl/EPDM Compound
• Surface Protection: Polypropylene
• Pre-Charge Pressure: 40 psi, 276 kPa
