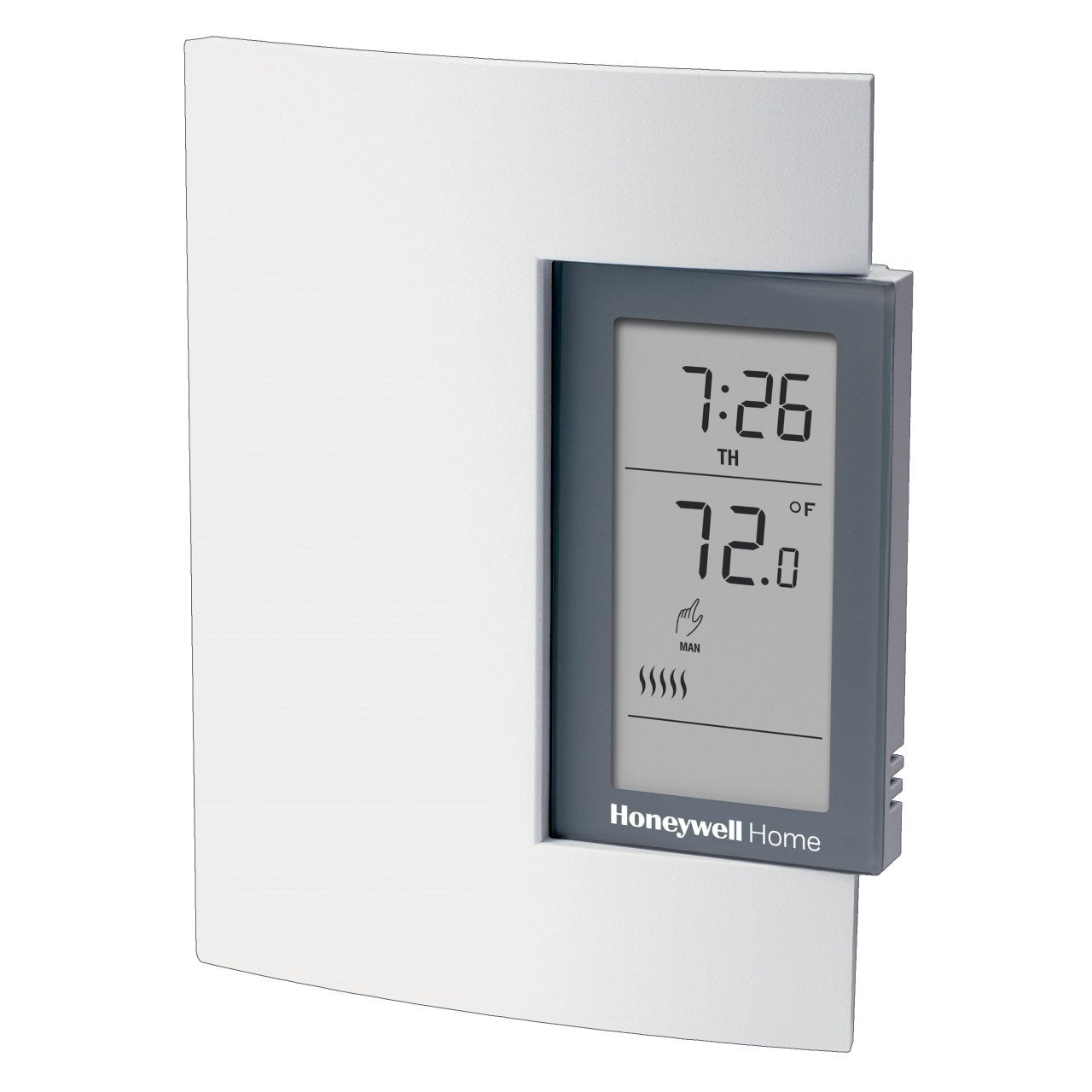

Resideo TL8100A1008/U 7-Day Programmable Electronic Thermostat

Brand: RESIDEO
SKU: TL8100A1008/U
Availability: In Stock

Ships same day if ordered by 12 pm
$110.56
$110.56
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The RESIDEO TL8100A1008/U hydronic thermostat offers energy savings with programmable control for various applications, eliminating the need for multiple thermostats. It controls 2-way and 3-way zone valves or circulator pumps and is designed for hydronic heating systems, allowing customized scheduling to optimize comfort and energy savings.

  • 7-Day Programmable
  • LCD Screen Display
  • Designed for hydronic heating systems

Product Highlights

This thermostat is for gas, oil, and electric systems, including hot water heating, hot air systems, and millivolt systems. It features customizable scheduling for comfort and energy savings.

Product Information

Standard Information

  • Brand: RESIDEO
  • Manufacturer Part Number: TL8100A1008/U
  • Country of Origin: China
Technical Specifications
Color
White
RedLINK
No
Includes
Power base, Screws, Solderless connectors for copper wires
Warranty
2 Years
Clock Type
Week Clock
Application
Electric Heating, Baseboard Heater, Radiant Ceiling, Convector or Fan-forced Heater
Battery Size
AA
Display Type
LCD Screen
Programmable
Yes
Programmability
7-Day
Thermostat Type
Programmable, Line Voltage
Number of Batteries
2
System Mode Options
Heat
Temperature Accuracy
0.5, 1
Smart Home Integration
No
Temperature Setting Range
40 °F to 85 °F, 5 °C to 30 °C
Operating Relative Humidity Max
95% Non-condensing
Operating Relative Humidity Min
0% Non-condensing
Works With Resideo Applications
Not Applicable
Stages
1 Heat
Display Size
10 sq in
Displayed Information
Indoor Temperature, Status Display, Time/Date, Mode Icons
Modes of Operation
Heat
Programming Features
Economy Mode, Holiday Mode, Temporary Override
Program Type
7-Day Programmable
Power Supply
Battery Powered, Hardwired
Power Source
Battery Operated, Hardwired
Battery Type
Alkaline
Sensor Type
Thermistor
Ambient Operating Temperature (Max)
122 °F, 50 °C
Ambient Operating Temperature (Min)
32 °F, 0 °C
Electrical Connection Type
Screw terminals
Mounting Type
Vertical Mount
Voltage Rating
120/240 VAC
Switch Type
Relay
Sensing Element
Thermistor
Differential Temperature
0.1 deg F, 0.1 deg C
Temperature Settings
40 to 85 deg F
Temperature Rating
32 to 122 deg F
Humidity Rating
0 to 95% Non-Condensing
Accuracy
1 deg F
Terminal Designation
R, W
Electrical Connection
Screw Terminal
Product Height
4.9 in, 124 mm
Product Width
3.8 in, 97 mm
