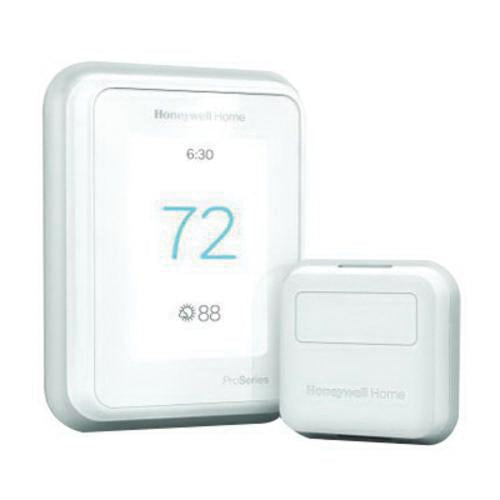

Resideo THX321WFS2001W/U Honeywell T10 Pro Series Thermostat Kit With Sensor 20 to 30 VAC

Product Description

The Resideo Honeywell T10 Pro Series THX321WFS2001W/U is a thermostat kit designed for residential or commercial use. It works with a power range of twenty to thirty VAC, making it suitable for various heating and cooling systems. This thermostat kit includes a sensor for accurate temperature readings.

• Color graphical LCD touchscreen display
• Location-based temperature control
• Automatic operation in occupied rooms

Product Highlights

This thermostat can control humidification, dehumidification, or ventilation. It is compatible with dual fuel systems and has configurable daytime and nighttime backlight settings.

Product Information

Standard Information

• Brand: Resideo
• MPN: THX321WFS2001W/U

Technical Specifications

• Accuracy: 1 deg F
• Amperage Rating: 0.02 to 1 A Heat, 0.02 to 1 A Cool Running, 0.02 to 0.05 A Fan
• Changeover: Auto, Manual
• Color: White
• Differential Temperature: +/-1 deg F
• Dimensions: 4.9 in H x 3.7 in W x 0.93 in D
• Display Type: 7.27 sq-in Touchscreen, LED Back Light
• Frequency Rating: 50/60 Hz
• Humidity Rating: 5 to 90% RH Non-Condensing
• Mounting Type: UWP System
• Power Source: Hardwired
• Programmability: 7, 5-1-1, 5-2 day Program, Non-Programmable
• Series: T10 Pro Series
• Stages: Up to 2 Heat/2 Cool Conventional Systems, Up to 3 Heat/2 Cool Heat Pumps
• Switch Position: HEAT-OFF-COOL-AUTO-EMERGENCY HEAT (System), AUTO-ON-CIRC-FOLLOW SCHEDULE (Fan)
• Switch Type: Relay
• Temperature Rating: 37 to 102 deg F Ambient, -20 to 120 deg F Shipping and Storage
• Temperature Settings: 40 to 90 deg F Heating, 50 to 99 deg F Cooling
• Terminal Designation: RC, R, C, W, O/B, Y, Y2, G, E, AUX, K, L, U, U, S, S
• Voltage Rating: 20 to 30 VAC
