Product Description

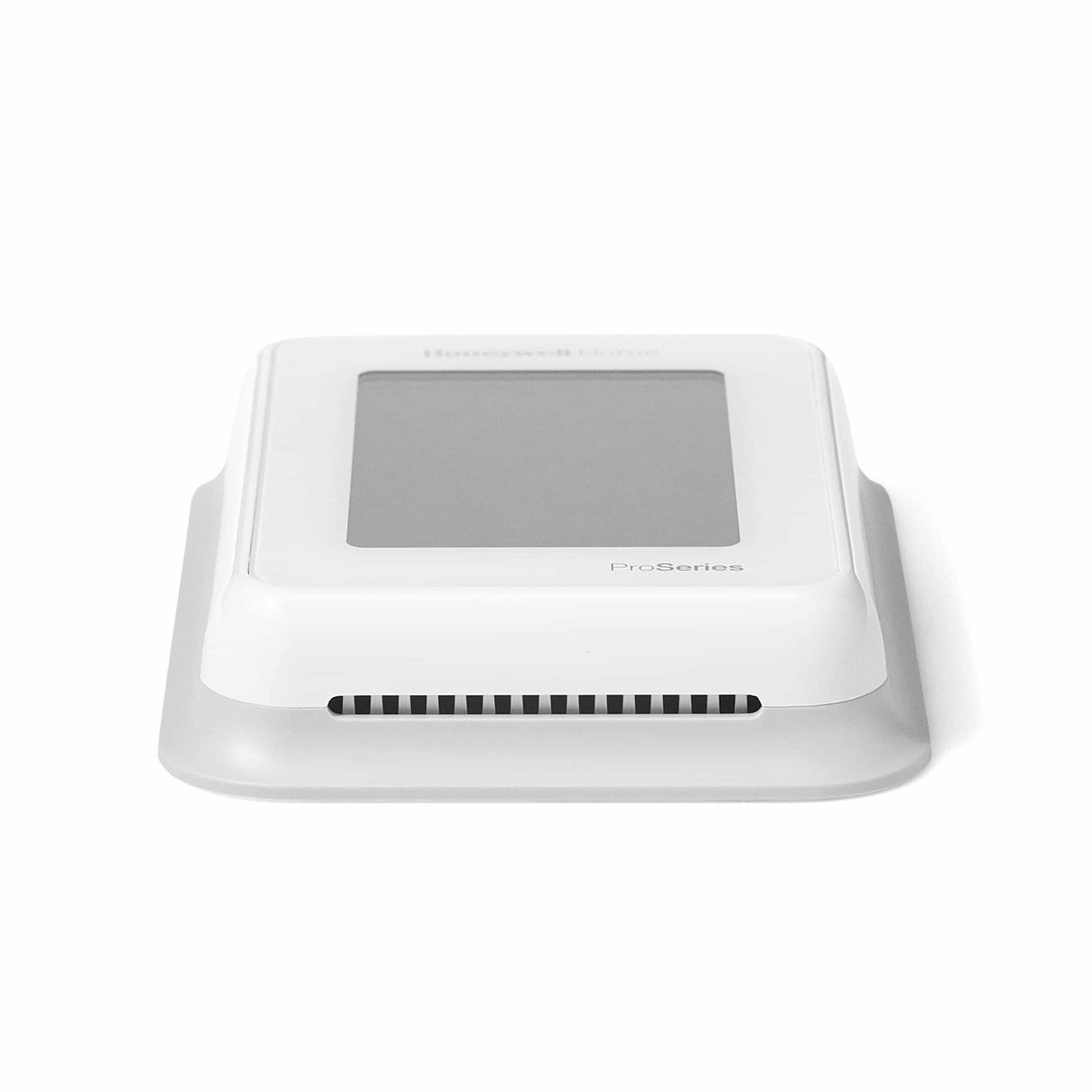

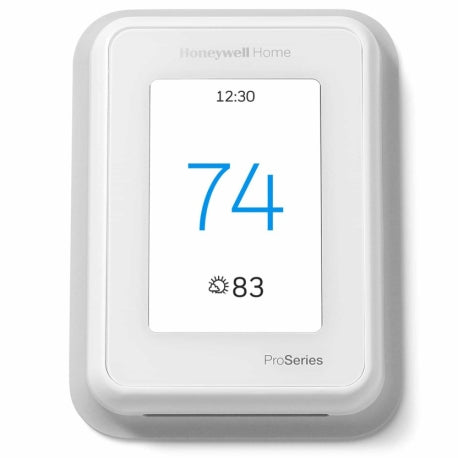

The RESIDEO THX321WF2003W T10 ProSmartStat is a programmable, low voltage, digital Wi-Fi thermostat for residential and commercial use. It supports up to 3 Heat/2 Cool Heat Pump Systems or 2 Heat/2 Cool Conventional Systems, operating on 24V (20-30 Vac) hardwired power. This Energy Star certified device offers precise temperature control within a heat range of 40°F-90°F and cool range of 50°F-99°F, along with humidification (10-60% RH) and dehumidification (25-80% RH) capabilities.

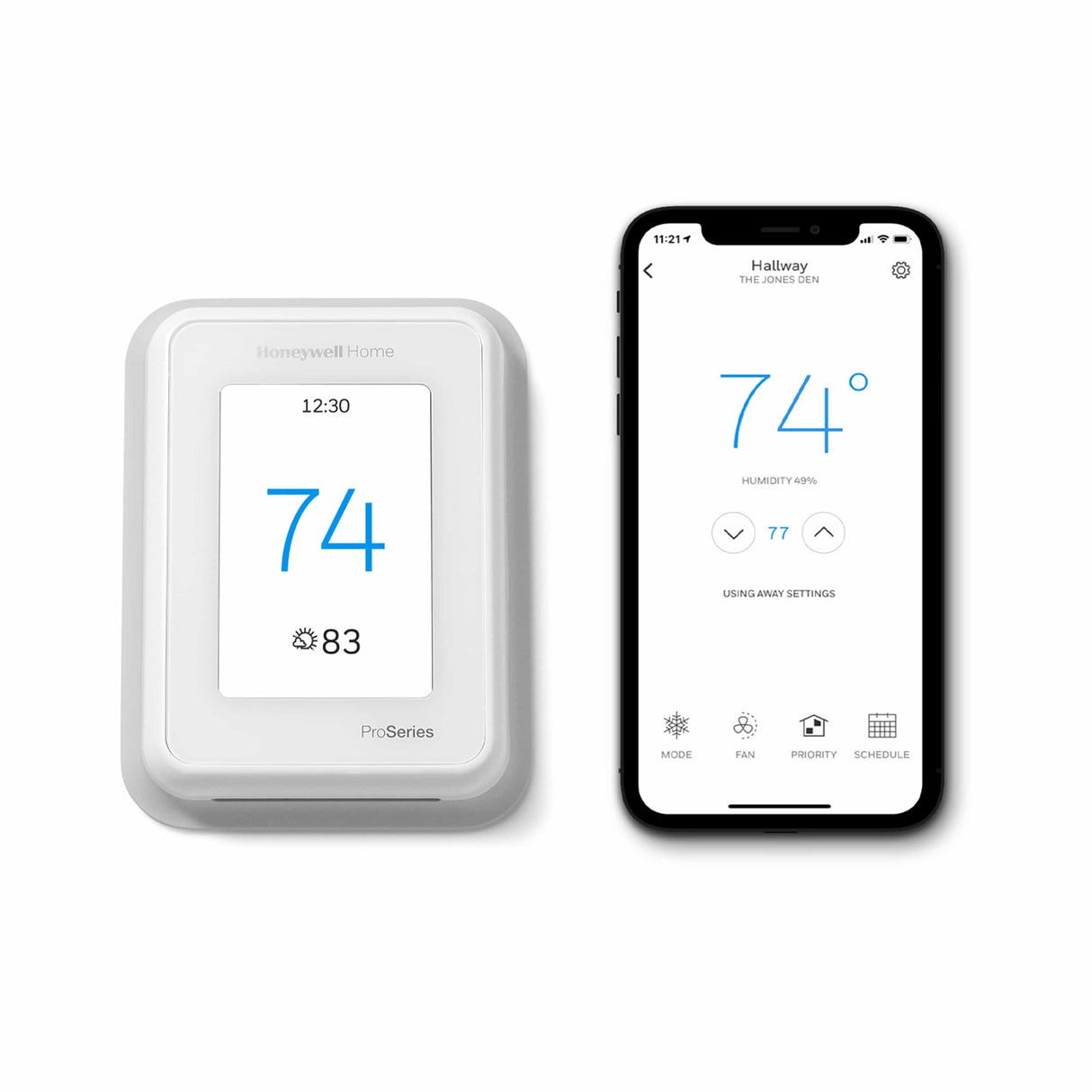

- Wi-Fi connectivity enables remote access and control via the T10 app.
- Smart scheduling adapts to preferences, automatically adjusting temperatures for energy savings.
- Precise temperature control ensures consistent comfort across the space.
Product Highlights
The Resideo THX321WF2003W T10 ProSmartStat provides advanced climate management with Wi-Fi connectivity and smart scheduling.
Product Information
Standard Information
-
Brand: RESIDEO
-
Manufacturer Part Number: THX321WF2003W
Technical Specifications
-
Thermostat Type: Programmable; Low Voltage; Digital; WiFi
-
WiFi Specifications: 802.11b; 802.11g; 802.11n; 2.4GHz range; 5GHz range
-
Color: White
-
Stages: 2 Heat / 2 Cool Conventional or 3 Heat / 2 Cool Heat Pump (w/ aux. heat)
-
Modes of Operation: Heat; Cool; Emergency Heat; Dehumidify; Humidify
-
Programming Features: Uses Sensors for Priority Scheduling; Geofencing
-
Programmability: Programmable, 5-2 Day, 5-1-1 Day, 7-Day, 1-Day, Non-Programmable, Geofencing
-
Fan Function: On; Auto; Circulating
-
Alerts and Reminders: Battery Replacement; Communication Error; Dehumidifier Filter; EAC Post-filter; EAC Pre-filter; Filter Change 1; Filter Change 2; Heat Pump Failure; Humidifier Pad (through app); Internal Sensor Failure; UV Bulb 1; UV Bulb 2; Vent Core; Vent Filter; WiFi No Internet; WiFi Radio Error
-
Display Language: Display selectable for English, French, or Spanish
-
Energy Star Certified: Yes
-
Changeover: Auto or Manual
-
Interface: Touchscreen
-
Display Type: Color
-
Display Size: 7.27 sq in.
-

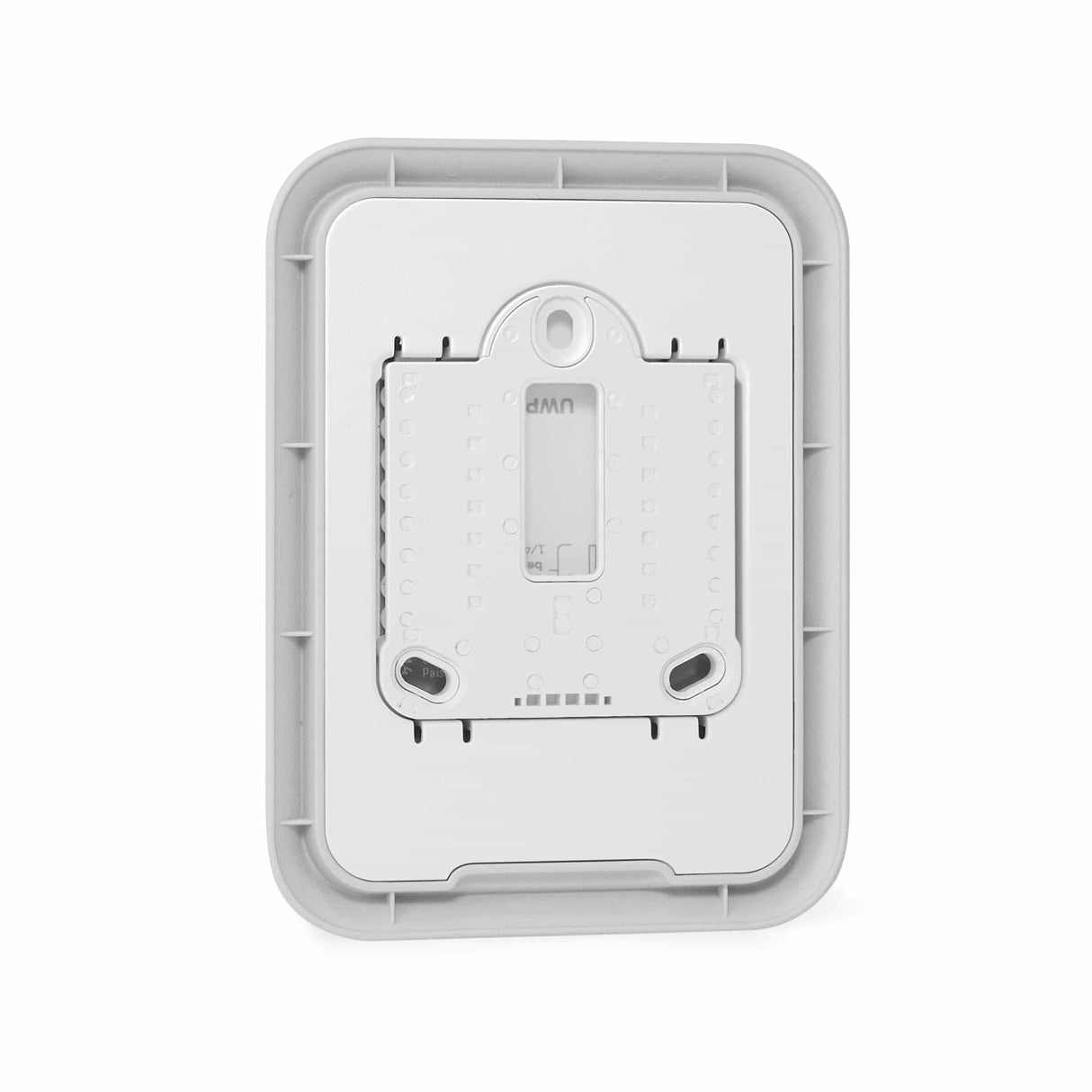

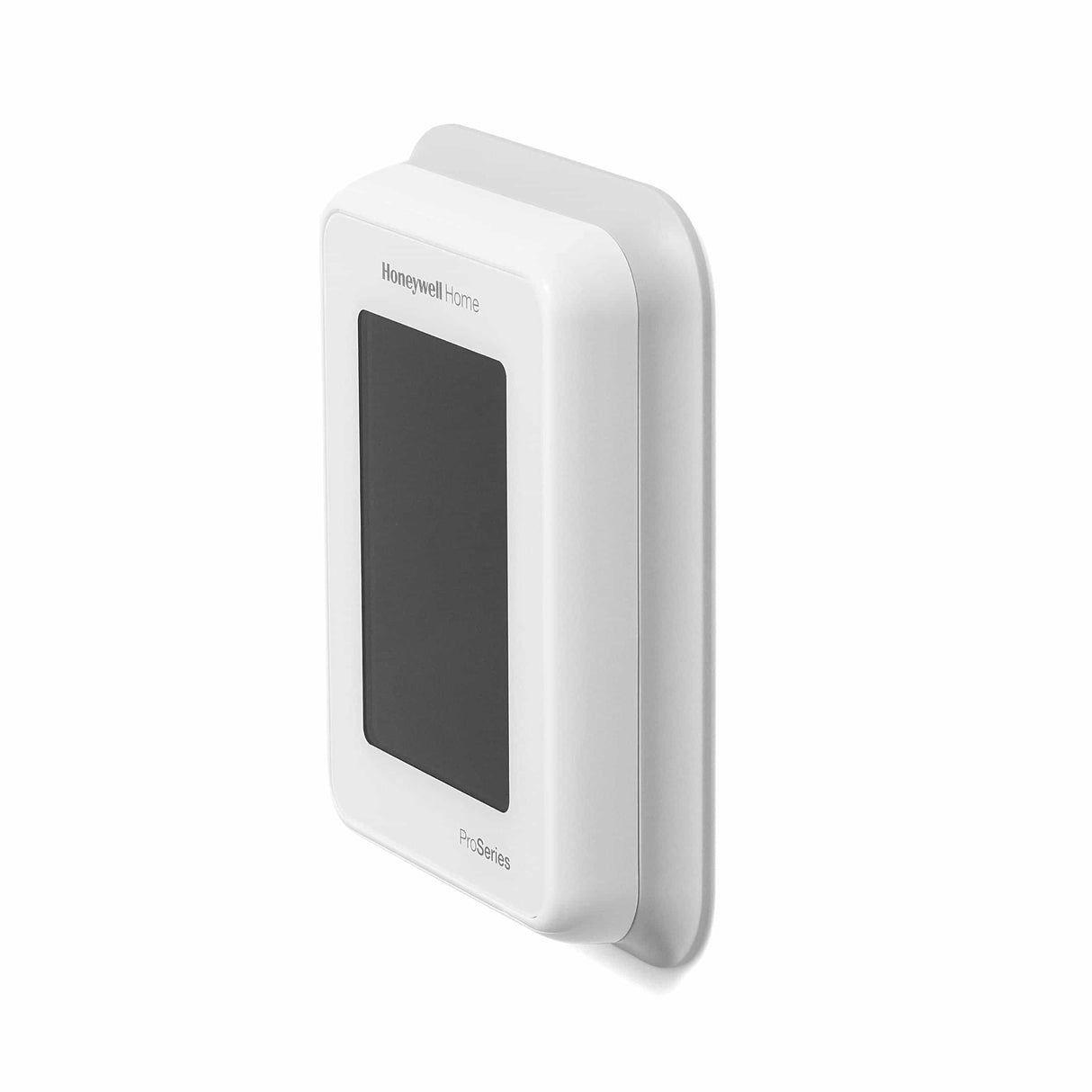

Mounting: Vertical
-
Input Voltage: 24V (20-30 Vac, 0.02-0.50A or 0.02-1.00A - varies by terminal)
-
Power Method: Hardwired Only (C-wire)
-
Terminals: RC, R, C, W, O/B, Y, Y2, G, E, W2-AUX, K, L, U, U, S, S
-
Dual Fuel Compatible: Yes
-
Temperature Range: Heat 40°F - 90°F / Cool 50°F - 99°F
-
Humidification Range: 10% to 60% RH
-
Dehumidification Range: 25% to 80% RH
-
Operating Conditions: 32 to 120°F, 5 to 90% RH, non-condensing
-
Occupancy Sensor Included: No
-
Communication Protocol: Wi-Fi, RedLINK (room occupancy sensor only - no gateway required)
