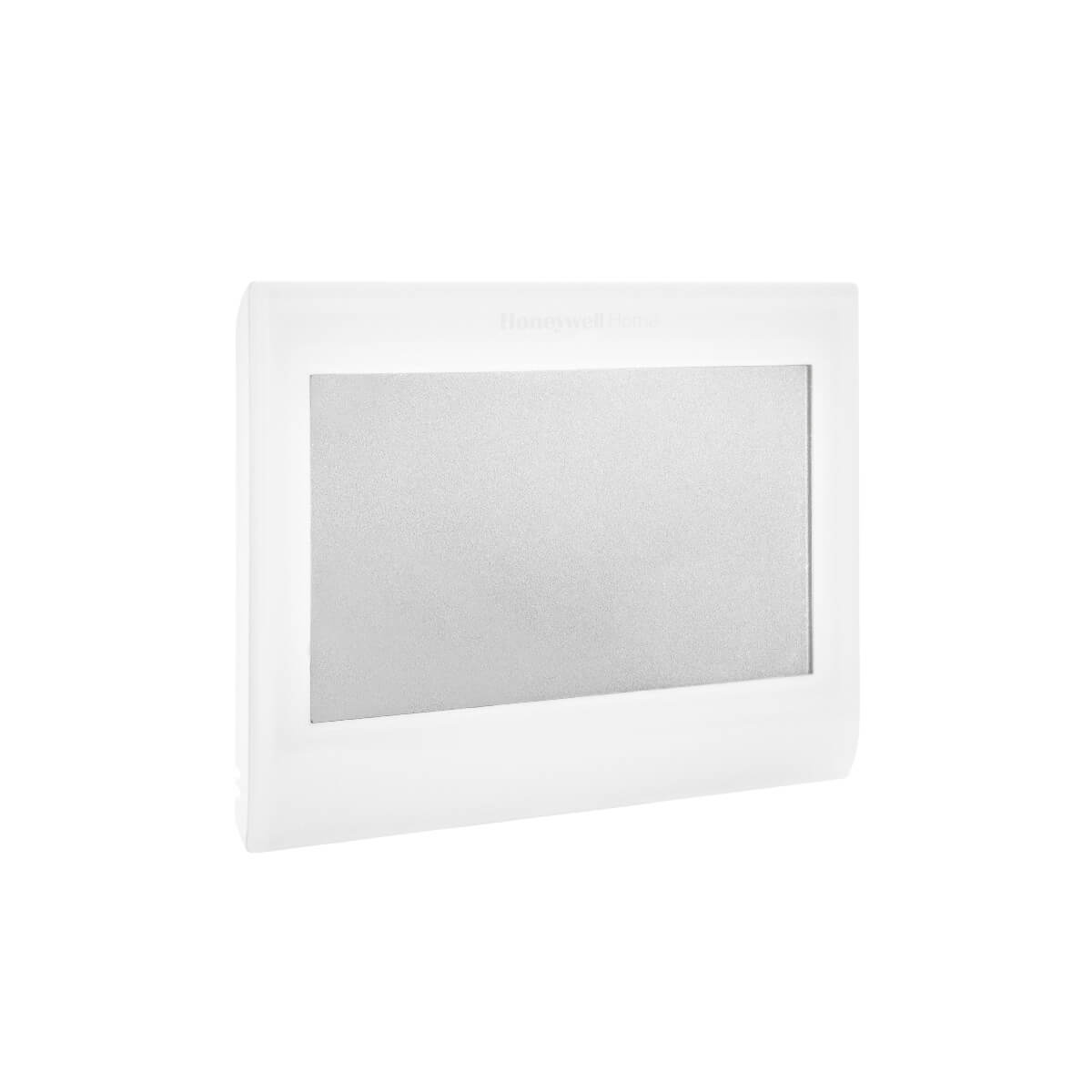

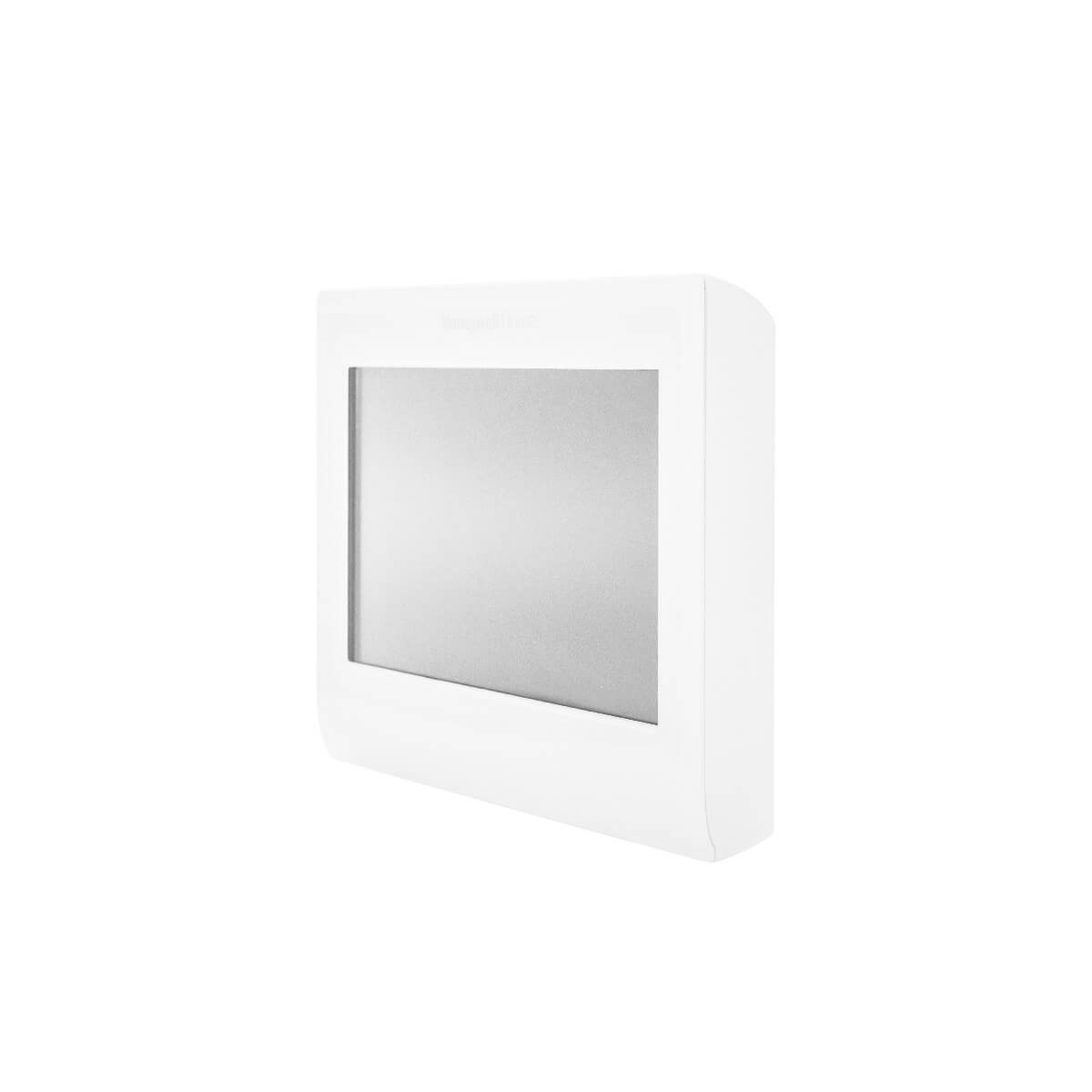

Resideo TH9320WF5003 7-day programmable Wi-Fi thermostat multi-stage 8 inch display

Product Description

The RESIDEO TH9320WF5003 is a 7-day programmable Wi-Fi thermostat designed for multi-stage heating and cooling systems. It features a color touchscreen display and supports both conventional and heat pump applications, including up to 3 heat/2 cool heat pump stages and 2 heat/2 cool conventional stages. This thermostat allows for remote monitoring and adjustment of temperatures via Wi-Fi connectivity, operating within a control range of 40-90°F for heating and 50-99°F for cooling.

• Wi-Fi Connectivity for remote control via web, tablet, or smartphone.
• 7-Day Programmability for customizable scheduling and energy efficiency.
• Color Touchscreen Display for intuitive navigation and clear visibility.

Product Highlights

Offers advanced temperature control and energy-saving features with remote access.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: TH9320WF5003
• Country of Origin: Mexico

Technical Specifications

• Model: TH9320WF5003
• Manufacturer: Resideo
• Part Number: 096883
• Display Size: 8 inches
• Programmability: 7-Day
• System Compatibility: 3 Heat / 2 Cool (Heat Pump), 2 Heat / 2 Cool (Conventional)
• Connectivity: Wi-Fi
• Display Type: Color Touchscreen
• Series: TH9320
• Dimensions (L x W x H): 7/8 Inch x 4-1/2 Inch x 3-1/2 Inch
• Stages Cool: 2 Heat Pump, 2 Conventional
• Stages Heat: 3 Heat Pump, 2 Conventional
• Power Source: Battery/Hardwired
• Temperature Control Range: 40 - 90 deg F Heat, 50 - 99 deg F Cool
• Fan Switching: Auto-On-Program-Circulate
• Mounting Type: Horizontal
• Input Voltage: 18/30 VAC
• Frequency: 50/60 Hz
• System Switching: Auto-Heat-Cool-Off-Emergency
• Programs Per Week: 7
• Terminal Designations: R, RC, C, W (O/B), W2 (AUX/E), Y, Y2, G, L, K
• Temperature Settings Per Day: 4
• Color: Premier White
• Smart Home Integration: Yes
• Display Language: Selectable for English, French, or Spanish
• Energy Star Certified: Yes
• WiFi Specifications: 802.11b, 802.11g, 802.11n, 2.4GHz range
• Ambient Operating Temperature: 32 °F (0 °C) to 120 °F (49 °C)
• Differential Temperature: ± 1 °F (± 0.5 °C)
• Operating Relative Humidity: 5% to 90% RH Non-Condensing
• Backlight Options: Adjustable
• Clock Type: Year Clock
• Demand Response: Yes
• Changeover: Auto/Manual
• Thermostat Type: Wi-Fi, Programmable
