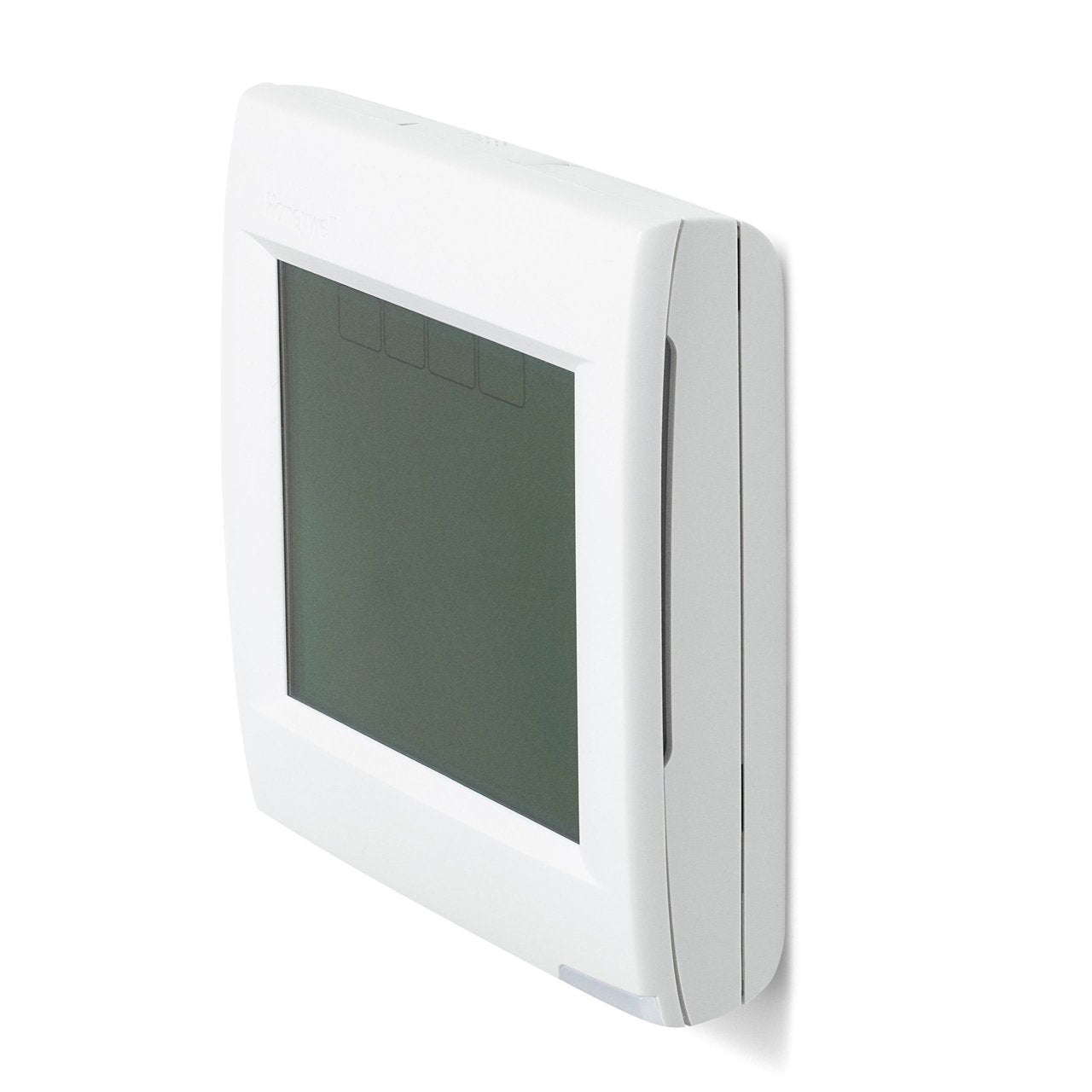

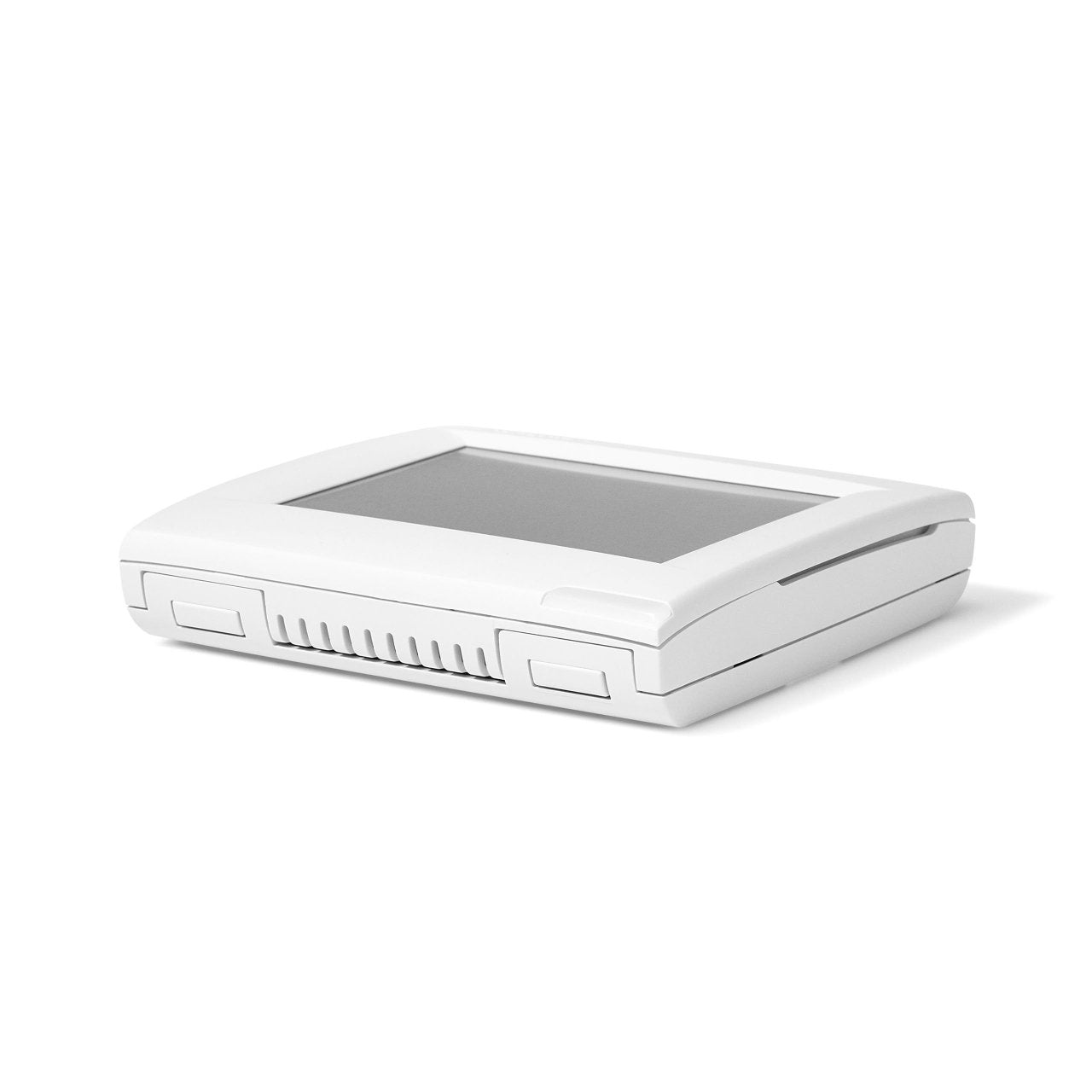

Resideo TH8321R1001 Visionpro 8000 Thermostat With RedLINK 3H/2C 4-15/16 inches W x 1-1/8 inches D x 4-5/8 inches H TH8321R1001/U

Product Description

The RESIDEO TH8321R1001 VisionPRO 8000 with RedLINK is a 7-day programmable touchscreen thermostat for residential or light commercial applications. It can be wired directly to equipment or used with the THM5421R1021 Equipment Interface Module or THM4000R1000 TrueZONE Wireless Adapter. This thermostat integrates with RedLINK accessories like the Internet Gateway and wireless sensors for comprehensive home comfort management. It supports 3-Heat/2-Cool systems and operates on 18 to 30 Volt AC or 750 Millivolt.

• One assignable input can be used with a wired outdoor, indoor, or discharge sensor.
• Alerts and user interactions log keeps a searchable history of alerts and setting changes for troubleshooting.
• Customizable service reminders allow dealers to notify customers about service needs or warranty expiration.

Product Highlights

RedLINK wireless communication, 7-day programmable touchscreen, and customizable service reminders for residential and light commercial use.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: TH8321R1001

Technical Specifications

• Type: 7-Day Programmable/Non-Programmable, 3-Heat/2-Cool (Heat Pump/Conventional), 4-Heat/2-Cool (Heat Pump), 2-Heat/2-Cool (Conventional), Auto/Manual Selectable, Dual Powered
• Color: Arctic White
• Category: HVAC/R & Fans
• Series: 8000
• Operating Temperature: 32 to 120 Deg F
• Input Voltage: 18 to 30 Volt AC/750 Millivolt 50/60 Hertz
• Display Size: 10 Square Inch
• Terminal Type: Screw
• Operating Humidity: 5 to 90 Percent RH (Non-Condensing)
• Power Method: Battery/Hardwired
• System Switching: Heat-Off-Cool-Auto-Em.Heat
• Fan Switching: Auto-On-Circ-Follow Schedule

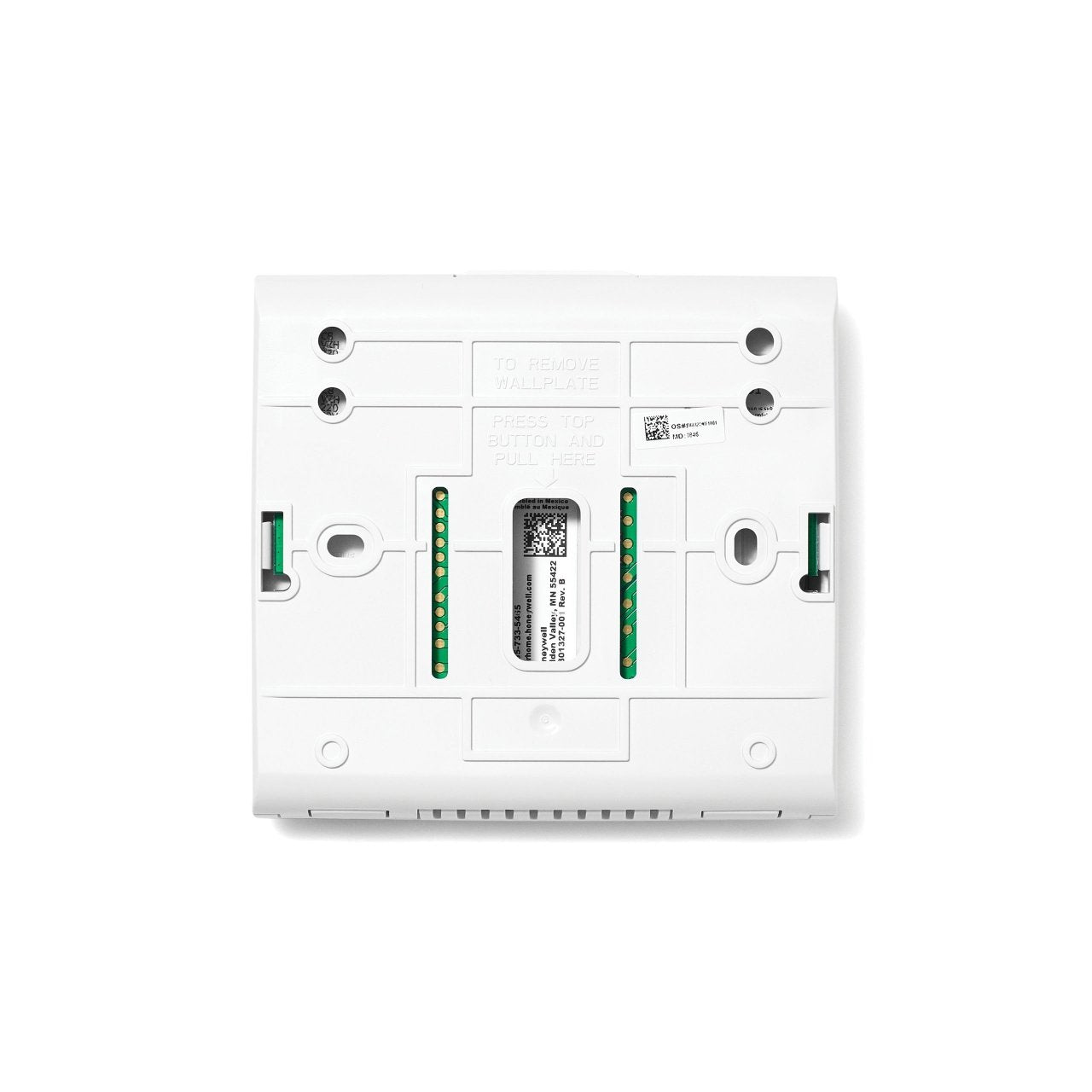

• Terminal Designation: R, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, U1 U1, S1 S1
• Application: Conventional System, Heat Pump
• Differential: +/-1 deg F
• Control Range: 40 - 90 deg F Heat, 50 - 99 deg F Cool
• Mounting Type: Horizontal
• Temperature Settings Per Day: 4
• Smart Home Integration: No
• Display Type: Touch Screen
• Touchscreen: Yes
• Display Language: English
• Displayed Information: Indoor Temperature, Indoor Humidity, Outdoor Temperature, Outdoor Humidity, Time, Status Display
• IAQ Capability: Humidification, Dehumidification, Ventilation
• Energy Star Certified: Yes
• Number of Batteries: 4
• Battery Life: 1 Years
• Battery Size: AA
• Battery Type: Alkaline
• Communication Type: RedLINK, WiFi
• WiFi: No
• WiFi Specifications: Internet Gateway THM6000R7001/U Provides WiFi Capabilities
• Z-Wave: No
• Z-Wave Specifications: Not Applicable
• RedLINK: Yes
• Sensor Type: Thermistor
• Backlight Options: Adjustable
• Clock Type: Year Clock
• Demand Response: No
• Humidity Set Point Max: Heating: 60% RH|Cooling: 80% RH
• Humidity Set Point Min: Heating: 10% RH|Cooling: 40% RH
• Mounting Location: Wall
• Accuracy: ±1°F (0.5°C), system dependent
• Supply Current: H/C - 1.0A, fan - 0.6A
• Memory: 10 years, then 3-AAA batteries required
• Remote Sensor: Room or OSA (accessory required)
• Contact Type: SPST relays
• Control: Proportional plus Integral (PI)
• Dead-band: Adjustable, 2°/9°F, (1.5°/5°C)
• Setpoint/Setback: Adjustable with programmable limits
• Keypad Lockout: Unlocked, locked completely, or locked except setpoint

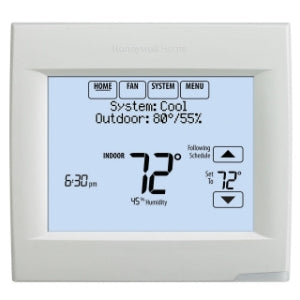

• Display Features: 3.5" x 2.5" backlit touch screen, temperature, humidity (TH8321), system, fan, time, day, setpoint, service reminders (TH), OSA temp if wired
• Display Offset: ±3°F (1.5°C), in 1°F (0.5°C) increments
• Touch Screen Controls: Setpoints: Up/Down; System: Heat/Off/Cool/Auto; Fan Control: On/Auto/Circ (TH), On/Auto (TB); Schedule: 7 day, 2 or 4 periods; Hold: (TH) Permanent or time out; Holiday: (TB) Time out by days; Clock: 12-hour or 24-hour, ±1 min./month; Screen: °F/°C, backlight; Override: Occupied time out; Menu: Service set up, over 40 parameters; Wi-Fi Access (WF): Requires a Total Connect Account
• Wiring: Terminals for 18 AWG wire
• Enclosure Rating: NEMA 1, White plastic, indoors only
