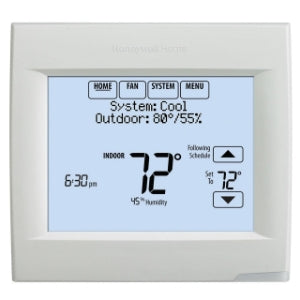

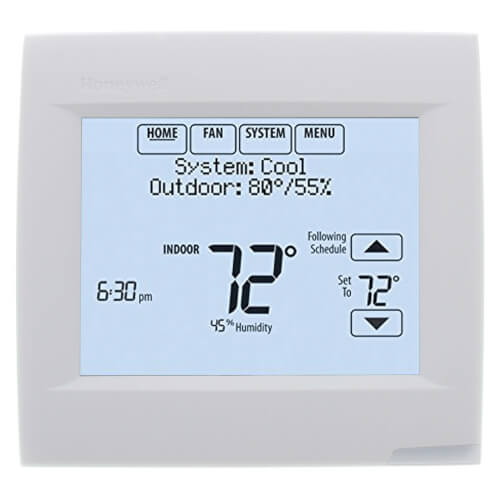

Resideo TH8321R1001 VisionPRO 8000 Programmable Thermostat 3H/2C

Product Description

The Resideo TH8321R1001 VisionPRO 8000 Programmable Thermostat offers advanced home comfort management. It combines RedLINK wireless technology and robust programmability, designed for both residential and light commercial use. The thermostat supports up to three stages of heating and two stages of cooling in heat pumps or conventional systems, ensuring precise temperature control.

• RedLINK wireless communication
• Compatible with various sensors and accessories
• LCD display for easy operation

Product Highlights

This thermostat provides the ability to manage your entire home comfort system through an easy-to-use interface. With RedLINK technology, it can connect to various accessories to balance comfort and energy efficiency.

Product Information

Standard Information

• Brand: Resideo
• MPN: TH8321R1001

Technical Specifications

• Type: Low Voltage
• Color: Arctic White
• Series: VisionPro 8000
• Display: LCD
• Dimensions: 4-5/8 inches L x 4-15/16 inches W x 1-1/8 inches D
• Application: Conventional or Heat Pump
• Stages Cool: 2
• Stages Heat: 3
• Differential: +/- 1 degree F
• Manufacturer: Resideo Honeywell Home
• Power Source: Hardwired/Battery
• Control Range: 40-90 degrees F Heat, 50-99 degrees F Cool
• Fan Switching: Auto-On-Circulate-Follow Schedule
• Mounting Type: Horizontal
• Voltage Rating: 18/30 VAC, 50/60 Hz
• Number of Stages: 3 Heat/2 Cool
• System Switching: Heat-Off-Cool Auto Emergency Heat
• Programs Per Week: 7

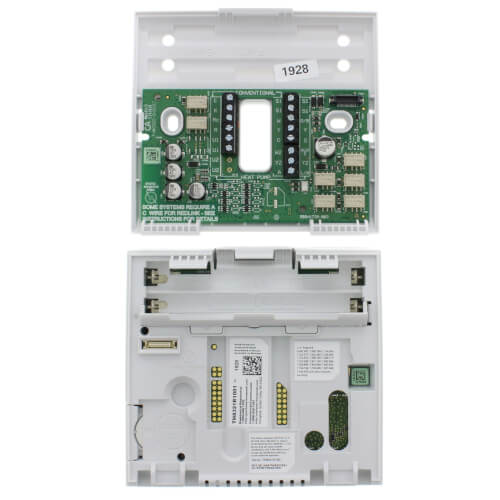

• Terminal Designations: R, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, U1 U1, S1 S1
• Temperature Settings Per Day: 4
