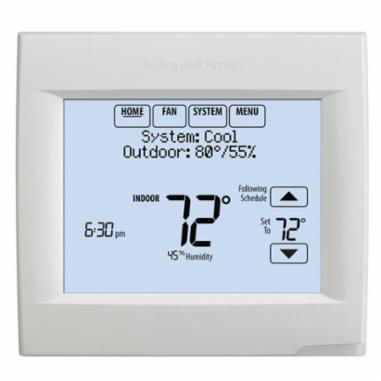

Resideo TH8110R1008 VisionPro 8000 Thermostat 18-30 VAC (10 Inch Display) TH8110R1008/U

Product Description

Resideo TH8110R1008 is a VisionPRO 8000 touchscreen thermostat with RedLINK wireless communication, designed for residential or light commercial HVAC control. The unit supports single-stage 1 heat/1 cool systems, offers 7-day programmable scheduling with Smart Schedule and interview-based setup, and is dual powered (battery or hardwired, 18 to 30 VAC or 750 mV). It includes a microSD port, assignable input for external sensors, and compatibility with Resideo equipment interface and TrueZONE adapter.

• RedLINK wireless communication and compatibility with RedLINK accessories; works standalone or with THM5421R1021 EIM and THM4000R1000 TrueZONE adapter
• 7-day programmable or non-programmable operation with Smart Schedule and plain-language interview-based installer setup
• Dual powered: battery or hardwired (18 to 30 VAC or 750 mV, 50/60 Hz); includes microSD port and screw terminals (R, RC, C, W-O/B, Y, G, K, S1)

Product Highlights

Touchscreen 7-day programmable thermostat with RedLINK, dual power, 1H/1C support, and microSD configurability

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: TH8110R1008

Technical Specifications

• Brand: Resideo
• Manufacturer Part Number: TH8110R1008
• Model/Series: VisionPRO 8000
• Product Name: VisionPRO 8000 Thermostat with RedLINK
• Function: 7-day programmable touchscreen thermostat; selectable for residential or light commercial use
• Communication Technology: RedLINK wireless
• Input Voltage: 18 to 30 VAC or 750 millivolt, 50/60 Hz
• Power Method: Battery or Hardwired
• Programmability: 7-day programmable or non-programmable; Smart Schedule and interview-based programming
• Stages: 1 heat / 1 cool
• Display Size: Approximately 10 inch display (product listing describes 10-inch display / ~10 square inches of viewable area)
• Dimensions (W x D x H): 4-15/16 in x 1-1/8 in x 4-5/8 in
• Temperature Rating: 32 to 120 deg F
• Operating Humidity: 5 to 90% RH (non-condensing)
• Terminal Type: Screw
• Terminal Designations: R, RC, C, W-O/B, Y, G, K, S1
• MicroSD Port: Yes
• Mounting Type: Wall
• Compatibility: Works standalone or with THM5421R1021 equipment interface module and THM4000R1000 TrueZONE wireless adapter; compatible with RedLINK accessories (Internet Gateway, portable comfort control, wireless sensors, remotes, vent/filter boost)
• Accuracy: +/-1.5 deg F
• Power Rating: 1.44 VA (typical) / 1.32 VA (alternate spec listed) — retained but flagged for low confidence
• Amperage Rating: 1 A (specified; appears to be a switching/current-limited rating — uncommon to draw continuous amperes)
• UPC: 085267444316
