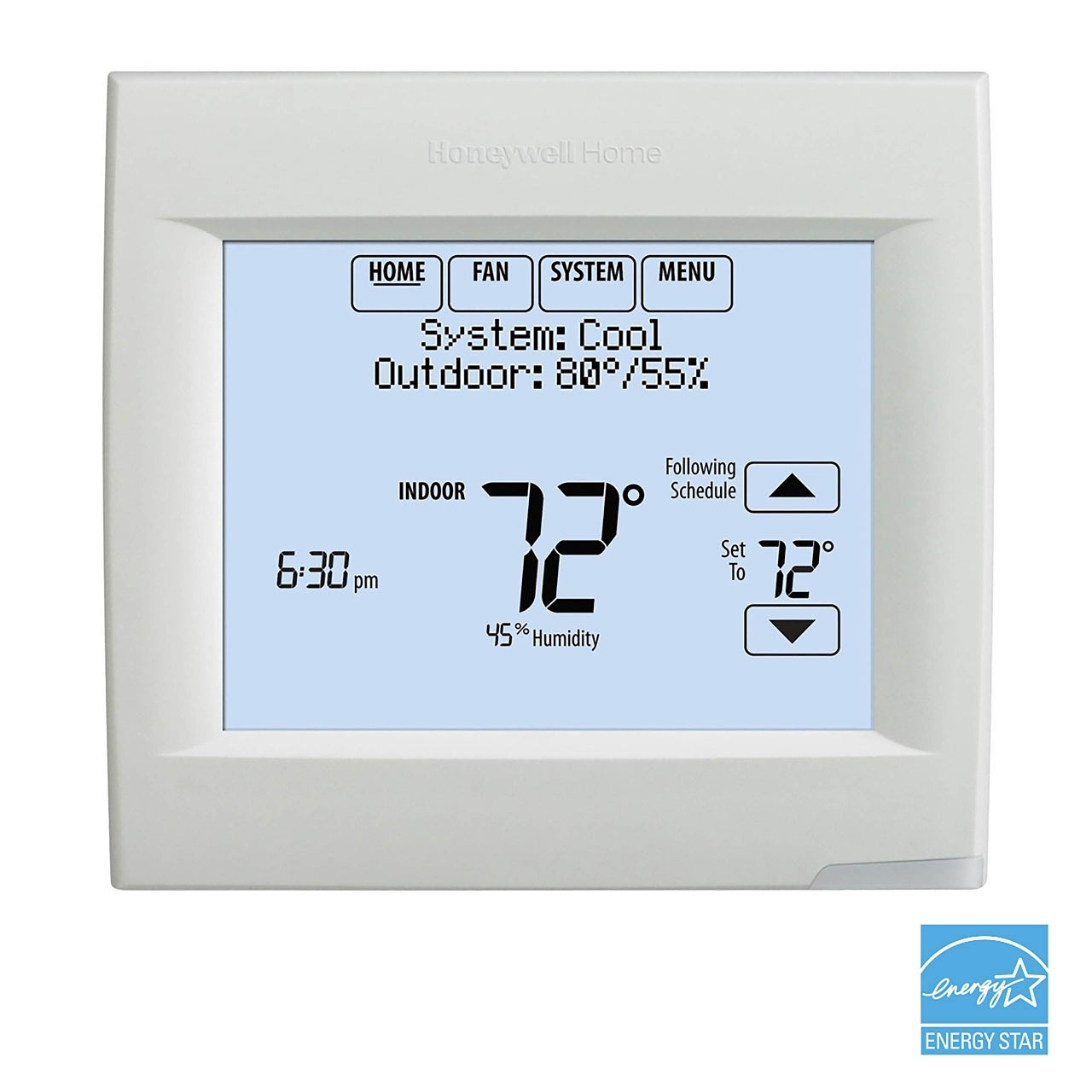

Resideo th8110r1008/u Visionpro 8000 Programmable Thermostat

Product Description

The RESIDEO th8110r1008/u is a low-voltage, programmable digital thermostat designed for residential HVAC systems. It features RedLINK 2.0 wireless communication, allowing it to operate as a standalone control or as part of a larger zoning and accessory network. The touchscreen display measures 10 square inches and shows indoor temperature, indoor humidity, outdoor temperature, outdoor humidity, time, and system status. Power is supplied via hardwire with 4-battery backup. The thermostat is ENERGY STAR certified and suited for 1 Heat/1 Cool conventional and heat pump systems in standalone configurations, with expanded staging capacity when paired with a compatible Equipment Interface Module.

This thermostat is intended for residential HVAC installations involving conventional forced-air systems or heat pumps without auxiliary heat in standalone mode. When used with the THM5421R1021 Equipment Interface Module, it supports up to 4 Heat/2 Cool heat pump systems or up to 3 Heat/2 Cool conventional systems. It can also be used with the THM4000R1000 TrueZONE Wireless Adapter. Compatible RedLINK 2.0 accessories include the RedLINK Internet Gateway, Portable Comfort Control, Wireless Outdoor Sensor, Wireless Indoor Sensor, Wireless Entry/Exit Remote, and Wireless Vent and Filter Boost Remote. Installation is performed by licensed HVAC technicians.

Key Features

• RedLINK 2.0 wireless communication for accessory and gateway integration
• 10 square inch touchscreen display with English-language interface
• 7-Day programmable scheduling with Smart Schedule setup
• Displays indoor and outdoor temperature and humidity, time, and system status
• ENERGY STAR certified for energy efficiency compliance
• Hardwired power with 4-battery backup rated for approximately 1 year
• Customizable service reminders and alerts

Compatibility

Compatible with 1H/1C conventional systems and heat pumps with no auxiliary heat in standalone use. Expanded staging available when paired with the THM5421R1021 Equipment Interface Module or the THM4000R1000 TrueZONE Wireless Adapter. Works with RedLINK 2.0 accessories including the RedLINK Internet Gateway, Portable Comfort Control, Wireless Outdoor Sensor, Wireless Indoor Sensor, Wireless Entry/Exit Remote, and Wireless Vent and Filter Boost Remote.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with low-voltage thermostat wiring and local mechanical codes. Disconnect power to the air handler or furnace at the breaker before removing the existing thermostat or making any wiring connections. Verify system type and staging requirements before selecting standalone or Equipment Interface Module configuration. Do not apply line voltage to low-voltage terminals.

Technical Specifications

• Application: 1H/1C Conventional Systems, Heat Pumps with No Auxiliary Heat
• Thermostat Type: Programmable, Digital, Low Voltage, RedLINK
• Stages (Standalone): 1 Heat/1 Cool Heat Pump, 1 Heat/1 Cool Conventional
• Stages (with Equipment Interface Module): Up to 4 Heat/2 Cool Heat Pump, Up to 3 Heat/2 Cool Conventional
• Display Type: Touchscreen
• Display Size: 10 square inches
• Display Language: English
• Displayed Information: Indoor Temperature, Indoor Humidity, Outdoor Temperature, Outdoor Humidity, Time, Status
• Modes of Operation: Heat, Cool, Auto, Off
• Program Type: 7-Day Programmable, Manual
• Power Supply: Hardwired, Battery Backup
• Number of Batteries: 4
• Battery Life: 1 year
• Energy Star Certified: Yes
• Smart Home Integration: No

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: th8110r1008/u
