Resideo TH6320ZW2007 Zwave T6Pro Prog Smart Stat 20-30V

Product Description

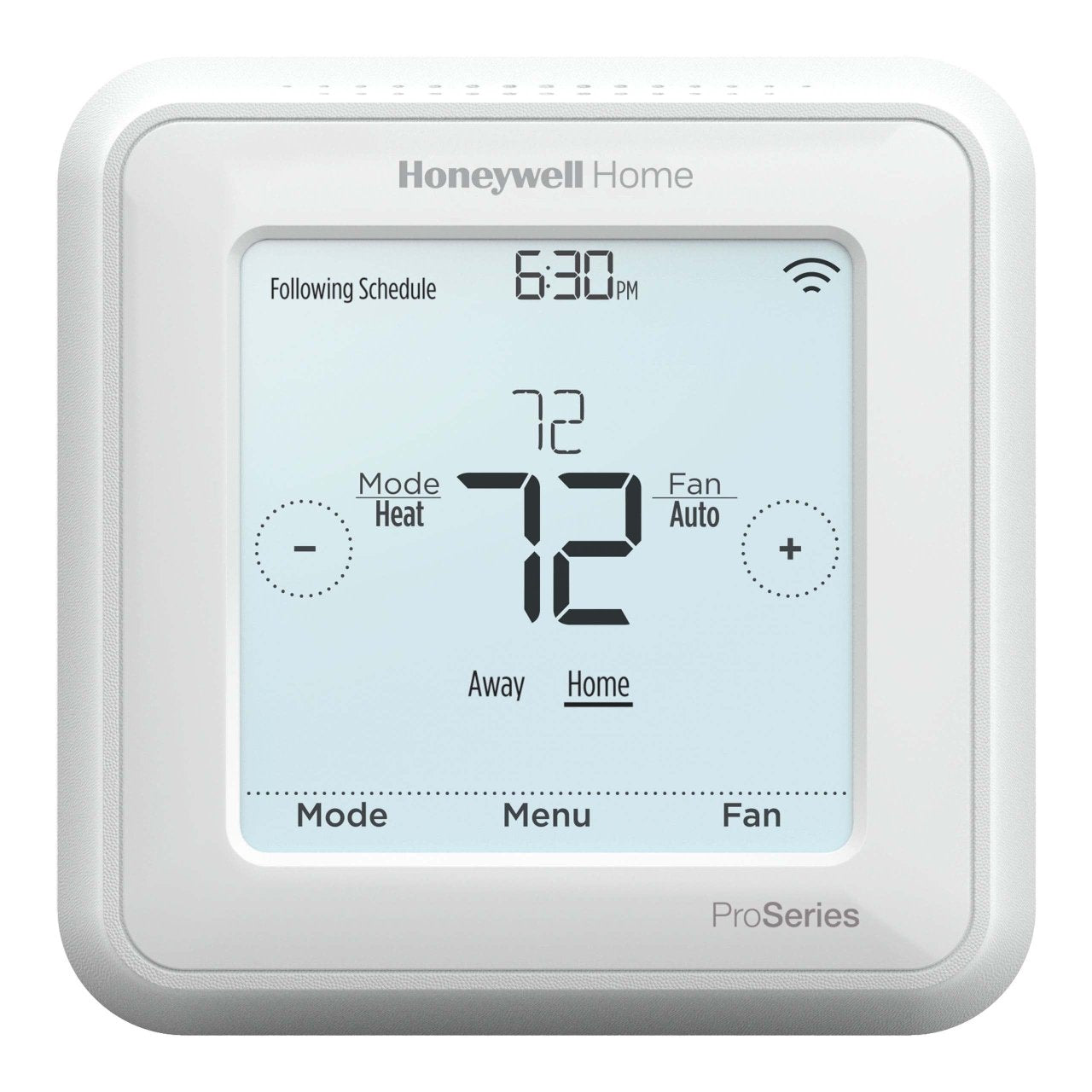

The RESIDEO TH6320ZW2007 is a Z-Wave T6 Pro programmable smart thermostat. This energy-saving device features a large, sleek touchscreen display for versatile and convenient comfort control. It is compatible with Z-Wave and Z-Wave Plus compliant gateways, hubs, and controllers, supporting 3H/2C heat pump or 2H/2C conventional systems. Power options include 3 AA batteries or hardwired C-wire, operating at 20-30V, 50/60 Hz. It offers 7-day, 5-1-1, or 5-2 day programmability.

• Z-Wave and Z-Wave Plus compatible for smart home integration.
• Features a large, sleek touchscreen display for intuitive control.
• Supports 7-day, 5-1-1, or 5-2 day programmable schedules for energy savings.

Product Highlights

Energy-saving programmable smart thermostat with Z-Wave connectivity and touchscreen display.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: TH6320ZW2007
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: Resideo
• MPN: TH6320ZW2007
• Compatibility: Z-Wave and Z-Wave Plus compliant gateways, hubs and controllers
• System Stages: 3 Heat, 2 Cool Heat Pump + Dual Fuel, 2 Heat, 2 Cool
• Chipset: Z-Wave 5.0 chipset encryption
• Display Type: 6.89 sq-in Touchscreen Backlight LED
• Power Source: 3 AA batteries, hardwired (C-Wire), or both
• Input Voltage: 20-30 V
• Frequency: 50/60 Hz
• Programmability: 7-day, 5-1-1 or 5-2 day programmable, nonprogrammable, or occupancy controlled with Z-Wave panel/app integration
• Wireless Range: Extended with Z-Wave Plus
• Communication Speed: Fast
• Lockout Feature: Dual fuel and aux heat lockout with outdoor sensor
• Series: T Series
• Switch Type: Relay
• Differential Temperature: 1 deg F
• Temperature Settings Range: 40 to 90 deg F
• Operating Temperature: 37 to 102 deg F
• Operating Humidity: 0 to 90 %
• Accuracy: 1 deg F
• Mounting Type: Wallplate
• Terminal Designation: RC, R, C, W, W2 to AUX, Y, Y2, O/B, G, K, E, L/A, S, S
• Electrical Connection: UWP Mounting System
• Fan Current: 0.02 to 5 A
• Color: White
