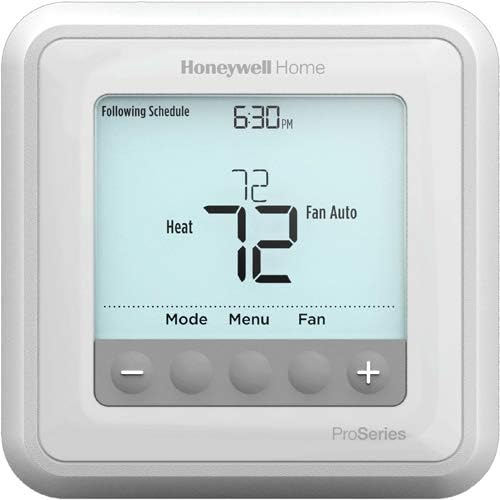

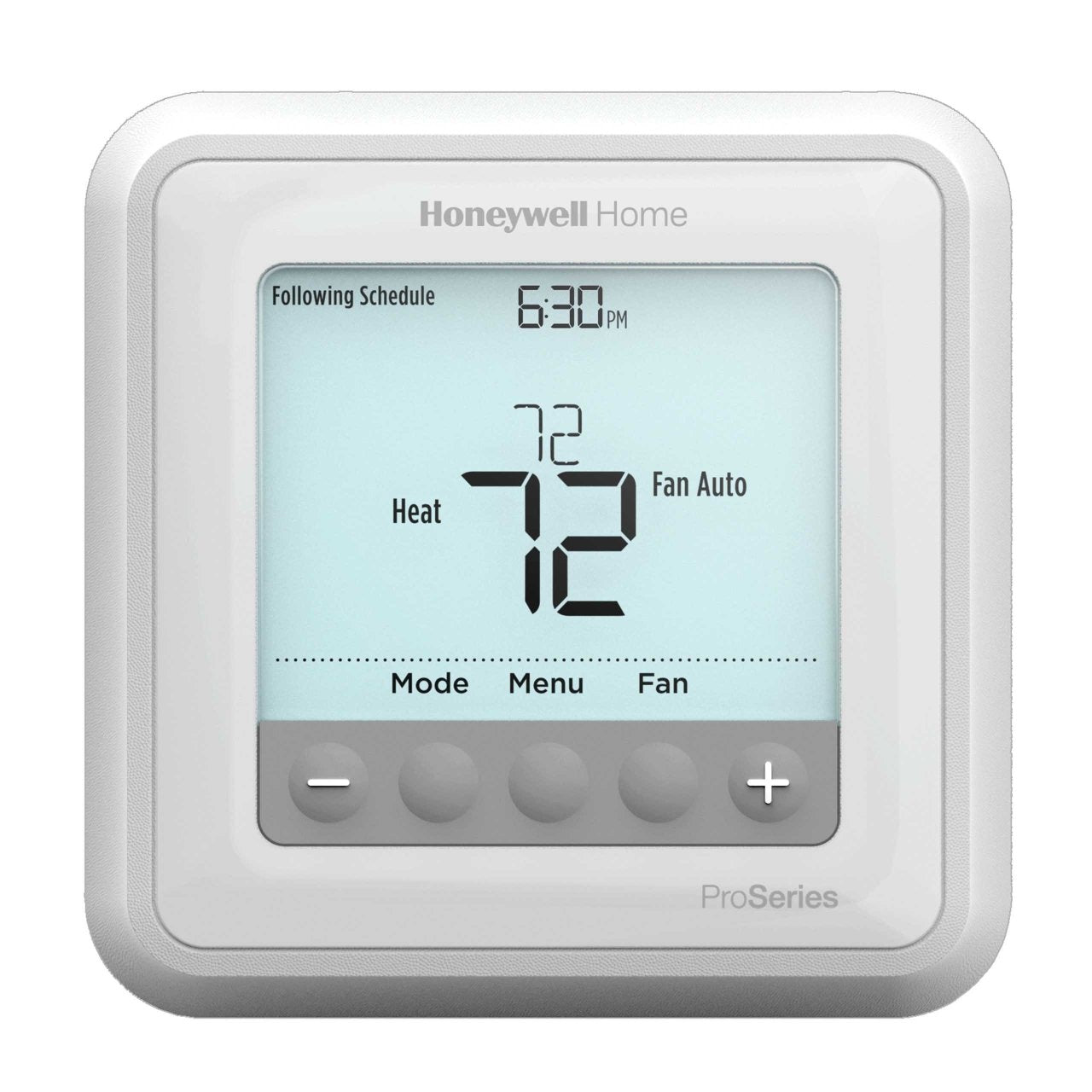

Resideo TH6320U2008 3HT/2CL prog 24V T6 stat 5.44 inch display replaces TH6320U1000, TH5320U1001

Product Description

The Resideo TH6320U2008 3HT/2CL PROG 24V T6 STAT is a programmable thermostat for commercial and industrial HVAC systems. It supports a 3-heat/2-cool configuration and offers time-based scheduling for energy management. Operating at 24 volts, it ensures broad compatibility. The LCD display provides clear visibility of temperature settings and operational information. Its compact design and intuitive programming interface facilitate installation and use in various environments.

• Supports up to 3 Heat/2 Cool heat pump and 2 Heat/2 Cool conventional systems.
• Offers 7-day, 5-2, 5-1-1, or non-programmable scheduling options.
• Features a large 5.44 inch display for clear visibility.

Product Highlights

Programmable thermostat with 3-heat/2-cool configuration and 24V operation.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: TH6320U2008

Technical Specifications

• MPN: TH6320U2008
• Brand: Resideo
• Manufacturer Abbreviation: HW
• Part ID: 764821
• Thermostat Type: Programmable, Digital, Low Voltage
• Programming Options: Programmable, 7 Day, 5-1-1 Day, 5-2 Day, Non-Programmable, Scheduled Disabled
• System Compatibility (Heat Pump): 3 Heat / 2 Cool
• System Compatibility (Conventional): 2 Heat / 2 Cool
• Display Size: 5.44 inch sq.
• Manufacturer Part Number (Alternate): 096432
• Series: T6 Pro
• Replaces MPN: TH6320U1000, TH5320U1001
• Application: 2H/2C Conventional Systems, 3H/2C Heat Pumps with auxiliary heat, Dual Fuel
• Control Range: Heat: 40 to 90 Deg F, Cool: 50 to 99 Deg F
• Fan Switching: Auto-On-Circ-Follow Schedule
• Mounting Type: Wall, UWP Wall Plate, Square
• Electrical Ratings: 24V (20-30 Vac, 0.02-0.50A or 0.02-1.00A - varies by terminal)
• Number of Stages: 2 Heat / 2 Cool Conventional or 3 Heat / 2 Cool Heat Pump - dual fuel and aux heat lockout with outdoor sensor
• System Switching: Heat-Off-Cool-Auto-Em Heat
• Terminal Designations: Rc, R, C, W, W2-Aux, Y, Y2, O/B, G, K, E, U, L/A, S

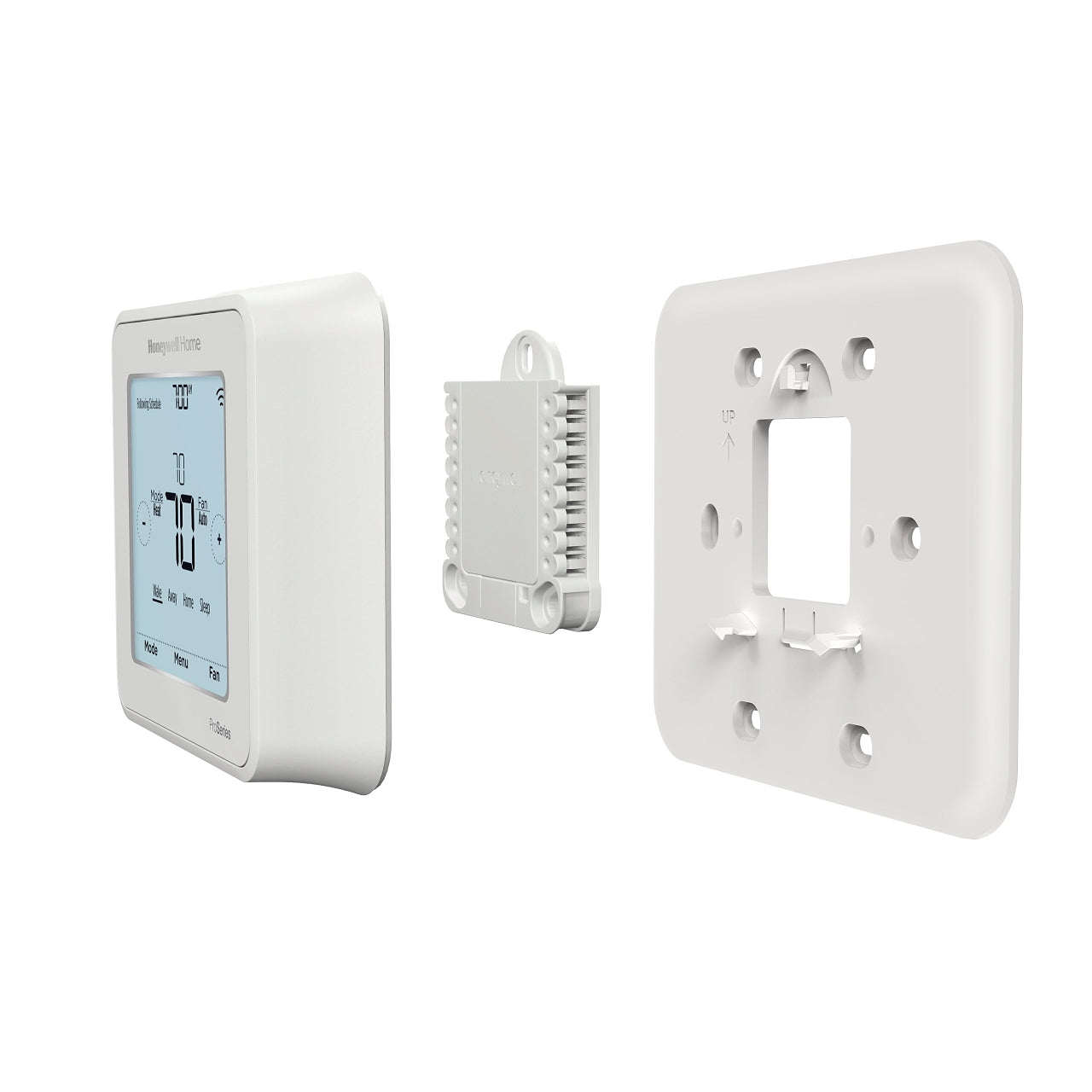

• Product Features: Uses UWP wall plate, Simple push-button functionality
• Smart Home Integration: No
• Display Type: LCD Screen, Monochrome
• Touchscreen: No
• Display Time Format: 24 Hour, 12 Hour (AM/PM)
• Displayed Information: Time, Mode, Indoor Temperature, Status Display
• Modes of Operation: Heat, Cool, Emergency Heat, Off, Auto
• Energy Star Certified: No
• Alerts and Reminders: Battery Replacement, Filter Change
• Heat-Cool Changeover: Auto, Manual
• Power Method: Battery Only (2 x AA), Hardwired Only (terminals R & C) or Harwired with Battery Backup (terminals R + optional C)
• Number of Batteries: 2
• Battery Life: 1 Year
• Battery Size: AA
• Battery Type: Alkaline
• WiFi: No
• Z-Wave: No
• RedLINK: No
• Sensor Type: Thermistor
• Ambient Operating Temperature (Max): 102 °F, 39 °C
• Ambient Operating Temperature (Min): 37 °F, 2.8 °C
• Differential Temperature: ± 1 °F, ± 0.5 °C
• Operating Relative Humidity (Max): 90% Non-condensing
• Operating Relative Humidity (Min): 5% Non-condensing
• Backlight Options: Adjustable
• Fan Function: Cycled, Continuous
• Clock Type: Year Clock
• Demand Response: No
• Running Current: 0.02 A to 1.0 A running
• Temperature Accuracy: 0.5°C, 1°F
• Electrical Connection Type: UWP Mounting System
• Interstage Differential Temperature: 1 to 1.5 °F
• Set Point Temperature (Max): 90 °F Heat, 32 °C Heat, 99 °F Cool, 37 °C Cool
• Set Point Temperature (Min): 40 °F Heat, 4.5 °C Heat, 50 °F Cool, 10 °C Cool
• Switch Type: SPDT Relay
• Product Height: 4.06 in, 104 mm
• Product Width: 4.06 in, 104 mm
• Product Depth: 1.09 in, 28 mm
• Interface: Button
• Dual Fuel: Yes
• Connectivity Technology: Wired
• Specific Uses: Air Conditioner, Furnace, Heat Pump
• Connectivity Protocol: BACnet MS/TP
• System Type: Conventional, Heat Pump, Hydronic
• Backup Auxiliary Heat Type: Electric Auxiliary Emergency Heat
