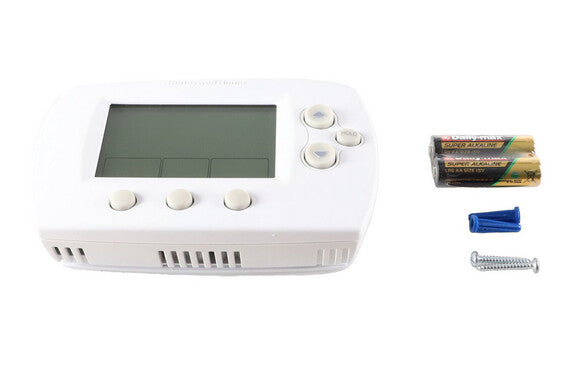

Resideo TH6110D1021 FocusPRO 6000 Series Thermostat Programmable 5-1-1 Day 1 Heat / 1 Cool Large Display 20 to 30 Vac or 750 mV

Product Description

The Resideo TH6110D1021 FocusPRO 6000 Series Thermostat is a programmable device designed for heat/cool or heat pump systems without auxiliary heat. It offers 5-1-1 day programmability, maintaining precise comfort control within +-1°F (+-0.5°C). This thermostat operates on 20 to 30 Vac or 750 mV, suitable for residential heating and cooling applications. It features a large display for easy readability and supports up to 1 Heat/1 Cool stages.

• Large, clear, backlit display for easy readability in various lighting conditions.
• Precise comfort control maintains consistent temperature within +/-1°F.
• Simplified programming and operation with built-in instructions for user convenience.

Product Highlights

Programmable thermostat with large display, precise temperature control, and easy battery replacement.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: TH6110D1021

Technical Specifications

• Application: Heat/Cool or Heat Pump without Auxiliary Heat
• Changeover: Auto/Manual Selectable
• Color: Premier White
• Differential Temperature: +-1°F (+-0.5°C)
• Display Size: Large 5.09 sq. in.
• Electrical Rating Cooling Current: 0.02 A to 1.0 A running
• Electrical Rating Fan Current: 0.02 A to 0.5 A running
• Electrical Rating Heating Current: 0.02 A to 1.0 A running
• Frequency: 50/60 Hz
• Mounting: Horizontal
• Operating Humidity: 5% to 90% RH, Non-Condensing
• Sensor Type: Thermistor
• Setpoint Range Heating: 40°F to 90°F (4.5°C to 32°C)
• Setpoint Range Cooling: 50°F to 99°F (10°C to 37°C)
• Stages: Up to 1 Heat/1 Cool
• Fan Switch Positions: AUTO-ON
• System Switch Positions: HEAT-OFF-COOL-AUTO, Selectable
• Terminal Designation: Rc, R, W (O/B), Y, G, C
• Input Voltage: 20 to 30 Vac or 750 mV
• Type: Programmable
• Display Type: LCD
• Controls: 4 to 6 soft keys, model dependent
• Switch Type: Y1, Y2, W, E 1A relay; W2, G, O/B, L, A 0.5A relay
• Memory: 10 years, then AA batteries required
• Battery: Optional, 2-AA
• Setpoint Limits: Full setpoint span (TH5220, TH6220, TB7220 only)
• Deadband: 3°F (1.7°C) fixed
• Clock: ±1 minute/month, 10-year battery TH6000, TB7220 only
• Compressor Cycle: Adjustable cycles per hour and minimum off time
• Wiring: 18 to 22 AWG, no shield required
• Night Setback Program Times: 5+2- or 5+1+1-day, 4 periods/day
• Operating Temperature: 32° to 120°F (0° to 49°C)
