Resideo TH4110U2005 1H/1C programmable 7-day 24V

Product Description

The RESIDEO TH4110U2005 is a programmable thermostat designed for 24-volt HVAC systems. It offers 1 Heat/1 Cool conventional system compatibility and 7-day programming for customized temperature settings. This dual-powered unit can operate on battery or hardwire, providing energy efficiency and simplified temperature management for optimal comfort.

• 1H/1C configuration for single heating or cooling stage control.
• 7-day programming allows customized temperature settings.
• Designed for 24-volt HVAC systems.

Product Highlights

Programmable thermostat with 1H/1C configuration and 7-day scheduling for 24V HVAC systems, ensuring energy efficiency and comfort.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: TH4110U2005

Technical Specifications

• MPN: TH4110U2005
• Brand: Resideo
• Manufacturer Code: HW
• Input Voltage: 20-30Vac
• System Compatibility: 1 Heat/1 Cool Heat Pump or 1 Heat/1 Cool Conventional
• System Switching: Heat-Off-Cool-Auto
• Fan Switching: Auto-On
• Changeover: Auto or Manual
• Heat Temperature Setting Range: 40-90 Degree
• Cool Temperature Setting Range: 50-99 Degree
• Power Source: Dual Powered (Battery or Hardwire)
• Mounting Type: Horizontal
• Programmability: 7 Day, 5-1-1, 5-2 or Non Programmable
• Thermostat Type: Digital; Low Voltage; Programmable; Heatpumps Thermostat
• WiFi: No
• RedLINK: No
• Color: White
• Modes of Operation: Heat; Cool
• Alerts and Reminders: Battery Replacement; Filter Change
• Display Language: English
• Displayed Information: Time; Mode; Indoor Temperature; Status Display; Backlit
• Energy Star Certified: No
• Interface: Button
• Display Type: Monochrome
• Display Size: 3.93 sq in.

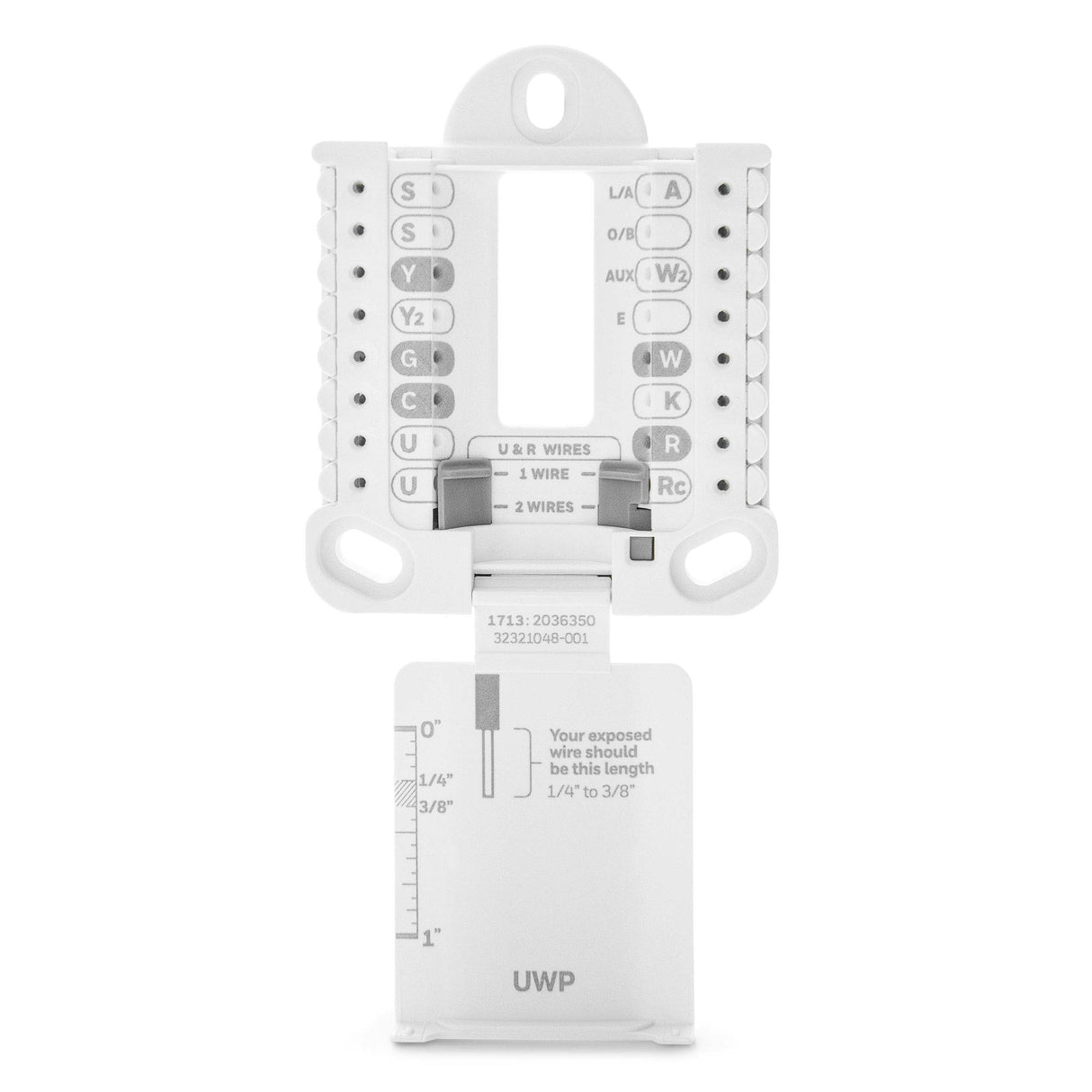

• Terminal Designations: R, RC, C, W, O/B, Y, G, L, and K
• Dual Fuel: No
• Ambient Conditions: 37 to 102°F, 5 to 90% RH, non-condensing
