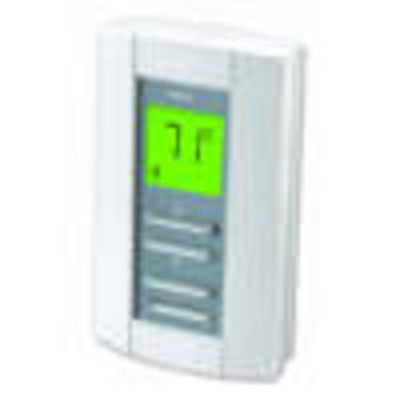

Resideo TH114-A-240D-B/U Line Volt Manual Thermostat for Electric Heat REPLACEMENT TH114-A-240D-B/U

Product Description

The RESIDEO TH114-A-240D-B/U is a line volt, non-programmable thermostat used to control ambient air or floor temperature. Compatible with baseboard heaters, radiant ceilings, and convector or fan-forced heaters. Includes documents/owners guide in English, French, and Spanish.

• Non-programmable thermostat
• Includes documents/owners guide in English, French, and Spanish
• 0.9 °F|0.5 °C Temperature Accuracy

Product Highlights

The RESIDEO TH114-A-240D-B/U thermostat is for electric heat and has a backlit screen.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: TH114-A-240D-B/U
• Country of Origin: N/A

Technical Specifications

• Color: White
• RedLINK: No
• Application: Baseboard heater|Radiant ceiling|Convector or Fan-forced Heater|Electric Heating
• Display_Type: LCD Screen
• For_Use_With: Aube CT240/CT241 Telephone Controller
• Thermostat_Type: Line Voltage|Non programmable
• Occupancy_Sensor: Not Applicable
• Backlight_Options: Backlight Button
• Terminal_Wire_Size: Not Applicable
• System_Mode_Options: Heat
• WiFi_Specifications: Not Applicable
• Temperature_Accuracy: 0.9 °F|0.5 °C
• ZWave_Specifications: Not Applicable
• Smart_Home_Integration: No
• Temperature_Control_Accuracy: 0.9 °F|0.5 °C
• Works_With_Resideo_Applications: Not Applicable
• Display Size: 10 sq in
• Displayed Information: Indoor Temperature, Heating Intensity Indicator
• Modes of Operation: Heat
• Program Type: Manual / Not Programmed
• Power Supply: Hardwired
• Frequency: 50 Hz, 60 Hz
• Sensor Type: Thermistor
• Ambient Operating Temperature (Max): 120 °F, 49 °C
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Differential Temperature: 1 °F, 0.5 °C
• Mounting Type: Vertical Mount
• Number of Wires: 2
• Set point Temperature (Max): 86 °F, 30 °C
• Set point Temperature (Min): 40 °F, 5 °C
• Switch Action: DPST
• Switch Type: Epoxy-soundproofed relay
• Product Height: 4.9 in, 124 mm
• Product Length: 2.8 in, 70 mm
• Product Width: 0.9 in, 23 mm
• Product Depth: 0.9, 23
• Brand: Resideo
• Manufacturer: Resideo Technologies Inc.
• Voltage: N/A
• Product category: Thermostats & Controllers
• Product subcategory: Non-Programmable
• Supplier part number: TH114-A-240D-B/U
• MPN: TH114-A-240D-B/U
• Condition: New
