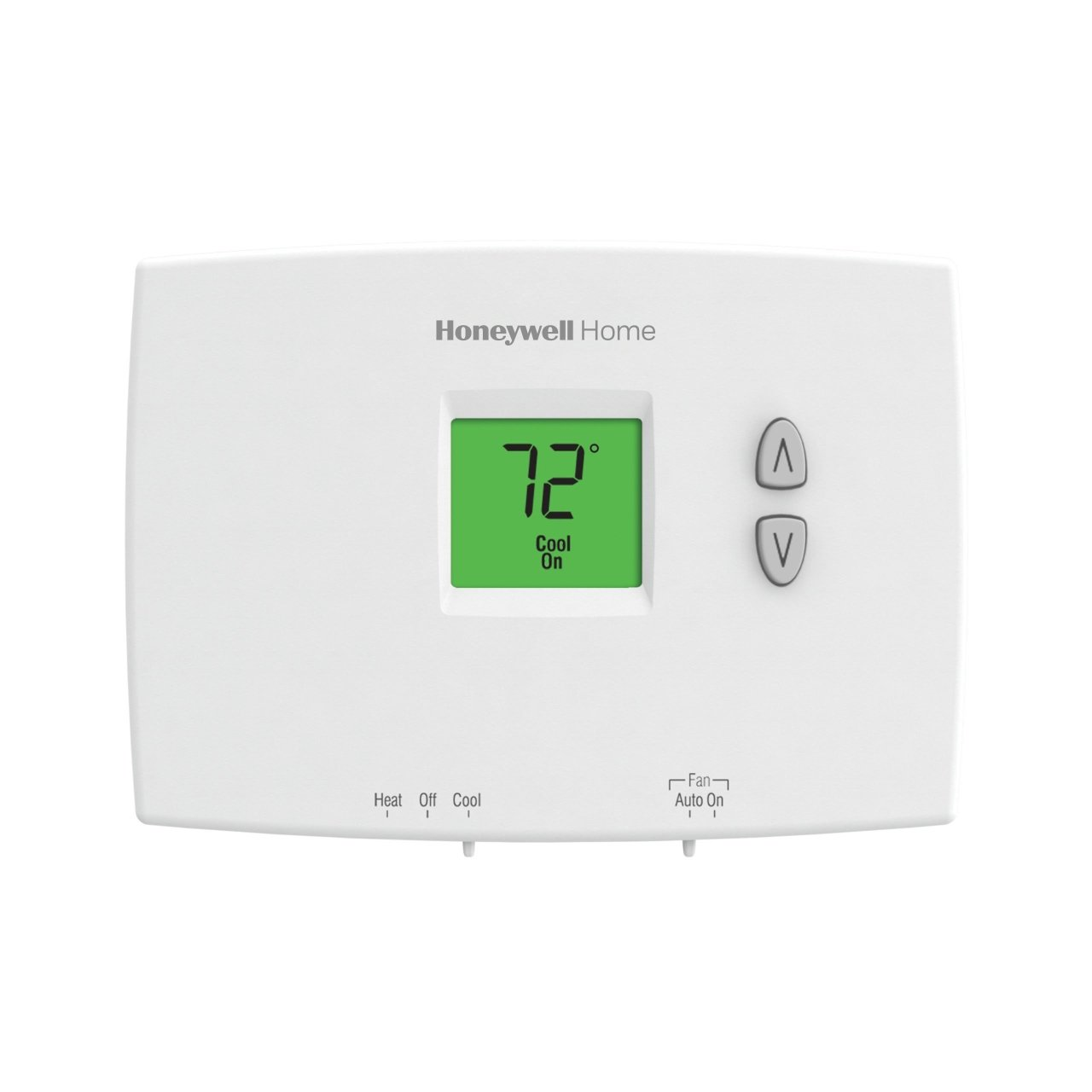

Resideo TH1110DH1003 Non-Programmable Thermostat 1 H / 1 C 20-30 VAC

Product Description

The Resideo PRO 1000 TH1110DH1003 is a non-programmable thermostat designed for HVAC systems. This device supports 1 heating and 1 cooling stage and operates on 20-30 VAC. Users benefit from dual power options and a manual changeover feature.

• Backlit LCD for visibility in low light.
• Simple manual controls for heating, cooling, and fan.
• Compatible with various conventional HVAC systems.

Product Highlights

This thermostat is ideal for managing comfort efficiently in homes. Its manual controls allow quick adjustments without programming.

Product Information

Standard Information

• Model: TH1110DH1003
• Mounting Type: Wall Mount (UWP Mounting System)

Technical Specifications

• Accuracy: ± 1 °F
• Amperage Rating: 0.02-1 A
• Battery Type: AAA
• Changeover: Manual
• Color: White
• Dimensions: 3-7/16 H x 4-5/8 W x 1-3/16 D
• Display Type: LCD
• Voltage Rating: 20-30 VAC
• Temperature Settings: 40-90 °F (Heat); 50-99 °F (Cool)
