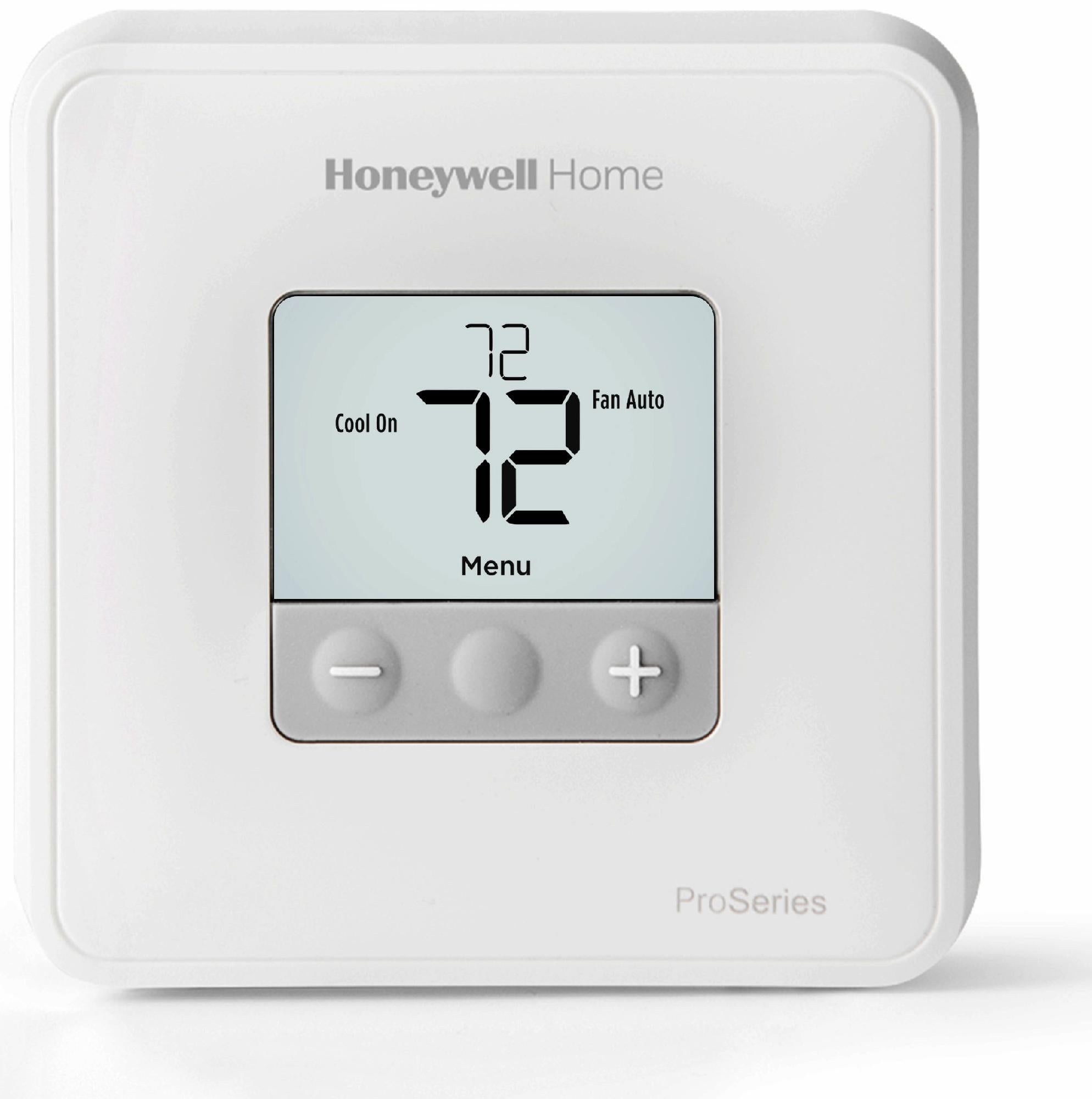

Resideo TH1110D2009 T1 Pro 1 Heat/1 Cool Non-Prog

Product Description

The Resideo TH1110D2009 T1 PRO 1 HEAT/1 COOL NON-PROG Thermostat is a simple and reliable choice for controlling temperature. It features an easy-to-use interface and non-programmable settings suitable for residential and commercial use. The thermostat has one heat and one cool stage, and accurate temperature sensing. It can be powered by battery or hardwired.

• Non-programmable operation for simple temperature control
• One heat and one cool stage
• Easy-to-read digital display

Product Highlights

Maintains a comfortable indoor temperature with energy-efficient operation. Easy to install and use with durable construction for long-lasting performance.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: TH1110D2009

Technical Specifications

• Item Number: TH1110D2009
• Brand: Resideo
• Application: 1H/1C Conventional Systems, Heat Pumps with No Auxiliary Heat
• Product Features: Easy to Use Soft key controls., Easy to Read LED back light., Comes with the standard UWP mounting system.
• Thermostat Type: Non programmable
• Stages: 1 Heat/1 Cool Heat Pump Systems, 1 Heat/1 Cool Conventional Systems
• Smart Home Integration: No
• Display Type: LCD Screen
• Display Size: 2.37 sq in
• Display Language: English
• Display Time Format: 24 Hour, 12 Hour (AM/PM)
• Modes of Operation: Heat, Cool
• Program Type: Manual / Not Programmed
• Energy Star Certified: No
• Power Supply: Battery Powered, Hardwired
• Power Source: Hardwired, Battery Operated
• Battery Life: 1
• Battery Size: AA
• Battery Type: Alkaline
• Warranty: 5 Years
• Includes: T1 Pro Thermostat, UWP Wall Plate, Decorative Cover Plate, Screws and anchors, 2 AA Batteries, Literature
• WiFi: No
• Z-Wave: No
• RedLINK: No
• Sensor Type: Thermistor
• Ambient Operating Temperature (Max): 102 °F, 39 °C
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Differential Temperature: ± 1 °F, ± 0.5 °C
• Backlight Options: None
• Temperature Accuracy: ± 1 °F, ± 0.5 °C
• Electrical Connection Type: UWP Mounting System
• Mounting Type: UWP Wall Plate
• Power Supply Frequency: 50 Hz, 60 Hz
• Set point Temperature (Max): Heat: 90 °F, Heat: 32 °C, Cool: 99 °F, Cool: 37 °C
• Set point Temperature (Min): Heat: 32 °F, Heat: 0 °C, Cool: 50 °F, Cool: 10 °C
• Shipping and Storage Temperature (Max): 120 °F, 49 °C
• Shipping and Storage Temperature (Min): -20 °F, -29 °C
• Mounting Location: Wall
• Switch Type: Relay
• Product Height: 4.06 in, 104 mm
• Product Width: 4.06 in, 104 mm
• Product Depth: 1.09 in, 28 mm
• Manufacturer: Resideo
• Minimum Qty: 1
• UPC: 085267344920
• Changeover: Automatic, Manual
• Power Type: Battery, Hardwired
• Terminal Designations: G, O/B
• Display: LCD
• Programmability: Non-Programmable
