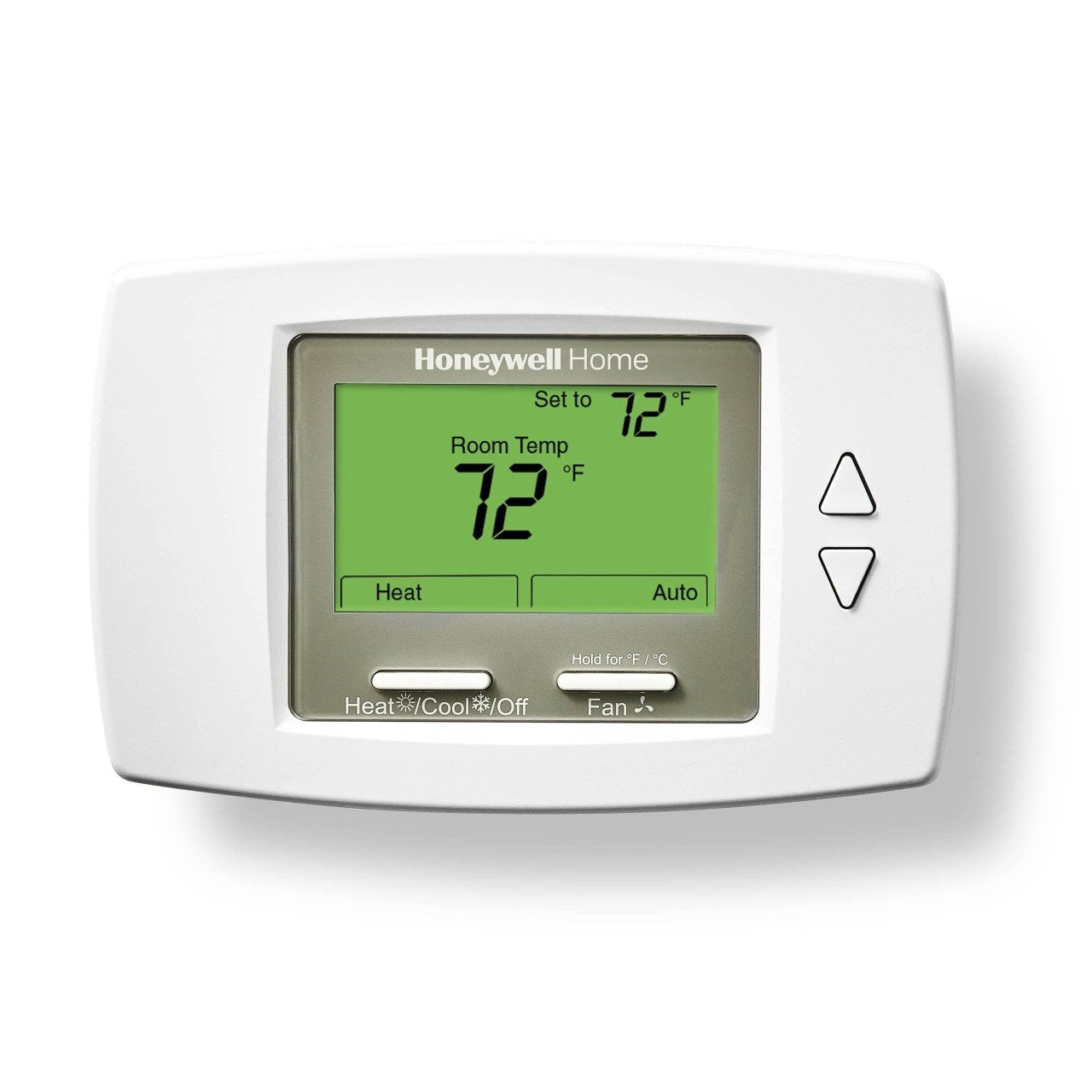

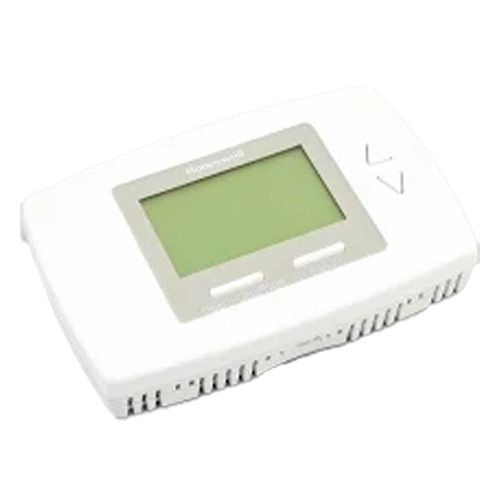

Resideo TB6575C1000 SuitePRO 3-Speed Digital fan-coil thermostat 120 VAC (3-Speed) TB6575C1000

Product Description

Resideo TB6575C1000 is a digital, non-programmable fan-coil thermostat that provides on/off control for 2-pipe and 4-pipe applications. It offers one heat/one cool stages, three fan speeds, and manual or automatic heat/cool changeover. The unit accepts 120 VAC power at 50/60 Hz, uses an NTC 20 kohm sensor, and features an LCD display with push-button controls; mounting supports vertical or horizontal installation.

• Controls: 1 heat / 1 cool stages with auto or manual changeover and 3-speed fan control for 2- and 4-pipe fan coil systems
• Power and environment: 120 VAC input, 50/60 Hz frequency, operating humidity 5 to 95% RH non-condensing
• Installation and interface: non-programmable digital thermostat with LCD display, push-button user interface, horizontal or vertical mounting; dimensions 3.82 in H x 5.82 in W x 1.13 in D

Product Highlights

Digital non-programmable fan-coil thermostat for 2/4-pipe systems with 3-speed fan control, 1 heat/1 cool stages, and 120 VAC power.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: TB6575C1000

Technical Specifications

• Brand: Resideo
• MPN: TB6575C1000
• Product Name: SuitePRO 3-Speed Digital Fan-Coil Thermostat
• Thermostat Type: Digital, Non-programmable, Fan coil
• Application: 2-pipe and 4-pipe fan coil
• Stages: 1 Heat / 1 Cool
• Fan Speeds: 3-speed
• Programmability: Non-programmable
• User Interface: Push-button
• Display Type: LCD screen
• Heat-Cool Changeover: Automatic, Manual, Seasonal
• Power Input: 120 VAC
• Frequency: 50 Hz, 60 Hz
• Sensor Type: NTC 20 kohm
• Operating Humidity: 5% to 95% RH, non-condensing
• Mounting Type: Horizontal on 2 x 4 in single gang box; vertical on 2 x 4 in or 4 x 4 in junction box with optional wall plate
• Mounting Location: J-Box
• Dimensions: 3.82 in (97 mm) H x 5.82 in (148 mm) W x 1.13 in (29 mm) D
• Approvals and Standards: CSA certified; FCC Part 15, Class B; meets same requirements as UL-873
• Modes of Operation: Heating, Cooling
• Product SKU: TB6575C1000/U
