Resideo TAZ4H Add-a-Zone Panel 4 Zones

Product Description

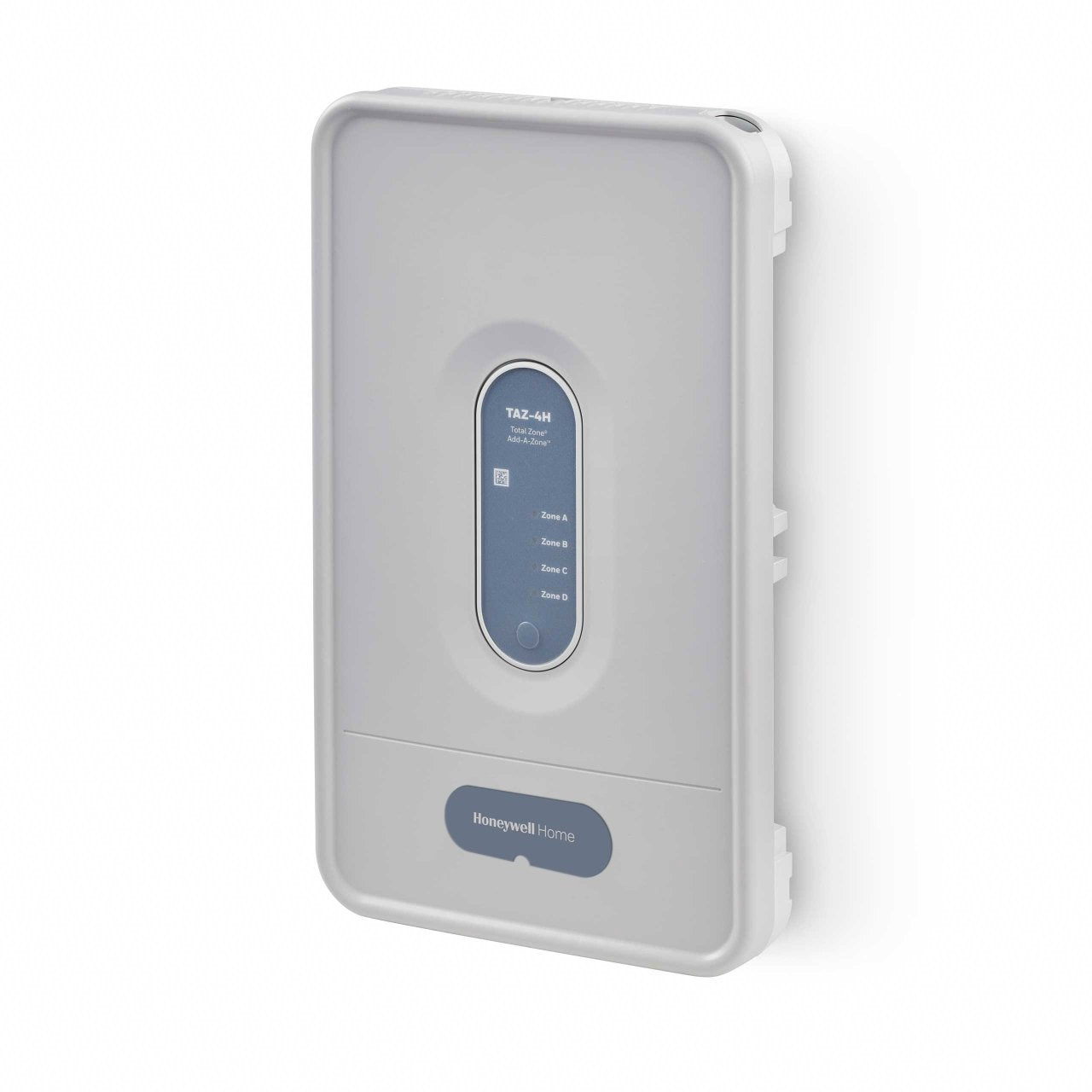

The RESIDEO TAZ4H is a zone panel designed to expand the zoning capabilities of the HZ432 system. It allows for the addition of up to four extra zones per TAZ-4H unit, enabling a total system capacity of up to 32 zones. Operating on 18-30 VAC 50/60 Hz with a minimum 40 VA transformer, it has a maximum current draw of 8.5 VA. This panel can be mounted on a wall, stud, or return duct and is compatible with most 24 volt thermostats.

• Flexible mounting options with mounting holes for return duct, wall, or stud
• Easy wiring with Push terminals
• Easy troubleshooting with Checkout mode, zone lights, and contacts to measure voltage

Product Highlights

Expands HZ432 zoning system by adding up to four zones per panel, supporting a total of 32 zones.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: TAZ4H

Technical Specifications

• Input Voltage: 18-30 VAC 50/60 Hz transformer of 40 VA or more
• Current Draw: 8.5 VA max
• Wiring: 18- or 20-gauge solid (not stranded) wire
• Operating Humidity: 5% to 90% RH non-condensing
• Operating Temperature: -40° to 165 °F (-40° to 74 °C)
• Certifications: Complies with FCC Class B, part 15 requirements
• Mounting Type: With either 2 user-supplied screws at center line to mount onto 2 x 4| With 4 screws at corners for wall mount.
