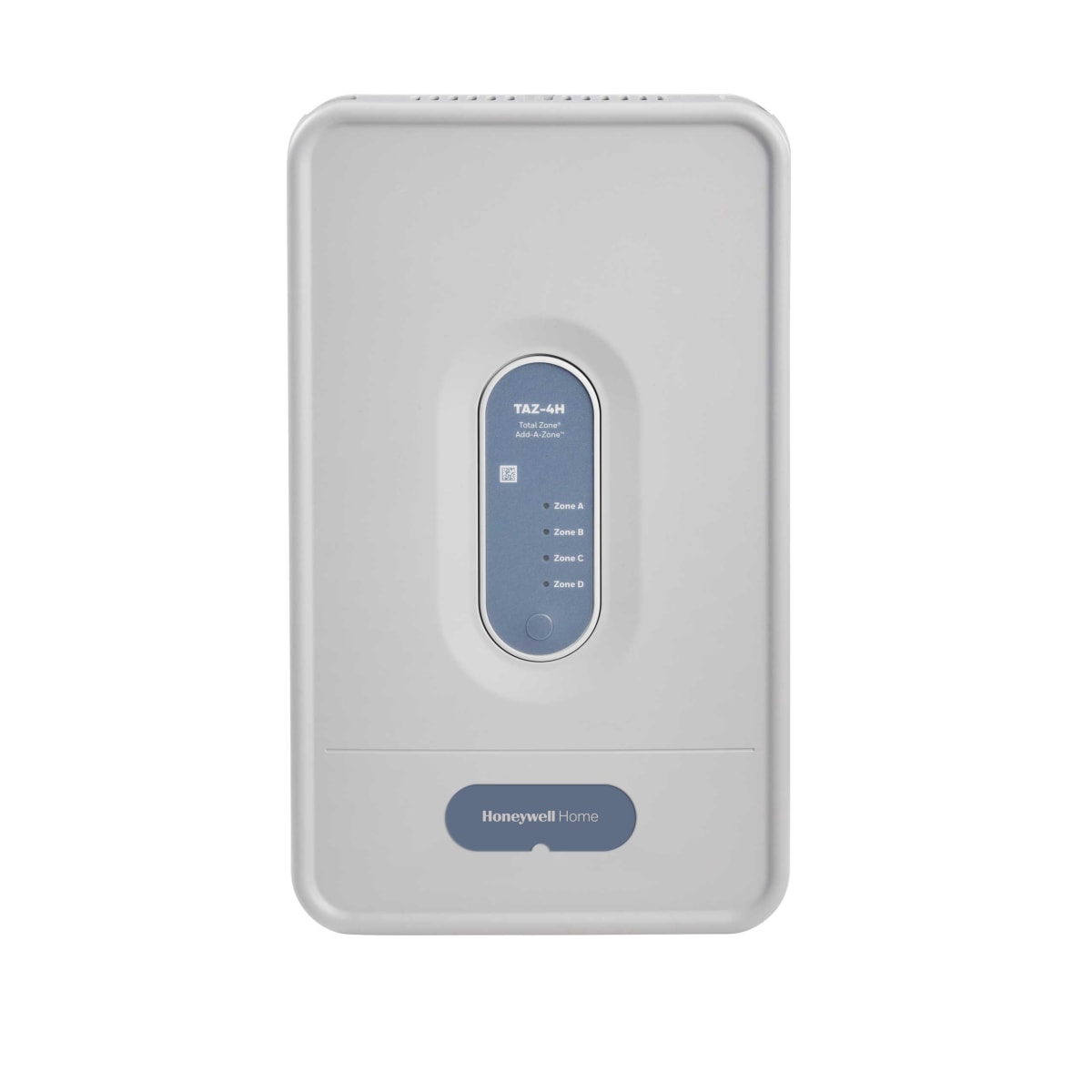

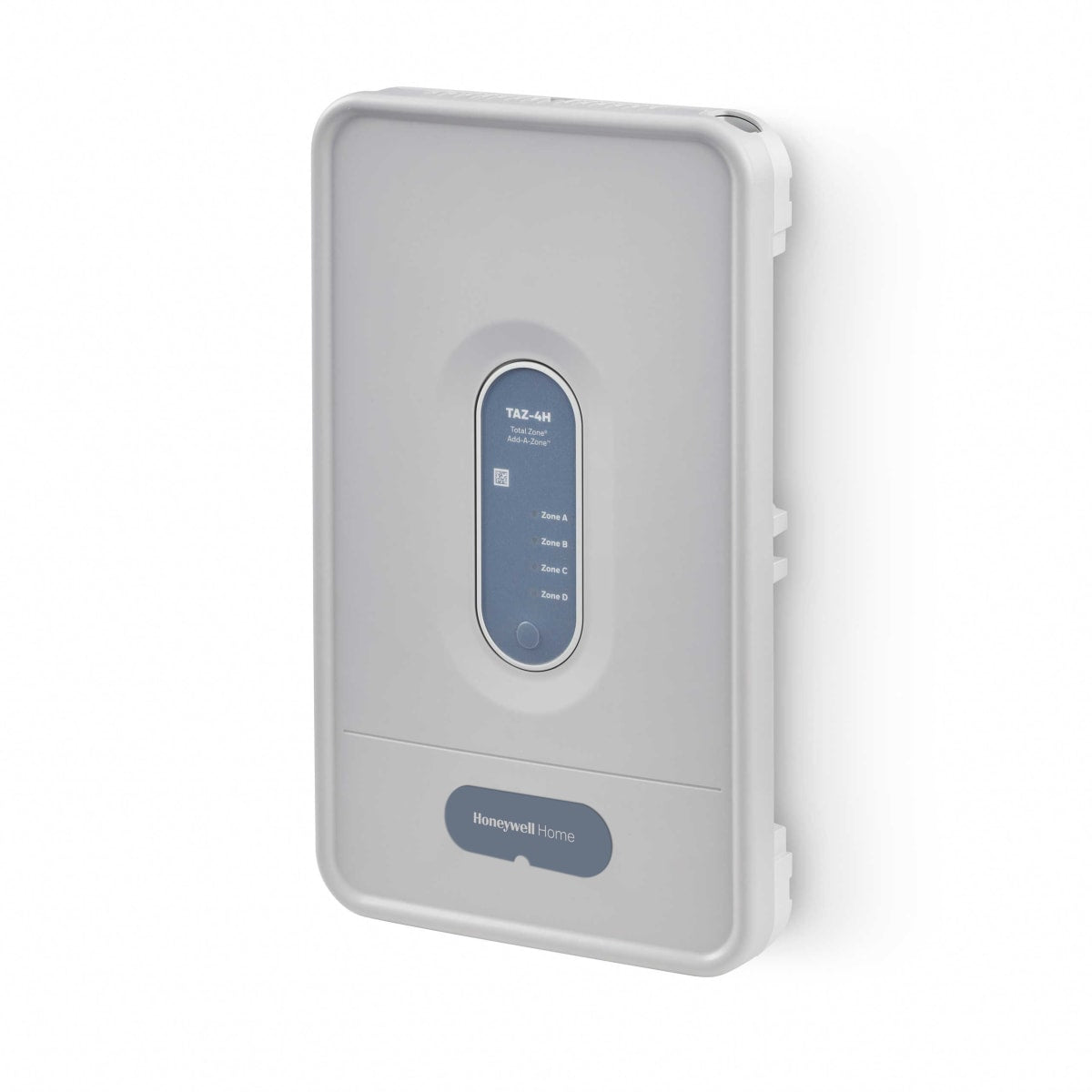

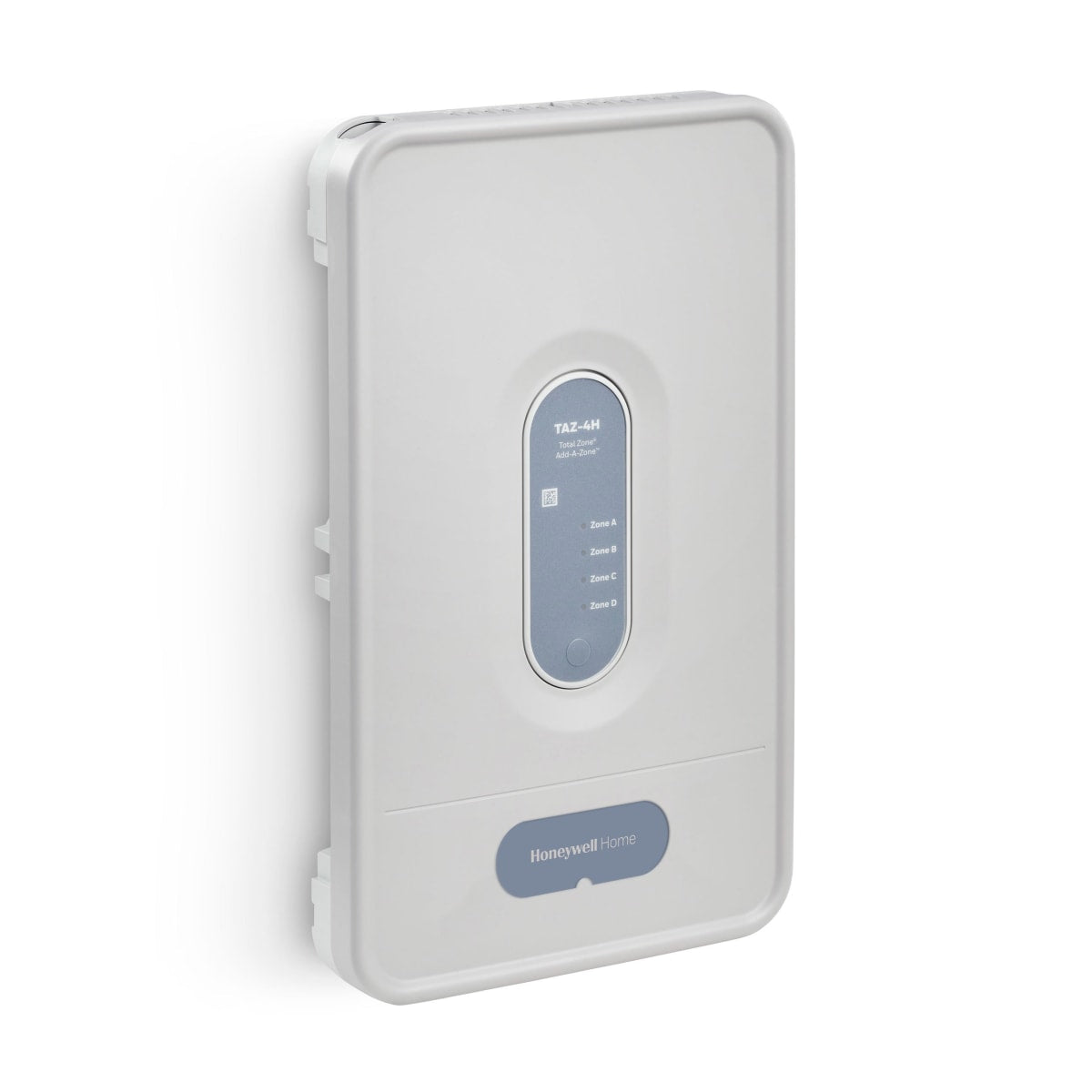

Resideo TAZ-4H/U TAZ-4H Add-A-Zone Panel

Product Description

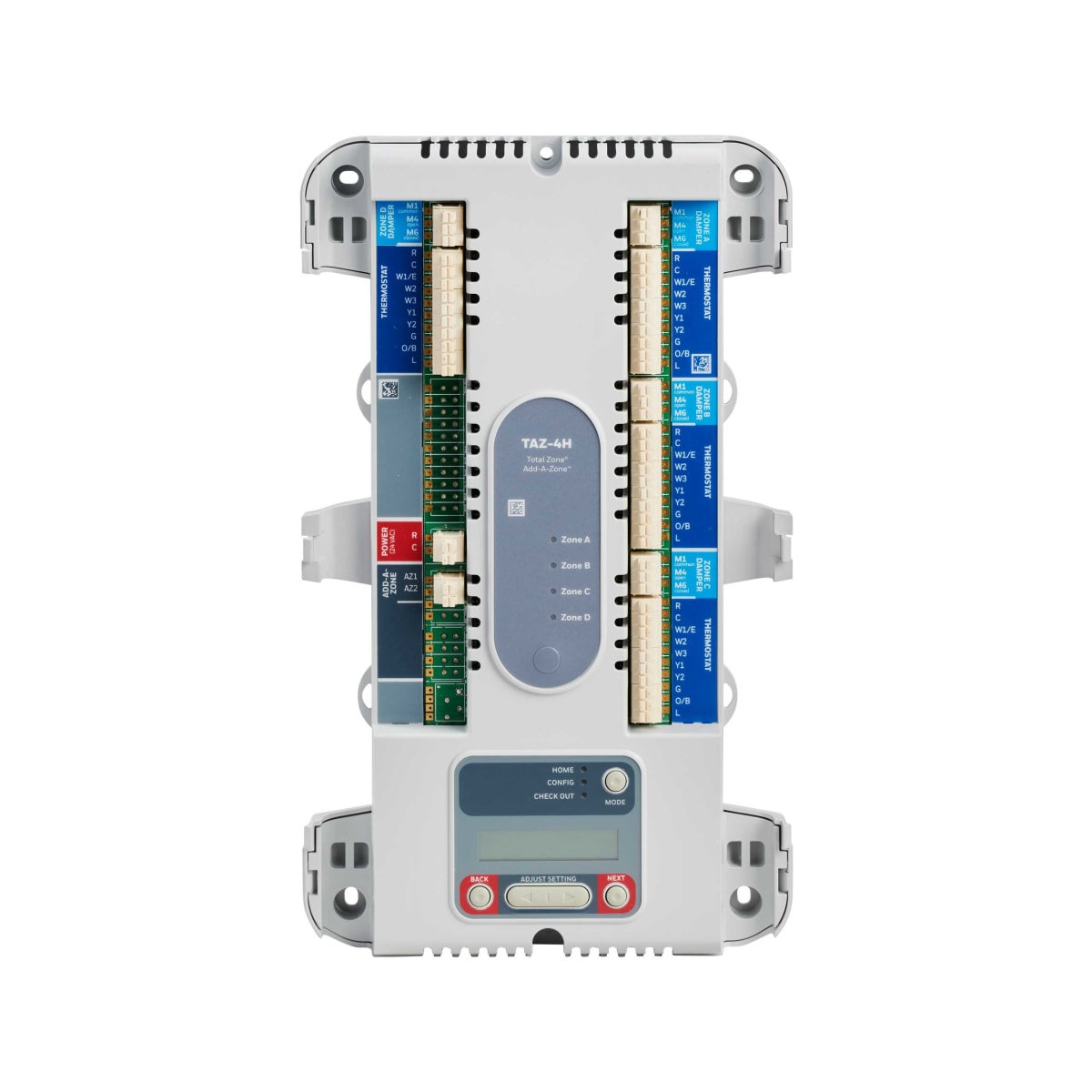

Resideo TAZ-4H/U is an add-a-zone panel designed for zoning systems that support up to 32 zones. This product allows you to easily extend your existing HVAC zoning system by adding up to four zones to an HZ432 panel. The user-friendly LCD display and robust push terminals simplify both wiring and configuration for installers.

• Supports expansion of up to 32 zones with HZ432 panels
• Simple installation process with clear digital instructions
• LED indicators show the status of dampers

Product Highlights

This panel enhances HVAC systems by providing control over multiple zones efficiently.

Product Information

Standard Information

• Brand: Resideo
• MPN: TAZ-4H/U

Technical Specifications

• Compatible With: HZ432 Zone Panel, conventional and heat pump thermostats
• Number of Expanded Zones: 4 for each panel up to 32 zones
• Operating Relative Humidity: 5% - 90% RH non-condensing
• Display Type: LCD Screen
• Checkout Procedure: Yes
• Approvals and Standards: Complies with FCC Class B, part 15 requirements
