Resideo T991a1012 h/w t991a-1012 temp controller

Product Description

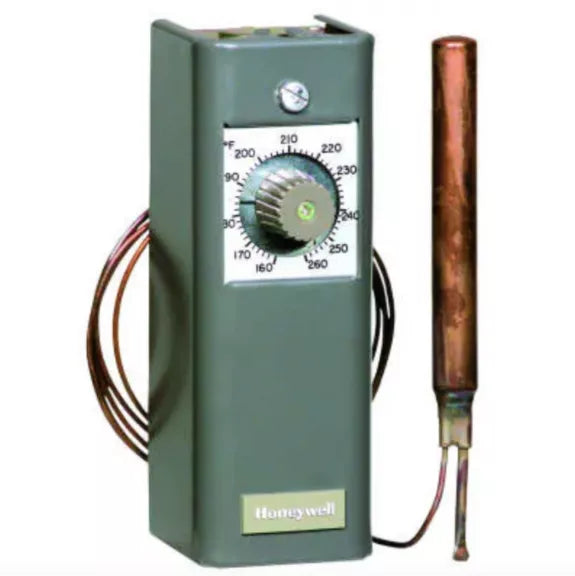

The RESIDEO T991A1012 H/W T991A-1012 Temp Controller is a proportional temperature controller designed for modulating control of water or air temperatures in ducts and tanks. It features a 1/2 Inch Diameter x 4-3/16 Inch Length Copper Bulb with a 20 Foot Length Capillary. The controller compensates for ambient temperature effects and allows remote mounting of the sensing element.

• Features a 1/2 Inch Diameter x 4-3/16 Inch Length Copper Bulb with a 20 Foot Length Capillary
• Compensates for effects of ambient temperature on the case and tubing
• Setpoint may be read and adjusted through cover

Product Highlights

This proportional temperature controller is ideal for maintaining precise temperature control in duct and tank applications. It offers a modulating output and remote sensing capabilities.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: T991A1012

Technical Specifications

• Application: Duct, Tank
• Connection Type: 1/2 Inch Conduit
• Contact Rating: 24 to 30 Volt AC 50/60 Hertz
• Finish: Gray
• Maximum Temperature Rating: 125 Deg F
• Number of Sensor Inputs: 1
• Set Point Temperature Rating: 0 to 100 Deg F
• Throttling Range: 3 to 30 Deg F
• Type: 1/2 Inch Diameter x 4-3/16 Inch Length Copper Bulb, 20 Foot Length Capillary, Modulating
• Analog Output: (1) 135 Ohm Potentiometer
