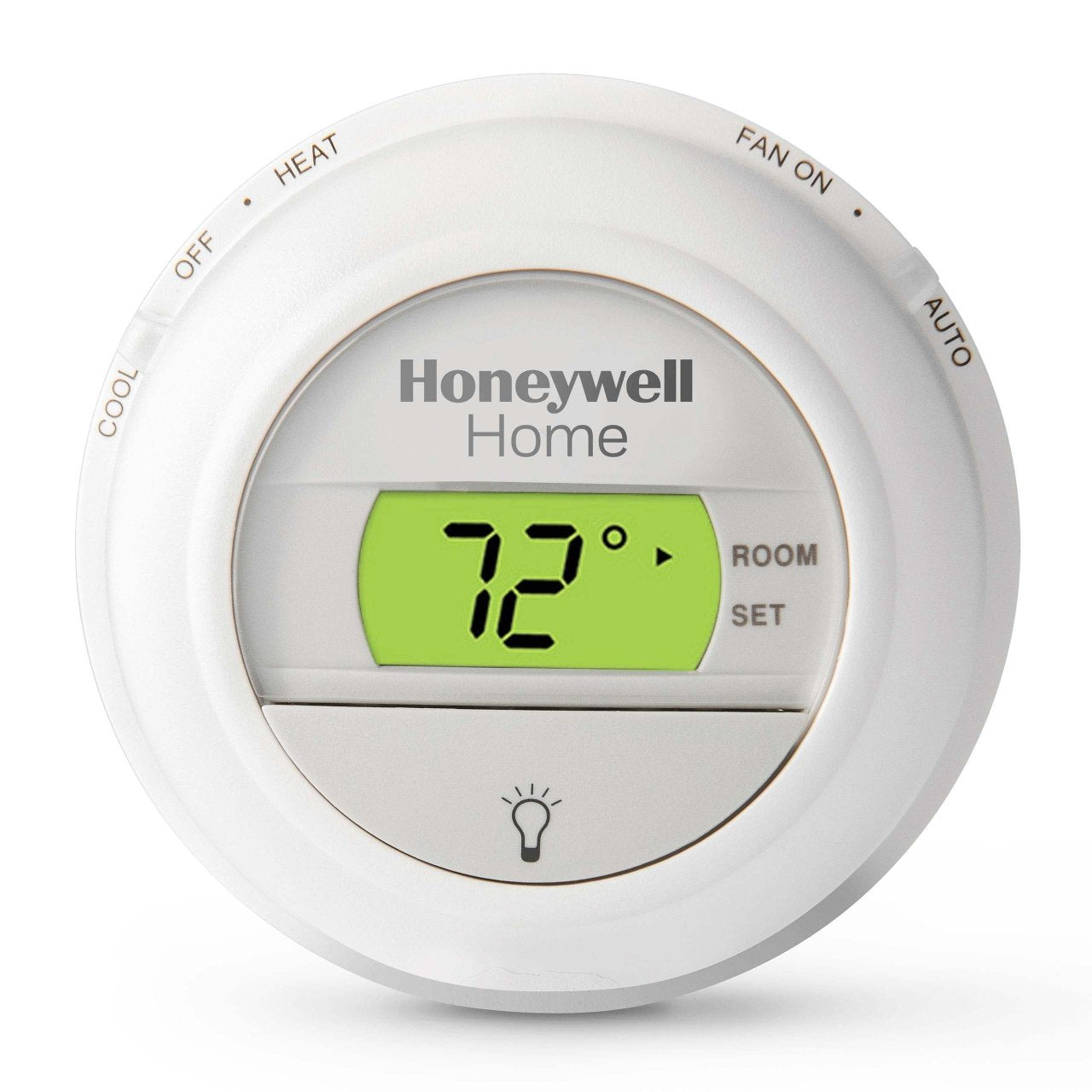

Resideo T8775C1005 Digital Rd Ht/Cool Thermostat

Product Description

The RESIDEO T8775C1005 digital thermostat is a non-programmable thermostat with manual changeover, designed for 1-heat/1-cool systems. It operates on 18 to 30 Volt AC at 60 Hertz. The thermostat features an electronic switch and a thermistor sensor element. It is suitable for conventional systems and heat pumps.

• Attractive styling complements any decor
• Features a one-touch backlit display
• Provides single-stage temperature control

Product Highlights

This digital thermostat offers single-stage, non-programmable temperature control for 24V systems with easy-to-read display and on-demand backlighting.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: T8775C1005

Technical Specifications

• Type: Digital, Non-Programmable, Manual Changeover, 1-Heat/1-Cool
• Cover Type: Round
• Voltage Rating: 18 to 30 Volt AC 60 Hertz
• Switch Type: Electronic
• Temperature Rating: 40 to 90 Deg F (Heat), 45 to 99 Deg F (Cool) (Setting)
• Size: 3-11/16 Inch Diameter x 1-7/16 Inch Depth
• Accuracy: +/- 1 Deg F
• Power Method: Powered Through Heat-Cool System Control
• Sensor Element: Thermistor
• Display Size: 0.75 Square Inch
• Terminal Designation: R, RC, W, Y, G, O, B
• Humidity Rating: 5 to 90 Percent RH (Non-Condensing)
• Switch Position: Heat-Off-Cool (System), Auto-On (Fan)
• Application: Conventional System, Heat Pump
• Stages: 1 Heat/1 Cool
