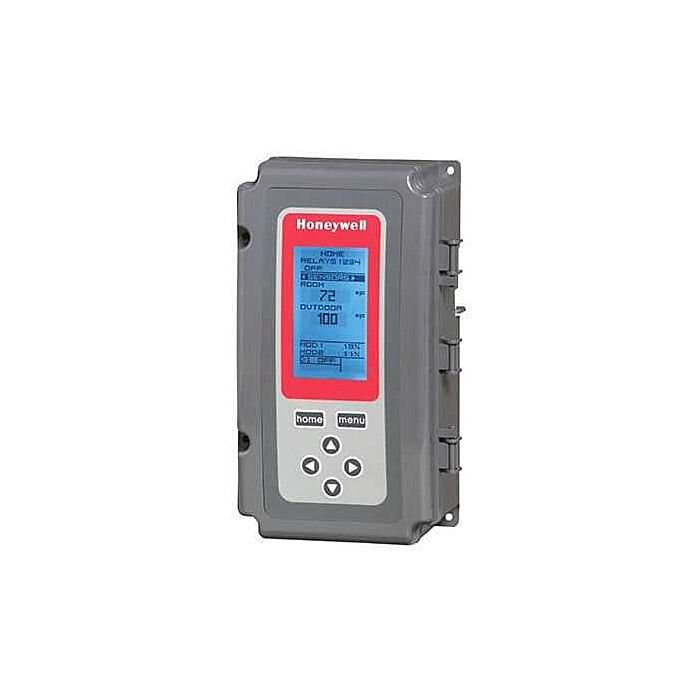

Resideo T775R2027 Electronic Temperature Controller 8 VA (Includes 2 Sensors)

Product Description

Resideo T775R2027 is an electronic temperature controller with two temperature sensor inputs, two SPDT relay outputs and two analog outputs, supplied with two sensors (50021579-001). The controller supports modulating control with PID tuning, time clock scheduler/digital input for setback and disable options, and modulating high/low limit protection. It mounts in a NEMA 1 conduit enclosure and is intended for heating, cooling, boiler and chiller control.

• Two temperature sensor inputs, two SPDT relay contacts and two analog outputs; includes sensors 50021579-001
• Modulating control with PID (integral and derivative), time clock scheduler/digital input, reset and minimum off time
• Temperature range from -40 to 125 degrees F (50 Hz) and -40 to 140 degrees F (60 Hz); NEMA 1 conduit connection

Product Highlights

Electronic temperature controller with 2 sensor inputs, 2 SPDT relays, 2 analog outputs and PID control

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: T775R2027

Technical Specifications

• Brand: Resideo
• Manufacturer: Honeywell International Inc. / Resideo Technologies, Inc.
• Manufacturer Part Number: T775R2027
• Series/Model: T775
• Number of Sensor Inputs: 2
• Analog Outputs: 2
• Contact Configuration: 2 SPDT
• Contact Rating: 10 A at 24 VAC (resistive); 9.8 A at 120 VAC / 4.9 A at 240 VAC (full load); 58.8 A at 120 VAC / 29.4 A at 240 VAC (locked rotor); 125 VA pilot duty; 1/2 HP at 120/240 VAC
• Power Consumption: 8 VA at 60 Hz; 10 VA at 50 Hz
• Temperature Range: -40 to 125 degrees F (50 Hz); -40 to 140 degrees F (60 Hz)
• Set Point Temperature Rating: -40 to 248 degrees F
• Differential Temperature Rating: 1 to 150 degrees F
• Sensor Element: 1097 ohm PTC at 77 degrees F
• Maximum Distance to Sensor: Up to 1000 foot
• Connection Type: Conduit
• Enclosure Rating: NEMA 1
• Applications: Heating, Cooling, Boiler, Chiller
• Approvals/Certifications: UL (Canada and US), CUL, CE, C-Tick
• Overall Dimensions: 4-13/32 inch W x 2-15/16 inch D x 8-5/32 inch H
• UPC: 085267299299
• UNSPSC: 41112200
