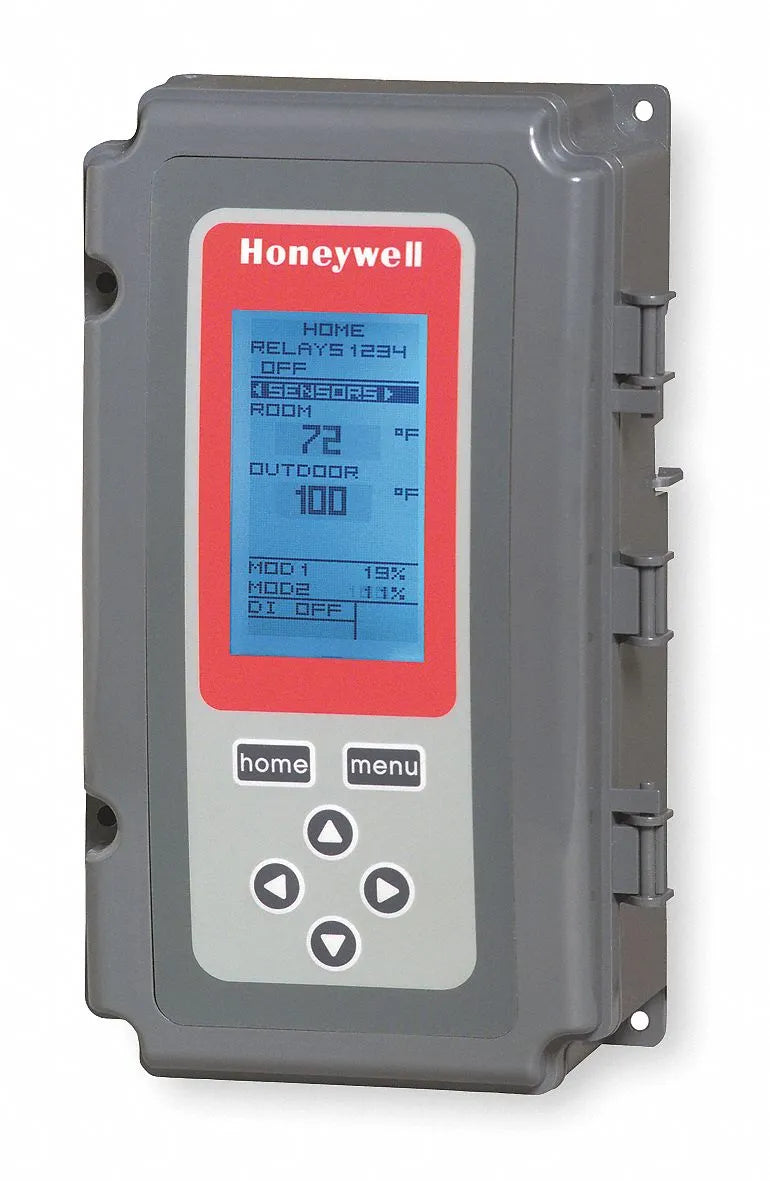

Resideo T775M2048 Electronic Remote Temperature Controller 24/120/240 V AC (1/4 in x 2 in bulb)

Product Description

Resideo T775M2048 is an electronic remote temperature controller that provides modulating temperature control with two SPDT contacts and an external sensor. The unit accepts 24 V or 120/240 V AC (50/60 Hz) and supports control/set point ranges from -40 deg F to 248 deg F with an adjustable differential of 1 to 150 deg F. It includes a 1/4 in diameter x 2 in sensing bulb (1097 ohm PTC at 77 deg F) and is enclosed to NEMA 1 standards for commercial and agricultural applications.

• Two SPDT relays with contact ratings: 10 A at 24 VAC (resistive); 9.8 A at 120 VAC / 4.9 A at 240 VAC (full load); 58.8 A at 120 VAC / 29.4 A at 240 VAC (locked rotor); 125 VA pilot duty; 1/2 HP at 120/240 VAC
• Input voltage 24 V or 120/240 V AC (50/60 Hz); control/set point range -40 deg F to 248 deg F; adjustable differential 1 to 150 deg F
• Includes one 1097 ohm PTC sensor (1/4 in diameter x 2 in bulb); maximum sensor distance up to 1000 ft; NEMA 1 enclosure; approvals UL (US/Canada), CUL, CE, C-Tick

Product Highlights

2 SPDT relays; 24/120/240 V AC operation; adjustable differential 1–150 deg F; includes 1/4 in x 2 in 1097 ohm PTC sensor; NEMA 1 enclosure.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: T775M2048

Technical Specifications

• Brand: Resideo
• Manufacturer Part Number: T775M2048
• Series/Model: T775
• Product Type: Electronic remote temperature controller
• Input Voltage: 24 V or 120/240 V AC, 50/60 Hz
• Control Range: -40 to 248 deg F
• Set Point Temperature Rating: -40 to 248 deg F
• Differential (Throttling Range): 1 to 150 deg F
• Contact Configuration: 2 SPDT
• Contact Rating: 10 A at 24 VAC (resistive); 9.8 A at 120 VAC / 4.9 A at 240 VAC (full load); 58.8 A at 120 VAC / 29.4 A at 240 VAC (locked rotor); 125 VA at 120/240 VAC (pilot duty); 1/2 HP at 120/240 VAC
• Sensor Element: 1097 ohm PTC at 77 deg F
• Sensor Bulb Diameter: 1/4 in
• Sensor Bulb Length: 2 in
• Maximum Distance to Sensor: Up to 1000 ft
• Enclosure Rating: NEMA 1
• Dimensions (H x W x D): 8.15625 in x 4.40625 in x 2.9375 in
• Application: Commercial, Agricultural
• Approvals/Certifications: UL (US and Canada), CUL, CE, C-Tick
• UPC: 085267299251
• Catalog Number: T775M2048
