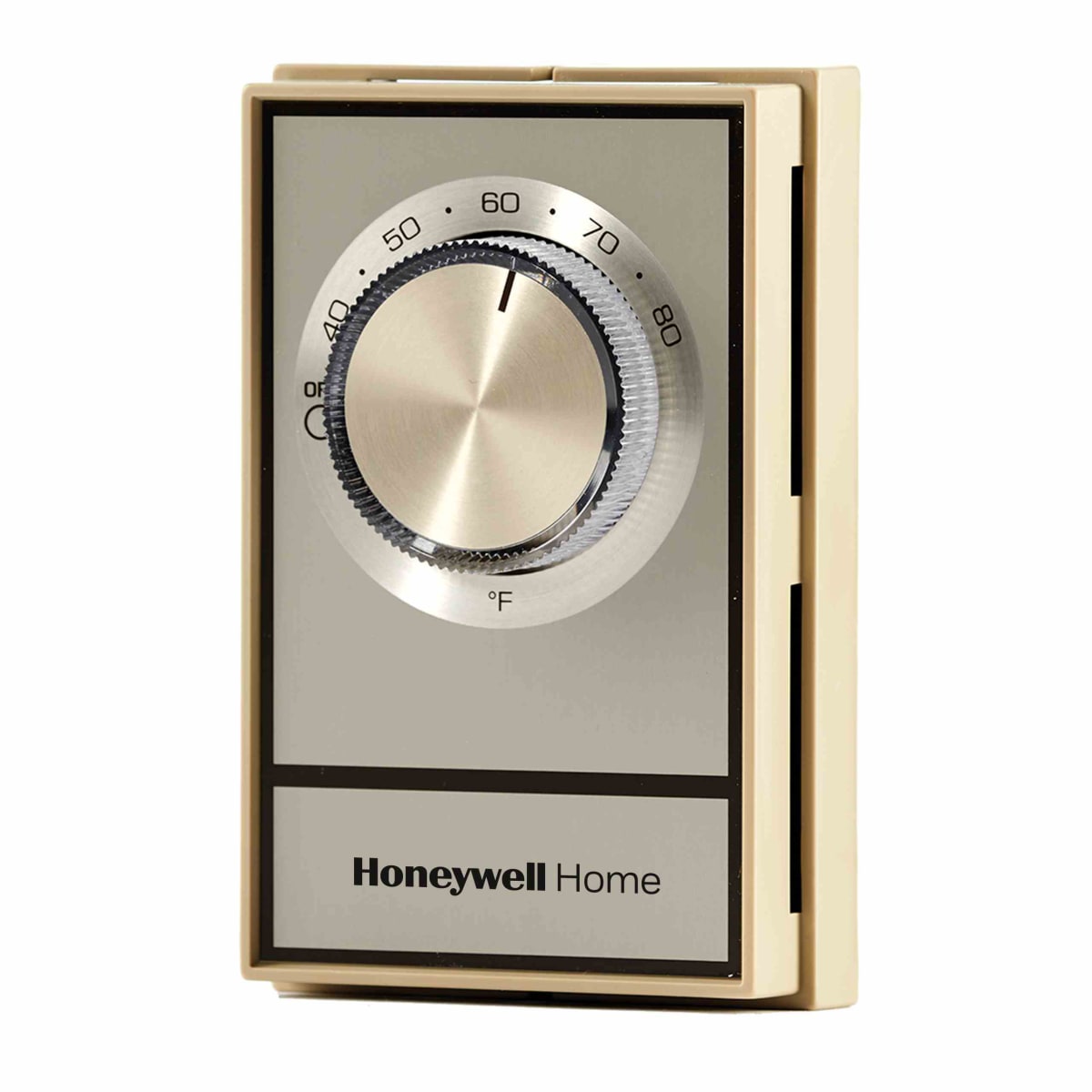

Resideo T498B1553/U Brush Gold Electric Heat Thermostat - 60 Hz

Product Description

The Resideo T498B1553/U is a brush gold electric heat thermostat designed for line voltage control of electric heating systems. This thermostat utilizes a snap action switch that engages the heating circuit when the temperature falls below the set level. It can replace any standard wall-mounted electric heat thermostat and is available in both Celsius and Fahrenheit models.

• Compatible with electric baseboards, convectors, and fan forced heaters.
• Easy to install with color-coded leads.
• Includes a long-lasting micro switch mechanism for reliable operation.

Product Highlights

This thermostat is engineered for effective temperature control and is constructed with a rugged plastic mounting base.

Product Information

Standard Information

• Brand: Resideo
• Part Number: T498B1553/U

Technical Specifications

• Temperature Accuracy: ±1°F; ±2°C
• Operating Voltage: 120/208/240/277 VAC
• Weight: 0.45 lbs
• Dimensions: 4.6 inches (length) x 3 inches (width) x 2.7 inches (height)
• Warranty: 1 Year
• CSA Listed: Yes
• UL Listed: Yes
• Mounting Style: Vertical
