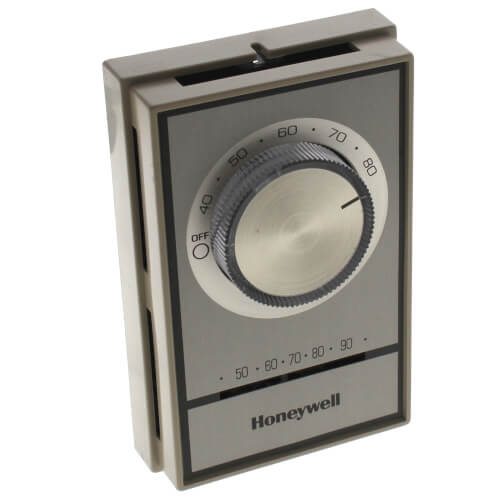

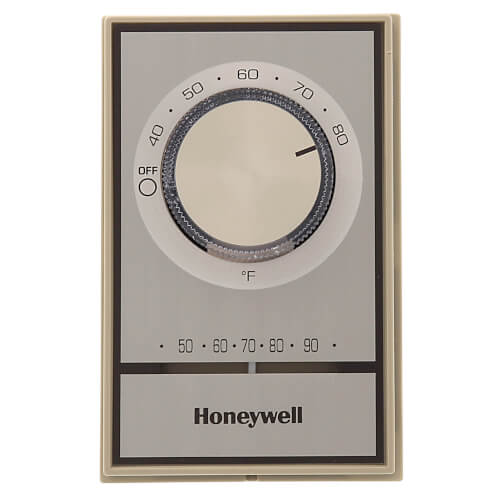

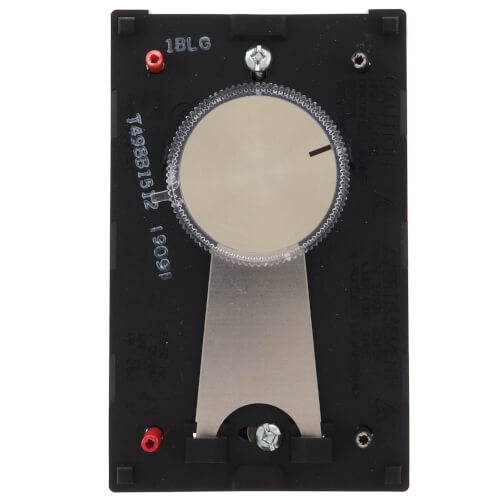

Resideo T498B1512 ELEC.HT TSTAT DPST 40-80F

Product Description

The Resideo T498B1512 is an electronic heating thermostat designed for both heating and cooling systems. This device is built to control systems operating within a temperature range of forty to eighty degrees Fahrenheit. Its dual-pole, single-throw switch provides functionality suitable for commercial and industrial applications.

• Controls both heating and cooling systems
• Temperature range from forty to eighty degrees Fahrenheit
• Easy installation with a compact design

Product Highlights

This thermostat ensures accurate temperature management while promoting energy efficiency. It has a straightforward interface that helps in quick installation and maintenance.

Product Information

Standard Information

• Brand: Resideo
• MPN: T498B1512

Technical Specifications

• Item Number: T498B1512
• Amperage: 22 at 120V, 208V, 240V; 19 at 277V
• Voltage: Line Voltage 120V, 208V, 240V, 277V
• Temperature Range: 40°F - 80°F

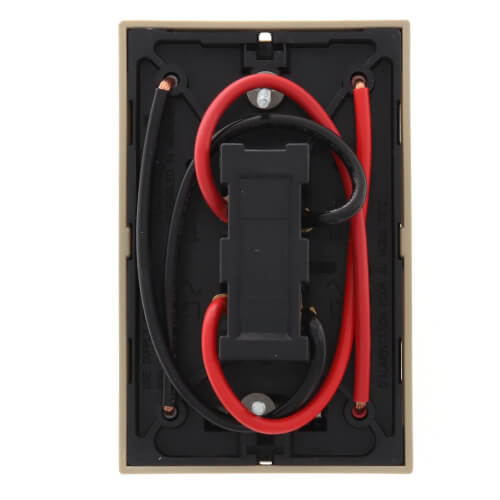

• Wiring: 6 Copper Leadwires
• Mounting Base: Compatible with standard 2 x 4 inch boxes
• User Interface: Mechanical, Non-Programmable
• Dimensions: 3.15 inches (Length) x 4.9 inches (Width) x 2.85 inches (Height)
