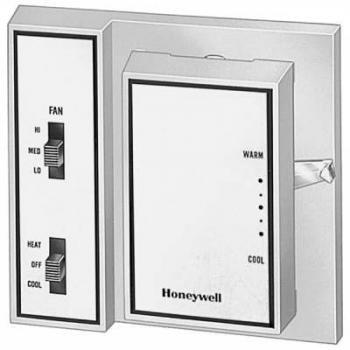

Resideo T4039M1004 Cover Assembly, For T4039 LE- Ss Thermometer, Manual Switch, Marked: Off-Hi-Med-Lo, With Positive Off

Product Description

The Resideo T4039M1004 is a cover assembly designed for use with the T4039 LE-SS thermometer. This manual switch features clear markings for Off, Hi, Med, and Lo. It provides positive off functionality, allowing for accurate temperature control.

• Operates one or two valves effectively.
• Automatic models feature a positive deadband that separates heating and cooling circuits.
• Includes adjustable range stops to limit temperature adjustments.

Product Highlights

This thermostat is ideal for applications requiring precise temperature control. It is compatible with 4 pipe fan coil systems, facilitating automatic heat-cool changeover.

Product Information

Standard Information

• Brand: Resideo
• MPN: T4039M1004

Technical Specifications

• Application: 4 Pipe Fan Coil, Automatic Heat-Cool Changeover
• Operating Voltage: 120 to 277 Vac
• Temperature Range: 55 °F to 95 °F (13 °C to 35 °C) marked COOL-WARM
• Humidity Range: 5 to 95% RH, Non-Condensing
• Dimensions: 4-5/8 H x 4-15/16 W x 1-5/16 D
• Mounting Type: 4 Square Outlet Box or 2-Ganged Outlet Box
• Changeover Type: Automatic
• Switch Position (Fan): HI-MED-LO
• Switch Position (System): ON-OFF
