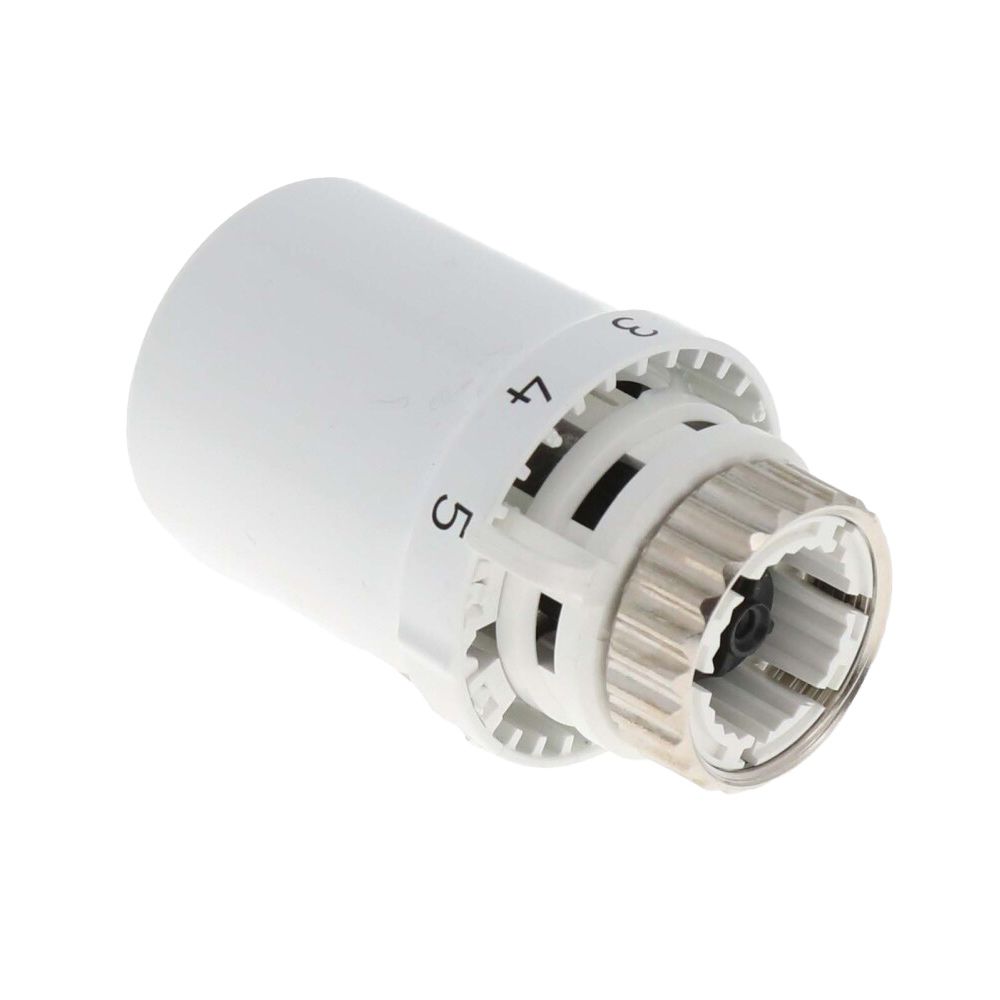

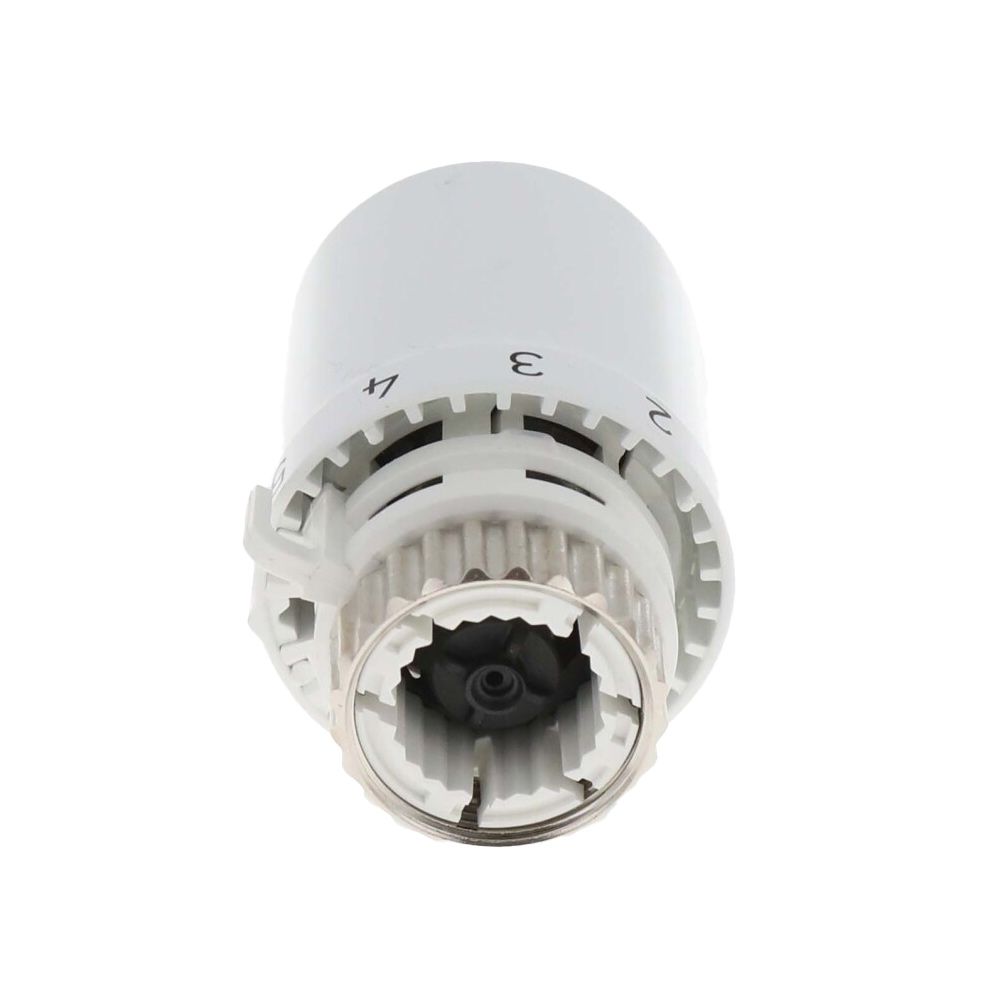

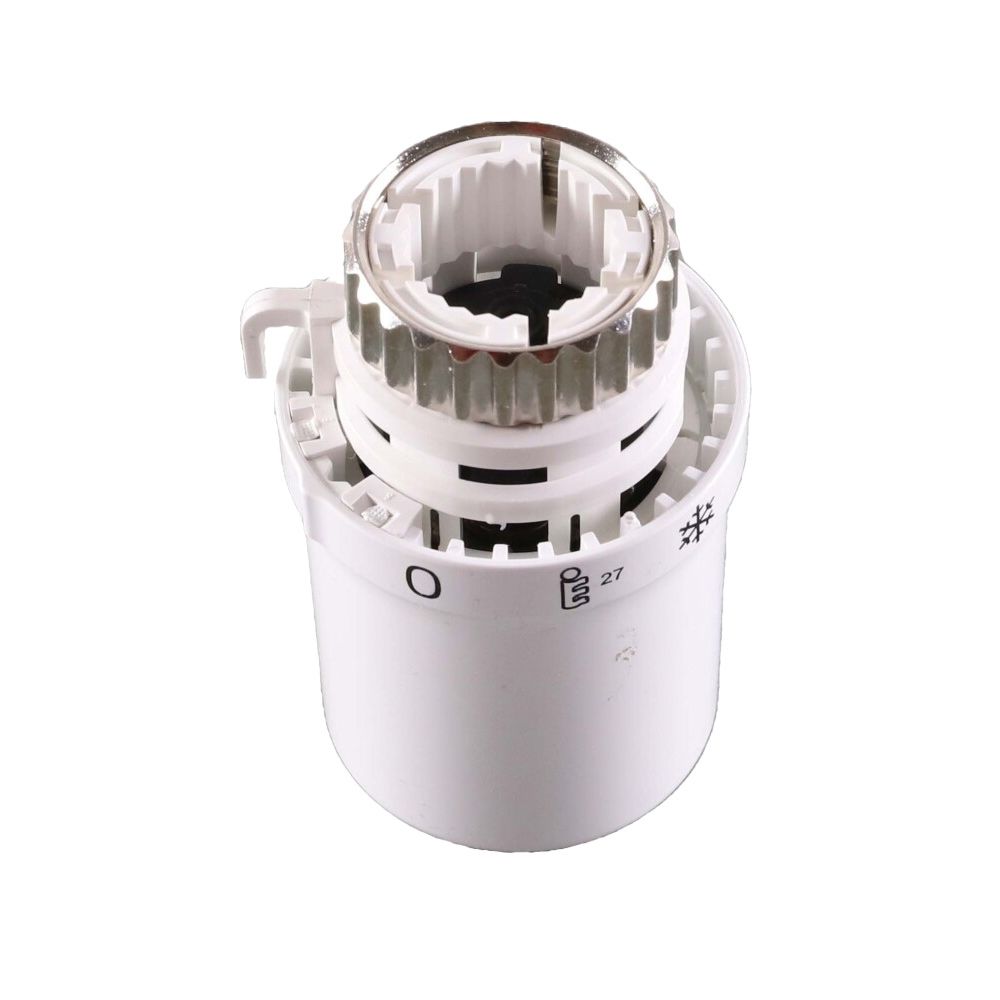

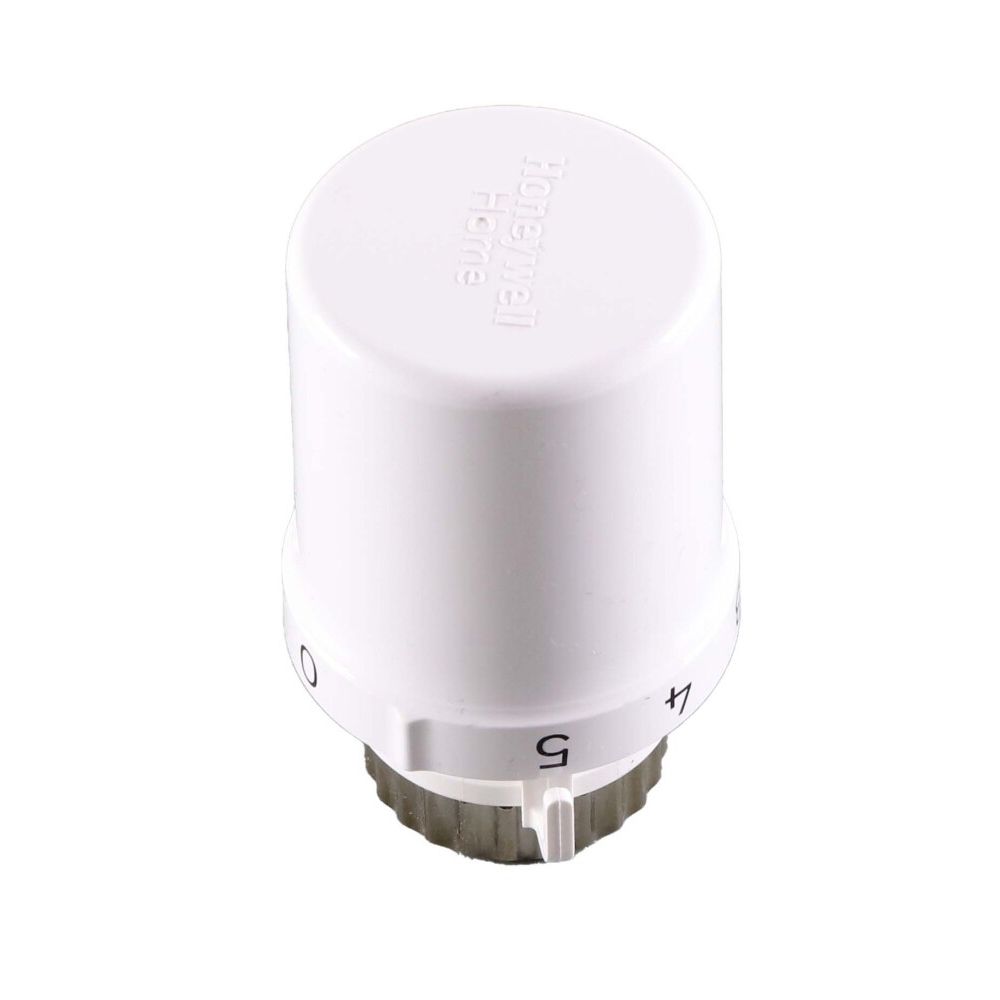

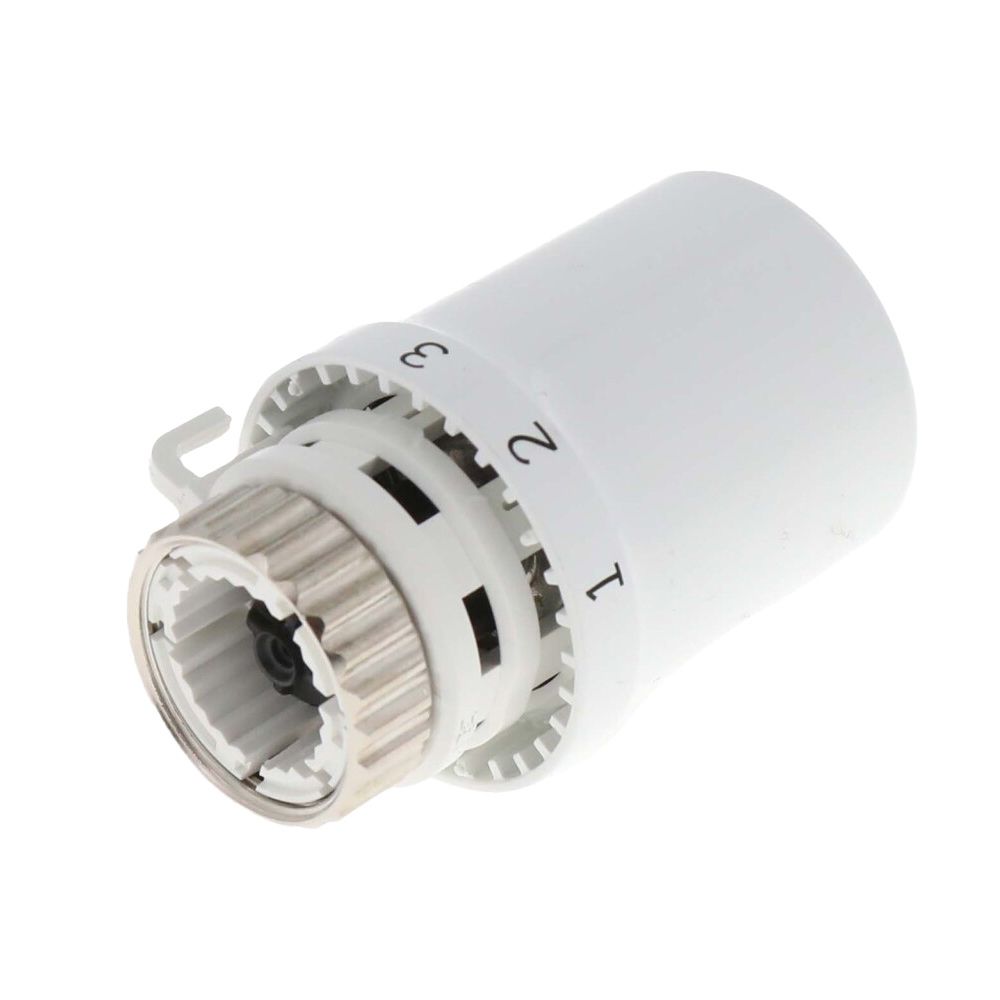

Resideo T3019W0NA Direct-Mount Operator for V100 Thermostatic Radiator Valves

Product Description

The Resideo T3019W0NA is a direct-mount thermostatic head operator designed for V100 series radiator valves. This self-contained control features a sensor, setpoint dial, and valve actuator all in one unit. It is crucial to ensure proper installation by avoiding enclosed spaces that restrict airflow around the sensor. This device efficiently regulates temperature to provide comfort and control in heating systems.

• Product application: Direct-mount for V100 and V2000 radiator valves
• Adjustable temperature range: 34-82°F
• Constructed for easy installation with threaded connections

Product Highlights

The Resideo T3019W0NA is suitable for both home and commercial heating applications. It provides precise temperature control for effective energy management.

Product Information

Standard Information

• Brand: Resideo
• Model: Thera-6

Technical Specifications

• MPN: T3019W0NA
• Weight: 0.30 lbs
• Replaces: T1002W0NA
• Set Point Temperature Range: 34°F to 82°F
• Connection Type: Threaded Connections
• Used With: V100 and V2000 Radiator Valves
• Approvals & Standards: EN 215, Keymark
