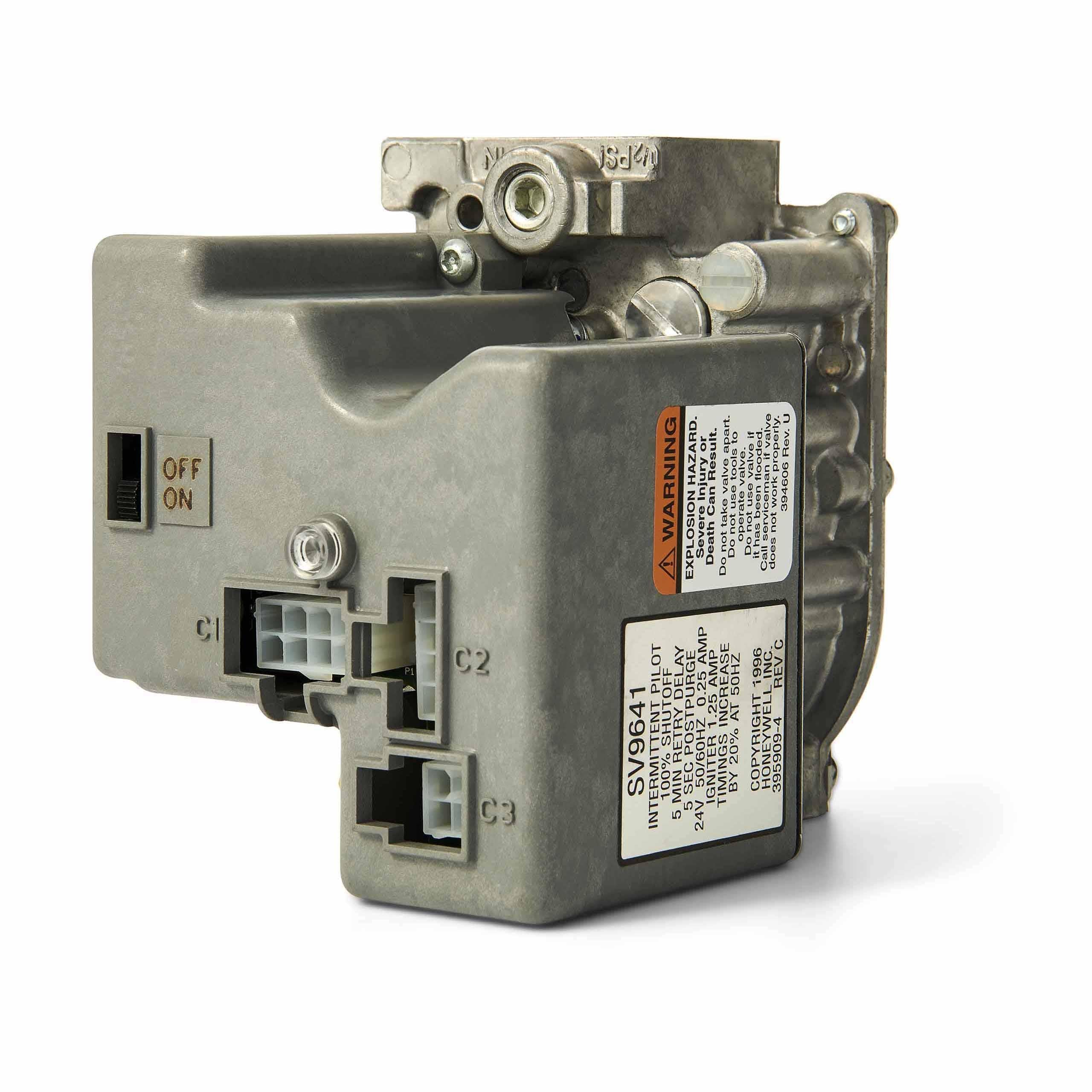

Resideo SV9641M4510/U Gas Valve SmartValve 3/4 in Intermittent Pilot Ignition

Product Description

The Resideo SmartValve SV9641M4510/U is a gas valve designed for precise flow control in heating systems. It features an intermittent hot surface pilot ignition system for reliable operation. This unit operates at a nominal capacity of 0.8 to 11.8 cubic meters per hour, making it suitable for various natural gas applications.

• 3/4 inch NPT connection type
• Temperature range: -40 to 175 degrees Fahrenheit
• Coil voltage: 24 VAC at 50/60 Hz

Product Highlights

This valve integrates gas flow control and electronic sequencing functions, ensuring efficient operation in conjunction with heating appliances. It monitors the airflow proving switch for safe operation and includes diagnostic features for easy troubleshooting.

Product Information

Standard Information

• Brand: Resideo
• Model Number: SV9641M4510/U

Technical Specifications

• Gas Type: Natural
• End Style: NPT
• Dimensions: 4.1 inches L x 3.2 inches W x 4.9 inches H
• Coil Voltage: 24 VAC 50/60 Hz
• Nominal Size: 3/4 inch
• Ignition Type: Intermittent Hot Surface Pilot
• Pressure Rating: 0.5 psi
• Nominal Capacity: 0.8 to 11.8 cu-m/hr
• Country of Origin: MX
• Temperature Rating: -40 to 175 degrees Fahrenheit
