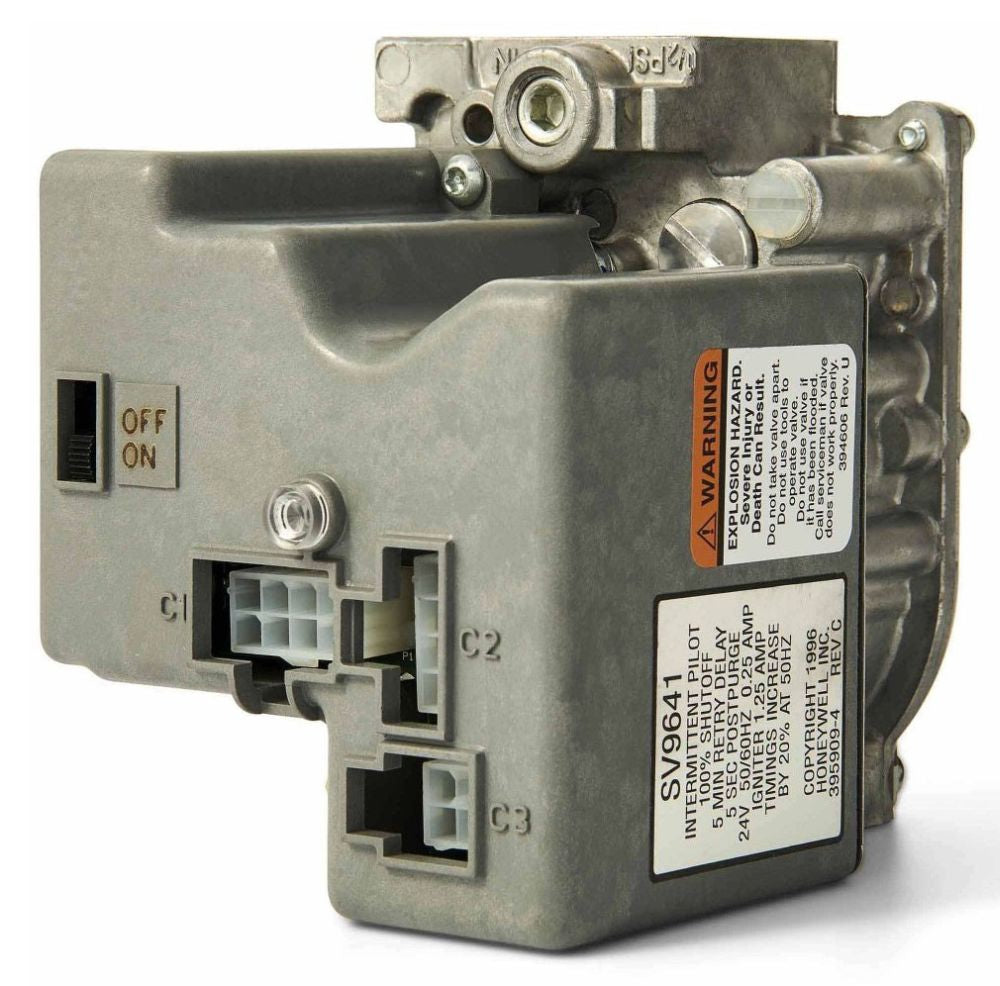

Resideo SV9641M4510/U Gas Valve Smart Valve Intermittent Pilot

Product Description

The Resideo SV9641M4510/U is an intermittent pilot gas valve designed for precise gas flow control. This smart valve is suitable for various heating systems including furnaces and boilers. It features a standard opening size of three-quarters inch NPT and is rated for up to one-half pounds per square inch pressure.

• Dimensions: Four point one inches length by three point two inches width by four point nine inches height
• Voltage Rating: Twenty-four volts AC at fifty to sixty hertz
• Ambient Temperature Rating: Minus forty to one hundred seventy-five degrees Fahrenheit

Product Highlights

This gas valve combines safety and efficiency features, ensuring reliable operation in heating applications. Its design allows for easy integration with existing systems.

Product Information

Standard Information

• Brand: Resideo
• Type: Intermittent Pilot

Technical Specifications

• Flame Failure Response Time: One point six seconds at three microamps
• Prepurge Time: Fifteen seconds
• Postpurge Time: Thirty seconds
• Ignition Source: Pilot
• Inlet/Outlet Size: Three-quarters inch threaded
• Approval: CSA
• Includes: Two three-quarters inch by one-half inch reducer bushings, natural to LP conversion kit, diagnostic LED
