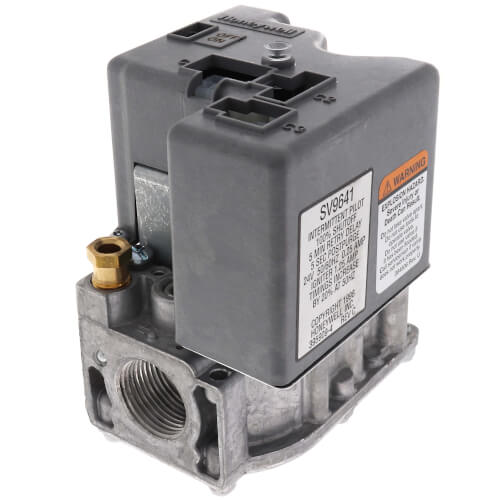

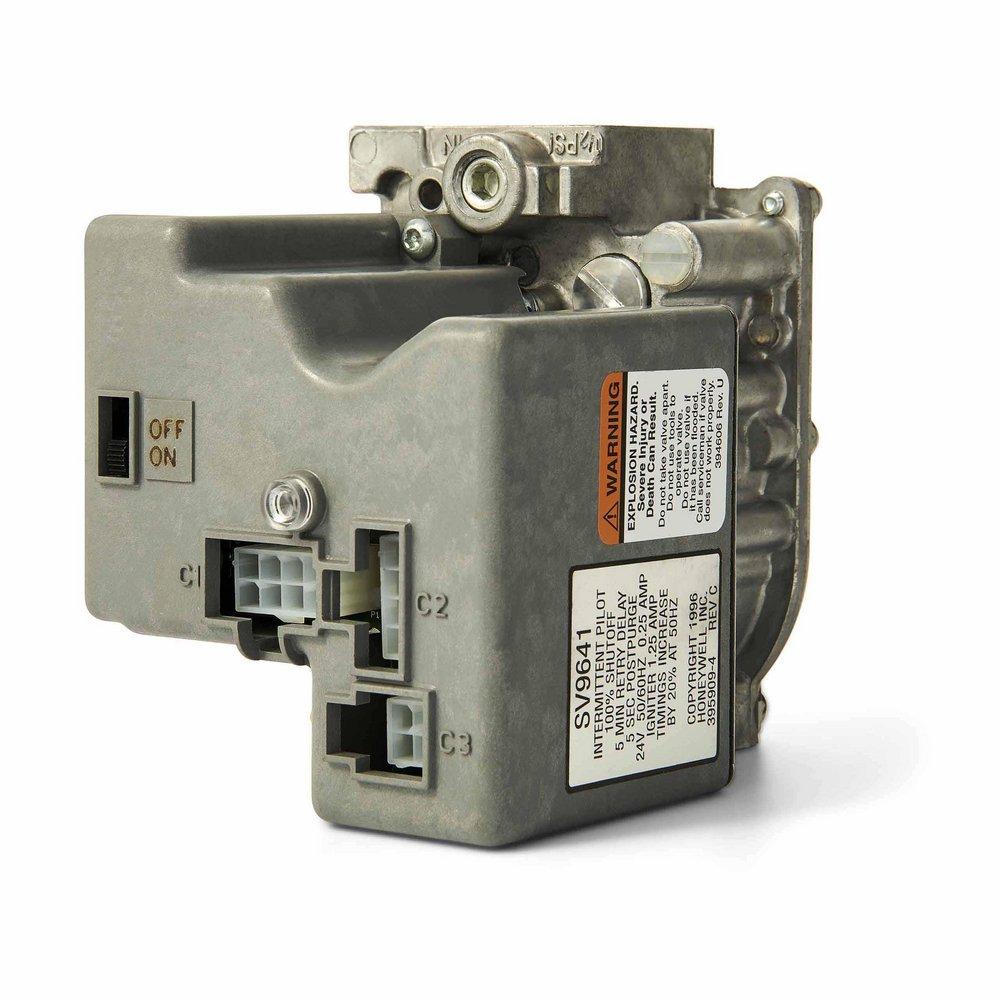

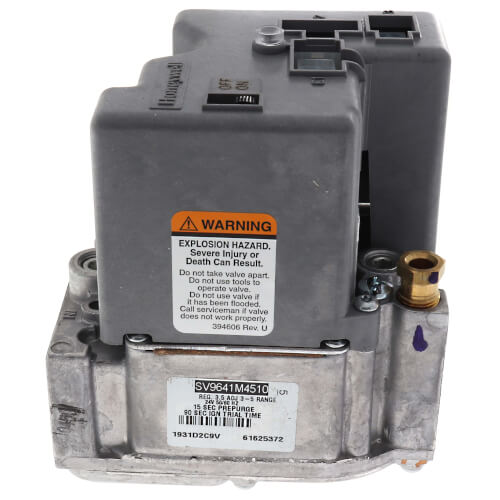

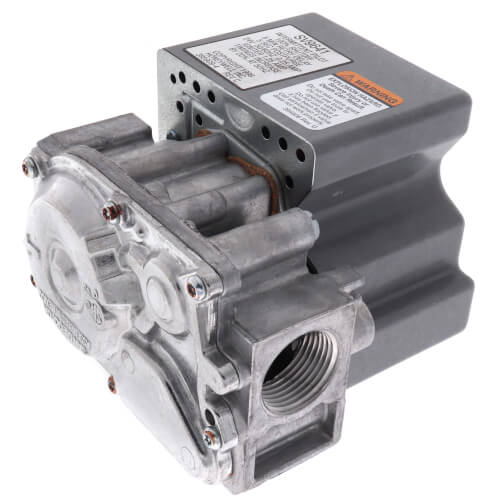

Resideo SV9641M4510 SmartValve Series Standard Opening 3/4 In Inlet x 3/4 In Outlet Intermittent Hot Surface Pilot Gas Valve With Comb Air Control - 24V

Product Description

The Resideo SV9641M4510 SmartValve Series is a standard opening gas valve with a 3/4 inch inlet and 3/4 inch outlet, designed for intermittent hot surface pilot ignition systems with comb air control. It operates on a 24V power supply and is suitable for various fan-assisted combustion gas-fired appliances such as furnaces, rooftop furnaces, boilers, unit heaters, infrared heaters, water heaters, and commercial cooking appliances.

• Standard opening gas valve
• Intermittent hot surface pilot ignition
• 3/4 inch inlet and outlet

Product Highlights

The SV9641M4510 communicates directly with an electronic fan timer and interfaces with power supplies and thermostats, ensuring compatibility with a range of heating applications. It does not provide a postpurge function when controlled by a thermostat as power is removed when the call for heat ends.

Product Information

Standard Information

• Brand: Resideo
• MPN: SV9641M4510
• Type: Smart Valve

Technical Specifications

• Voltage: 24V
• Inlet Connection: 3/4 inch
• Outlet Connection: 3/4 inch
• BTU: 335k BTU
• Fuel Type: Natural Gas
• Frequency: 50/60 Hz
• Ambient Temperature Range: -40 F to +175 F
• Pressure Regulator Setting: 3.5 in wc
• Body Pattern: Straight-through
• Maximum Capacity: 415 ft³/hr
• Minimum Capacity: 30 ft³/hr
• Pressure Tapping: 1/8 in. NPT
• Mounting: 0 to 90 degrees in any direction from the upright position
• Pilot Gas Outlet: Yes
• Flame Sense: Two Rod
• Ignition System Type: Intermittent Hot Surface Pilot Ignition
• Ignition Sequence: Intermittent Pilot
• Ignition Trial Time: 90 seconds
• Dimensions: 3.2 inches wide x 4.9 inches high x 4.1 inches long
