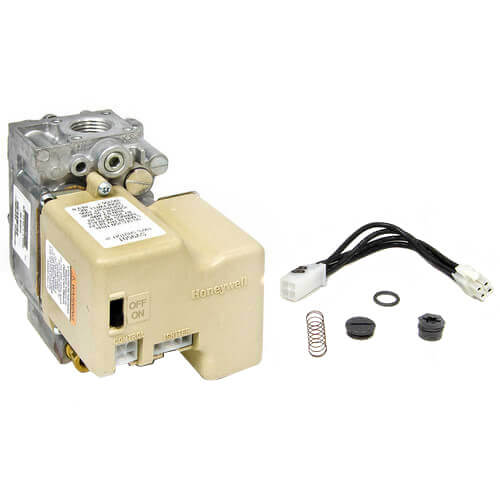

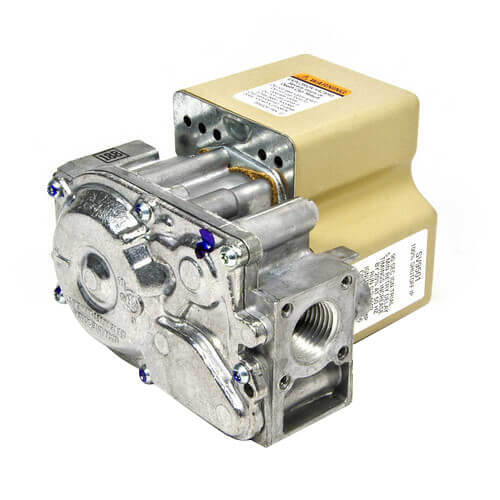

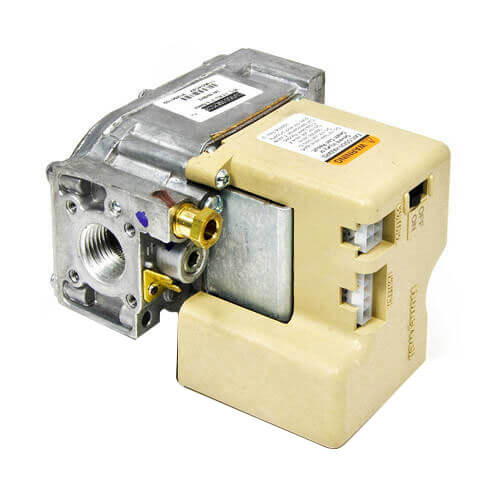

Resideo SV9602P4840 Intermittent Hot Surface Pilot Ignition SmartValve Control - Step Opening

Product Description

The Resideo SV9602P4840 SmartValve System offers advanced gas flow control and electronic intermittent pilot sequencing within a single unit, designed for a vast array of gas-fired appliances. This control system features a straight-through body pattern and step opening characterized by a pressure regulator setting that transitions smoothly from a full rate of 10.0 in. wc to a step setting of 1.4 in. wc. Delivering efficiency in continuous retry ignition trials and a 90-second ignition trial time, it ensures reliability and performance.

• Combines gas flow control and pilot sequencing in one unit.
• Suitable for numerous applications including furnaces and water heaters.
• Designed for either propane or natural gas.

Product Highlights

This ignition system is compatible with a control voltage of 24 Vac and operates within an ambient temperature range of -40 F to +175 F, making it suitable for diverse environmental conditions.

Product Information

Technical Specifications

• Dimensions: 3.2 in. wide x 4.9 in. high x 4.1 in. long
• Maximum Capacity: 415 ft³/hr
• Ignition Type: Intermittent Hot Surface Pilot
• Pressure Regulator Setting: Full Rate: 10.0 in. wc; Step Setting: 1.4 in. wc
• Body Pattern: Straight-through
• Mounting: Flexible mounting from 0 to 90 degrees in any direction.
