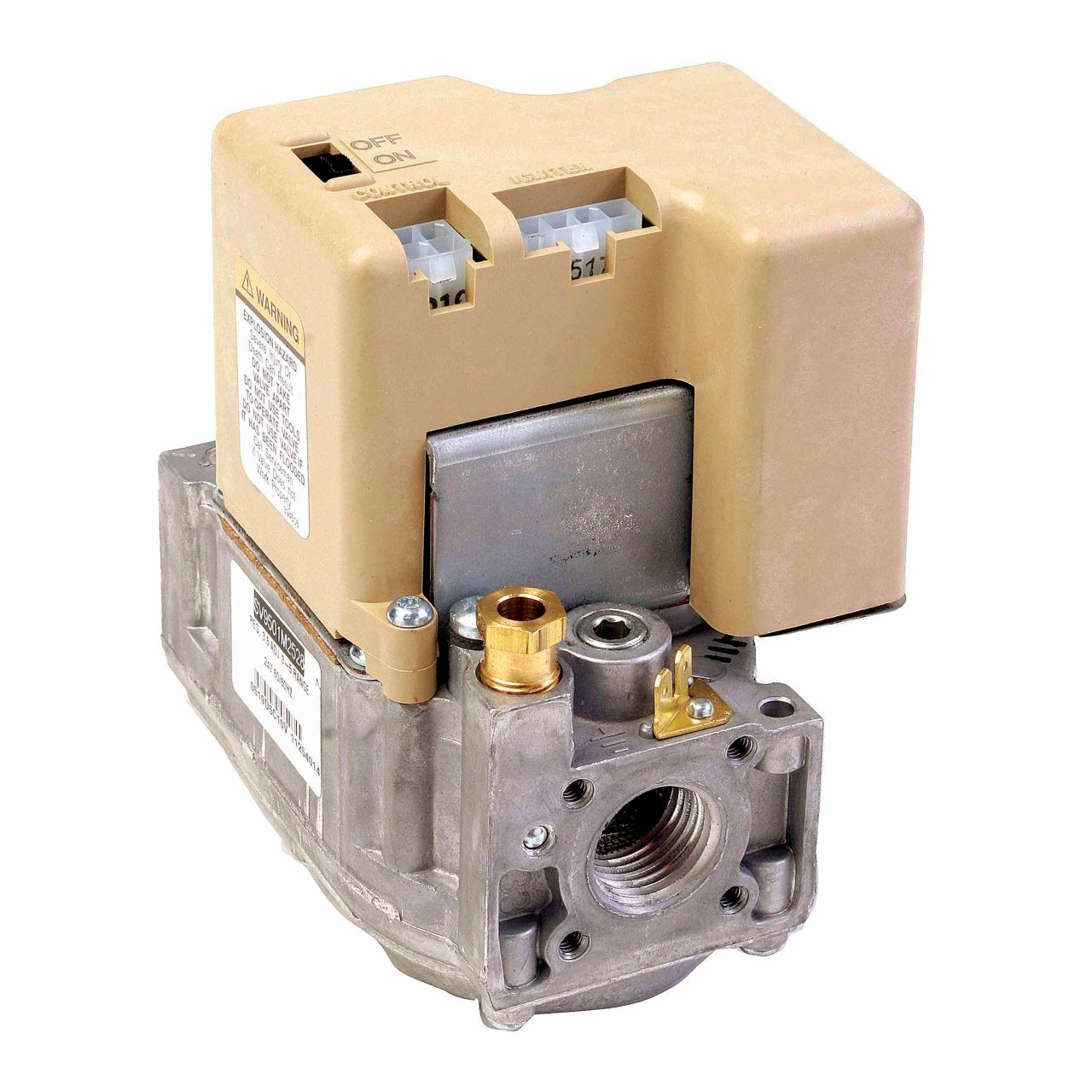

Resideo SV9602P4832/U Gas Valve Smart Valve SV9602 Intermittent Pilot Step Opening 1/2 Pounds Per Square Inch 3/4 Inch NPT

Product Description

The RESIDEO SV9602P4832/U Gas Valve is a smart valve designed for intermittent pilot operation in industrial and automation applications. It features a pilot step opening for precise gas flow control. This valve has a pressure range of 10.0 Inch WC to 2.5 Inch WC and a 3/4 Inch NPT connection for integration into existing systems. It operates within a temperature range of -40 to 175 degrees Fahrenheit, suitable for demanding environments like manufacturing, HVAC, and process automation.

• Intermittent pilot step opening for precise gas flow control
• Pressure range: 10.0 Inch WC to 2.5 Inch WC
• 3/4 Inch NPT connection for easy integration

Product Highlights

Reliable and efficient smart valve for industrial and automation applications.

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: SV9602P4832/U

Technical Specifications

• Pressure: 1/2 Pounds per Square Inch
• Includes: Two 3/4 in to 1/2 in Reducer Bushings, Extension Harness
• Compatible With: This system is suitable for application in a wide range of gas-fired appliances
• Certifications: CSA International: 112395, AGA IAS Certified: C2030017, CGA IAS Certified: C2030017, UL Approved: 98PSC00009
• Product Type: Gas Valve Smart Valve
• Application: Single-Stage Step Opening Valve with Intermittent Hot Surface Pilot Ignition
• Ignition Type: Intermittent Hot Surface Pilot Ignition
• Fuel Type: LPG
• Regulation Type: Step Opening
• Max Capacity: 415 ft³/hr, 11.8 m³/hr
• Min Capacity: 30 ft³/hr, 0.8 m³/hr
• Operating Voltage: 24 V AC
• Inlet Connection Size: 3/4 in
• Inlet Connection Type: NPT
• Outlet Connection Size: 3/4 in
• Outlet Connection Type: NPT
• Pressure Regulator Set Point: Full Rate: 10.0 in WC; Step Setting: 2.5 in WC, Full Rate: 2.49 kPa; Step Setting: 0.62 kPa
• Pressure Tap Connection Size: 1/8 in
• Pressure Tap Connection Type: NPT
• Ignition Trials To Lockout: Continuous Retry
• Valve Body Pattern: Straight Through
• Ambient Operating Temperature (Max): 175 °F, 79 °C
• Ambient Operating Temperature (Min): -40 °F, -40 °C
• Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
• Operating Frequency: 50 Hz, 60 Hz
