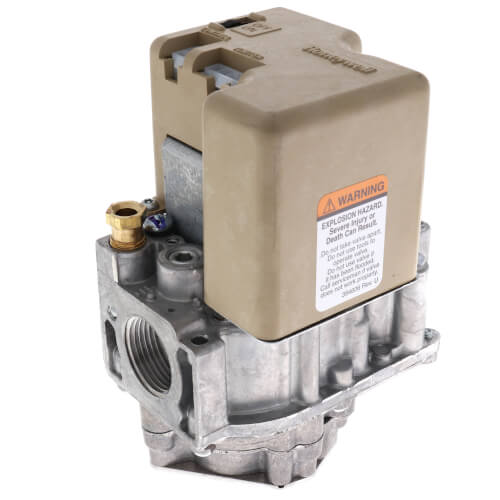

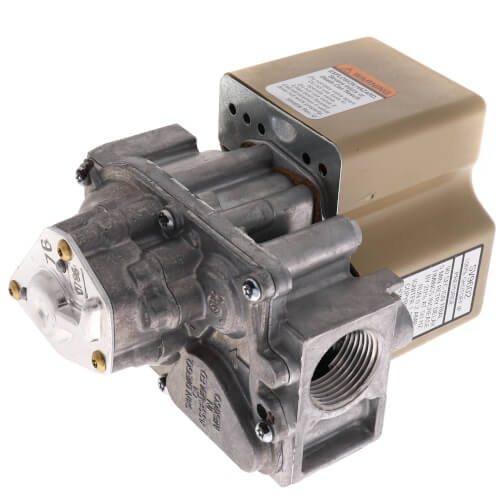

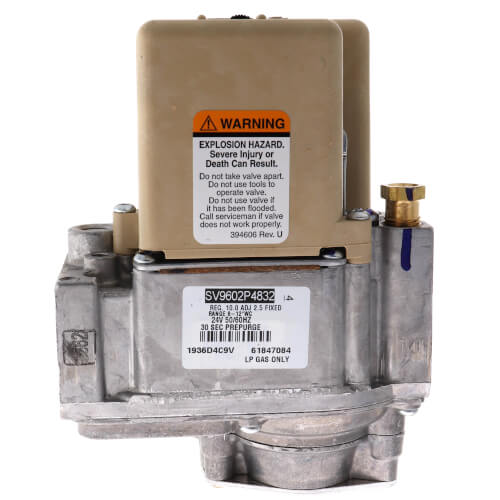

Resideo SV9602P4832 Intermittent Hot Surface Pilot Ignition SmartValve Control - Step Opening

Product Description

The Resideo SV9602P4832 is an Intermittent Hot Surface Pilot Ignition SmartValve Control designed for efficient gas flow control in various appliances. This product features a step opening mechanism and is suitable for a range of applications, including furnaces, water heaters, and commercial cooking units.

• Gas flow control combined with electronic intermittent pilot sequencing
• Compatible with a wide range of gas-fired appliances
• Designed for durability and efficient operation

Product Highlights

The Resideo SV9602P4832 is ideal for use in heating systems, providing reliable operation under varied conditions.

Product Information

Standard Information

• Brand: Resideo
• MPN: SV9602P4832

Technical Specifications

• Type of Gas: LP
• Ignition System Type: Intermittent Hot Surface Pilot Ignition
• Inlet/Outlet Size: 3/4 in. NPT x 3/4 in. NPT
• Flame Failure Response Time: 1.6 sec @ 3 µA
• Ambient Temperature Range: -40 F to +175 F
• Control Voltage: 24 Vac, 60 Hz
• Maximum Capacity: 415 ft³/hr
• Dimensions: 3.2 in. wide x 4.9 in. high x 4.1 in. long
