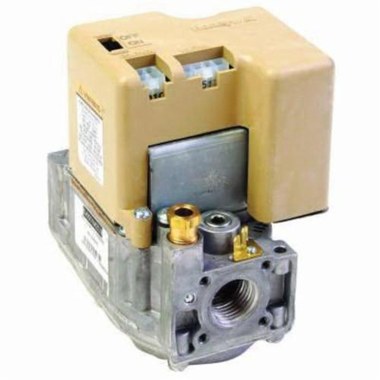

RESIDEO SV9601M4571/U Gas Valve Smart Valve SV9601 Standard Opening Intermittent Pilot NP PrePurge 3/4 Inch NPT

Product Description

The RESIDEO SV9601M4571/U Gas Valve is designed to control gas flow with precision. This smart valve features a standard opening intermittent pilot design. It supports efficient operation for industrial automation systems.

• NP pre-purge functionality for safe ignition
• Durable construction for long-lasting performance
• Compact design suitable for tight spaces

Product Highlights

Offers safe and efficient gas flow control in demanding applications.

Product Information

Standard Information

• Brand: RESIDEO
• Part Number: SV9601M4571/U

Technical Specifications

• Connection Size: 3/4 inch NPT
• Operating Pressure: Up to 1/2 pounds per square inch
• Temperature Range: -40 to 175 degrees Fahrenheit
• Type: Gas Valve
• Valve Design: Intermittent Pilot
• Includes: LP Conversion Kit, Two 3/4 inch to 1/2 inch Reducer Bushings
• Certifications: CSA International: 112395, UL Approved: 98PSC00009
