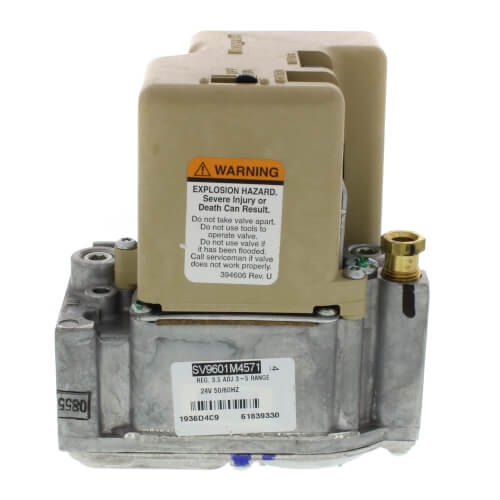

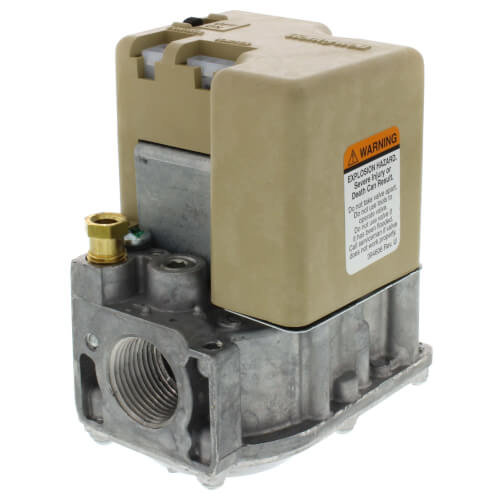

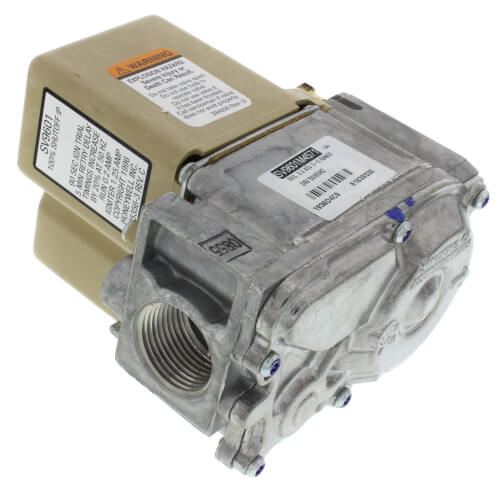

Resideo SV9601M4571 Gas Valve Smart Valve System Intermittent 24 VAC SV9601M4571

Product Description

The Resideo SV9601M4571 SmartValve system integrates gas flow control with electronic intermittent pilot sequencing. This unit is designed for various gas-fired appliances including furnaces, boilers, and commercial cooking units. It regulates system operations with precision and reliability.

• Includes LP conversion kit and reducer bushings for installation flexibility.
• Designed for natural gas with a standard opening and adjustable pressure settings.
• Supports a wide ambient temperature range, making it suitable for diverse environments.

Product Highlights

Engineered for efficiency and reliability, the SmartValve system provides a seamless operation of gas-fired appliances, enhancing safety and performance. Its step opening ignition system ensures reduced gas flow until the pilot is proven, contributing to operational safety and cost efficiency.

Product Information

Standard Information

• Brand: Resideo
• Type: Smart Valve
• Voltage: 24 VAC
• Ignition Type: Hot Surface

Technical Specifications

• Fuel Type: Natural/LP Gas
• Ignition Sequence: Intermittent Pilot
• Inlet/Outlet Connection: 3/4 inch NPT
• Pressure Settings: 3.5 in. wc
• Maximum Capacity: 415 ft³/hr at 1 psi drop
