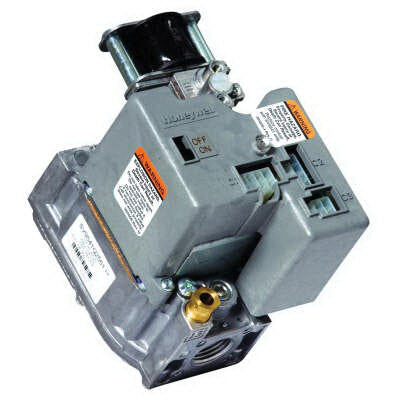

RESIDEO SV9541Q2561/U Gas Valve Smart Valve SV9541 Standard Opening Intermittent Pilot 1/2 Inch NPT

Product Description

The SV9541 Standard Opening Intermittent Pilot Gas Valve from RESIDEO is a durable valve designed for performance across various applications. This smart valve features a standard opening intermittent pilot for efficient operation. It utilizes a two-stage design allowing precise control over gas flow.

• 1/2 inch NPT connection for straightforward installation.
• Temperature range of -40 to 175 degrees Fahrenheit for versatile use.
• Constructed for demanding environments, including HVAC systems and commercial buildings.

Product Highlights

The SV9541 delivers consistent performance in industrial automation settings, making it suitable for various applications.

Product Information

Standard Information

• Brand: RESIDEO
• MPN: SV9541Q2561/U

Technical Specifications

• Item Number: SV9541Q2561/U
• Type: Two-stage Intermittent Hot Surface Pilot Ignition
• Inlet Connection: 1/2 x 1/2 inches
• Flame Failure Response Time: 1.6 seconds maximum at 2 µA
• Approvals and Standards: CSA International: 112395
